SU 100 RESURRECTION..3RD GUARDS, BELORUSSIAN FRONT , 1945

This section is for builds that are not strictly Tamiya or Heng Long. For instance, replacing the electronics from a WSN or Matorro, or even a scratch-build.

Postby HERMAN BIX » Fri Jun 17, 2022 8:53 am

viewtopic.php?f=23&t=25372&p=264242#p264242

Well folks, I thought I was done for a while with new projects, thought now was a good time to tidy up a few others, do a bit of tank-housecleaning, perhaps improve a few things on others.......................
:problem: NOPE

Mr Caster had this on the go a while back, and in my own true M.O. I nagged him to let me at it until he said yes :haha:
So just to make the annoying & very petulant child shut up, he sent it.
Now Mr caster was very concerned with ensuring the box was right, the thing was packed safe, and nothing could possibly go wrong..........
Box was sturdy, plenty of styrofoam packing and tape, but those are not rated for what it was subjected to :O
I can only assume that the airfreight company pushed it out of the hold before landing the plane rather than after !
In a word from my old country "Munted".

I will complete the disassembly process begun by the freight forwarders & let you all know once Im on with the forward movement on this.
A trumpeter it will never be, but Im stoked to get a hold of it & perhaps finish the vision that Mr Caster had.
User avatar
HERMAN BIX
Colonel

Posts: 8544
Joined: Sun Jan 12, 2014 1:15 am
Location: Gold Coast,Australia

Postby HERMAN BIX » Fri Jun 17, 2022 11:24 pm

Upper hull as it came out of the box.
They only piece I have taken off is the saw.
One of the drive sprocket clusters was also busted off the side of the hull.
T34 chassis are available and cheap here, plus I had one already for some eventual project which turned out to be this one !
Attachments
User avatar
HERMAN BIX
Colonel

Posts: 8544
Joined: Sun Jan 12, 2014 1:15 am
Location: Gold Coast,Australia

Postby HERMAN BIX » Sat Jun 18, 2022 12:28 am

This is what its going to be................

"Immediately apparent are the varied markings on the hull side. In addition to the tactical numbers, the slogan “20 Years of Soviet Uzbekistan” is barely discernible, a reference to Uzbekistan’s integration into the Soviet Union in 1924 and to its citizens, whose sacrifice and hard work had paid for this and other tanks that bore the slogan.

Ivan Antonovich Vovchenko, Commanding General of the Soviet 3rd Guards Tank Corps, recalled the arrival of the Uzbek-funded tanks in his memoirs:

“In the forests of Smolensk our unit received new tanks. On the turret, each of them had the inscription “20 Years of Uzbekistan” and the emblem of the Uzbek SSR. I went to the place where the tankers took the new vehicle, and saw Major Ayrametova, the commander of the Health Battalion. The Major touched the letters and coat of arms and I understood his excitement as this big tank column was built with money collected by the workers of Uzbekistan. News of the arrival of the machines quickly spread through the division, and soon two Uzbek tank drivers came running . . "
Attachments
note the use of STG 44's
User avatar
HERMAN BIX
Colonel

Posts: 8544
Joined: Sun Jan 12, 2014 1:15 am
Location: Gold Coast,Australia

Postby PainlessWolf » Sat Jun 18, 2022 12:33 am

Herman!
Following along of course. ;0) As for the condition of your package upon arrival, I sometimes wonder if Shipping Agents are taking small revenge upon people who can still afford to have fun things shipped to them.
regards,
Painless
User avatar
PainlessWolf
Lieutenant-Colonel

Posts: 7210
Joined: Sun Feb 26, 2012 10:09 pm
Location: Southern Colorado Rocky Mountains

Postby c.rainford73 » Sat Jun 18, 2022 12:56 am

Herman I will be watching this one closely, it's a favorite of mine :clap:
User avatar
c.rainford73
Major

Posts: 5968
Joined: Thu Aug 25, 2016 7:34 pm
Location: Connecticut USA

Postby Herr Dr. Professor » Mon Jun 20, 2022 7:30 pm

Here goes the Bix! CHAARRGE!
User avatar
Herr Dr. Professor
Warrant Officer 2nd Class

Posts: 1485
Joined: Mon Apr 22, 2019 10:48 pm
Location: Southern Wisconsin USA

Postby Markocaster » Mon Jun 20, 2022 11:45 pm

Very disappointed it didn’t arrive in one piece
I am sure in your talented hands it will rise from the ashes.
Looking forward to seeing it transform
Mark


Sent from my iPhone using Tapatalk
User avatar
Markocaster
Staff Sergeant

Posts: 970
Joined: Mon Mar 31, 2014 11:16 pm
Location: Bay Area , California

Postby Kaczor » Tue Jun 21, 2022 6:47 am

Nice! SU-100 was my dad's favorite self-propelled gun. He built two 1:10 models from scratch in the late 80s and early 90s.
Attachments
User avatar
Kaczor
Warrant Officer 2nd Class

Posts: 1036
Joined: Fri May 18, 2018 9:58 am
Location: Ciechanow, Poland

Postby HERMAN BIX » Tue Jun 21, 2022 11:26 am

PainlessWolf wrote:Herman!
Following along of course. ;0) As for the condition of your package upon arrival, I sometimes wonder if Shipping Agents are taking small revenge upon people who can still afford to have fun things shipped to them.
regards,
Painless



It sure looked like it when I saw it at home.
One end was crushed.
A bit like squeezing a tube of toothpaste with the cap still on .
User avatar
HERMAN BIX
Colonel

Posts: 8544
Joined: Sun Jan 12, 2014 1:15 am
Location: Gold Coast,Australia

Postby HERMAN BIX » Tue Jun 21, 2022 11:27 am

c.rainford73 wrote:Herman I will be watching this one closely, it's a favorite of mine :clap:



I reckon I have a thing for tank destroyers too !
User avatar
HERMAN BIX
Colonel

Posts: 8544
Joined: Sun Jan 12, 2014 1:15 am
Location: Gold Coast,Australia

Postby HERMAN BIX » Tue Jun 21, 2022 11:28 am

Herr Dr. Professor wrote:Here goes the Bix! CHAARRGE!



I appreciate your optimism sir !.
lets see how it goes. ;)
User avatar
HERMAN BIX
Colonel

Posts: 8544
Joined: Sun Jan 12, 2014 1:15 am
Location: Gold Coast,Australia

Postby HERMAN BIX » Tue Jun 21, 2022 11:30 am

Markocaster wrote:Very disappointed it didn’t arrive in one piece
I am sure in your talented hands it will rise from the ashes.
Looking forward to seeing it transform
Mark


Sent from my iPhone using Tapatalk


Well it arrived mate, and thats the main thing.
nothing is so broken that cannot be fixed, so it shall rise again & take a special place in my expanding collection !
User avatar
HERMAN BIX
Colonel

Posts: 8544
Joined: Sun Jan 12, 2014 1:15 am
Location: Gold Coast,Australia

Postby HERMAN BIX » Tue Jun 21, 2022 11:33 am

Kaczor wrote:Nice! SU-100 was my dad's favorite self-propelled gun. He built two 1:10 models from scratch in the late 80s and early 90s.


Thats a hell of an achievement Mr Kaczor, looks fantastic.
Are they still in working condition ?
User avatar
HERMAN BIX
Colonel

Posts: 8544
Joined: Sun Jan 12, 2014 1:15 am
Location: Gold Coast,Australia

Postby HERMAN BIX » Tue Jun 21, 2022 11:46 am

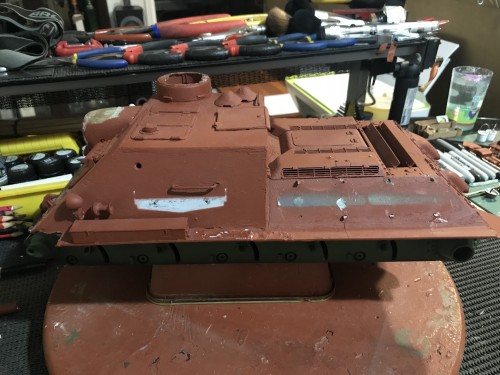

Well it doesn't look like much at the moment, but its cleaned up a lot.
Ive managed to get the upper located onto the new T34 lower, and all the grab handle mounting points cleaned out of broken material & the guards sorted out, and make up the casemate reinforcing gussets that strengthen the rear sides to the casemate rear wall which were missing.
Due to the method of retention of the roof hatches, I'm not keen to force them open.
I went over the plate edges & got flame cutting effects on.
The missing section of guard on the right side will be finished by making the crumpled section out of thin aluminium sheet as is seen in the period picture.
The auxiliary fuel tanks were very damaged, and had all the mounts snapped off, so I dug up some resin ones I never used on my SU152 project. I can use 3 of the 4 I need, so an empty space will likely be in order. That will be on the left rear position which is not visible in the period picture.
This could be getting a very worn out whitewash effect over the 4BO, not certain yet, but the picture and others of vehicles in the same unit at the time show many were whitewashed but not very well.

Commanders cupola & hatch covers next mission.

Hoping to get a few bits for the lower hull in a few days including steel gear box's and drive & idlers from a local supplier. Tracks will be a longer proposition, likely from Mr Forgebear ;)
Attachments
User avatar
HERMAN BIX
Colonel

Posts: 8544
Joined: Sun Jan 12, 2014 1:15 am
Location: Gold Coast,Australia

Postby Kaczor » Tue Jun 21, 2022 12:01 pm

HERMAN BIX wrote:Thats a hell of an achievement Mr Kaczor, looks fantastic.
Are they still in working condition ?

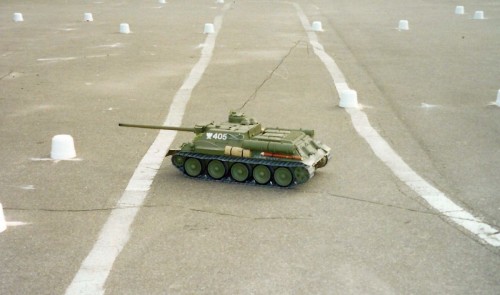

Unfortunately, they were sold many years ago to the US. Here after firing smoke screen:
