1945 Jagdtiger Tank Destroyer

This section is for builds that are not strictly Tamiya or Heng Long. For instance, replacing the electronics from a WSN or Matorro, or even a scratch-build.

Postby PainlessWolf » Sat Jan 09, 2021 2:00 am

Well, Santa had other plans this year besides new tracks for the Stuart. I was very surprised to find this long coveted AFV under the tree on Christmas morning. I was just beginning to seriously put the Jagdpanther Build from last Christmas together when this Monster showed up. I swiveled direction so fast I think I hurt myself. ;o) Seriously, tho', I am awaiting parts to turn the Jagdpanther into an IR version w\ flash and recoil and this IR Jagdtiger is already set and ready to go. It was from a fellow out in CA who had quite a few of these and I cannot fault Grifter as he found a great Deal for an unpainted one here in the States. I normally buy from Taigen for entire vehicles but they had been out of stock for some time. The vehicle arrived with a couple of faults. Broken rear deck ( where someone got happy trying to push and lock the deck down ) and a non working bow mg. The deck I had repaired solid the first day out of the box. Looking at why the deck would not lock down, I put a washer apiece on the catches to lengthen them an 1/8 of an inch and the deck lock issue was resolved as well. On the way to repairing the bow mg, I removed the stock speaker and replaced it with one of Maxxmekker's Specials. What a difference in sound! You can feel the surface it is sitting on vibrate with the bass undertones of the idling Maybach. ;o) The bow mg had two issues, a suspicious looking melted area on the wires and someone at the manufacturer had put too short a length of fiber optic line in the barrel and it was not touching the bulb. I had originally thought, "Hey it is a plug in unit." "Just buy another" Easier said than done. Chatting with Dave from Forgebear, I got useful information and decided to just repair it myself ( It was during the fix that discovered the skimpy fiber optic cable issue ). The Smoker output was anemic as well but a closer examination showed how someone at the factory ( same guy?) had tied the exhaust tubing together under the catch for the upper deck and kinked both sides off. New tubing resolved that issue and the Smoker is working much better. So, aside from some detailing and picking a paint scheme I can move forward with this Detail Build. I cannot find a working Barrel Lock nor rear Deck MG so garnering some inspiration from an elder Matorro Jagdtiger Build by Jim Bob Wan, I think I can put the existing parts to work with movement. So without further babbling from me, Here We Go!
regards,
Painless

Pics: ( Click to Enlarge )
Attachments

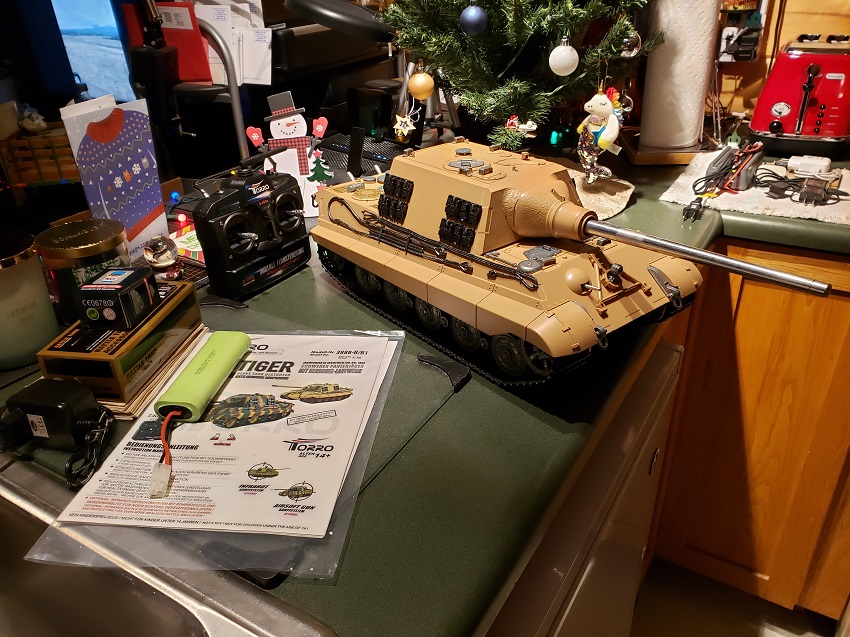

Apparently I was a Good Boy.jpg
Apparently I was a Good Boy.jpg

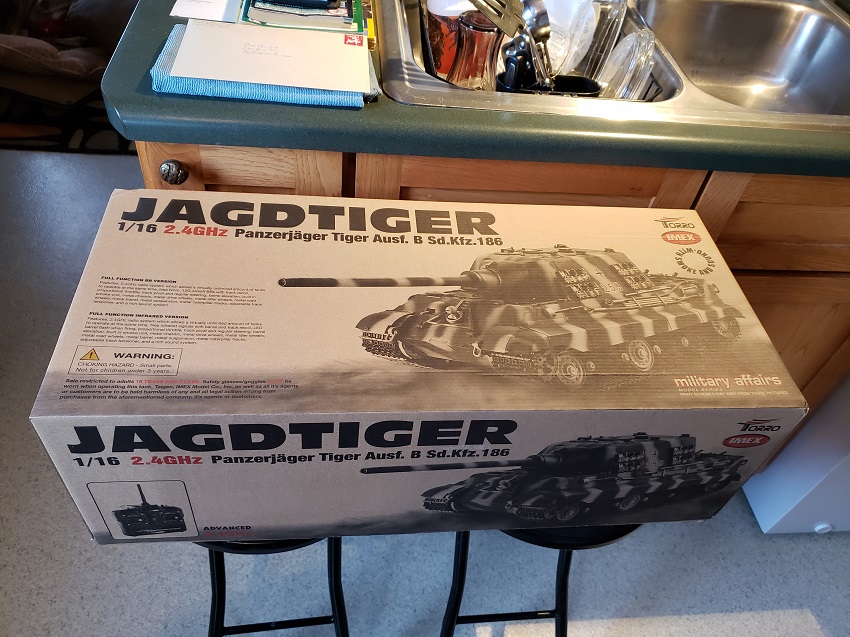

Securely packed from California.jpg
Securely packed from California.jpg

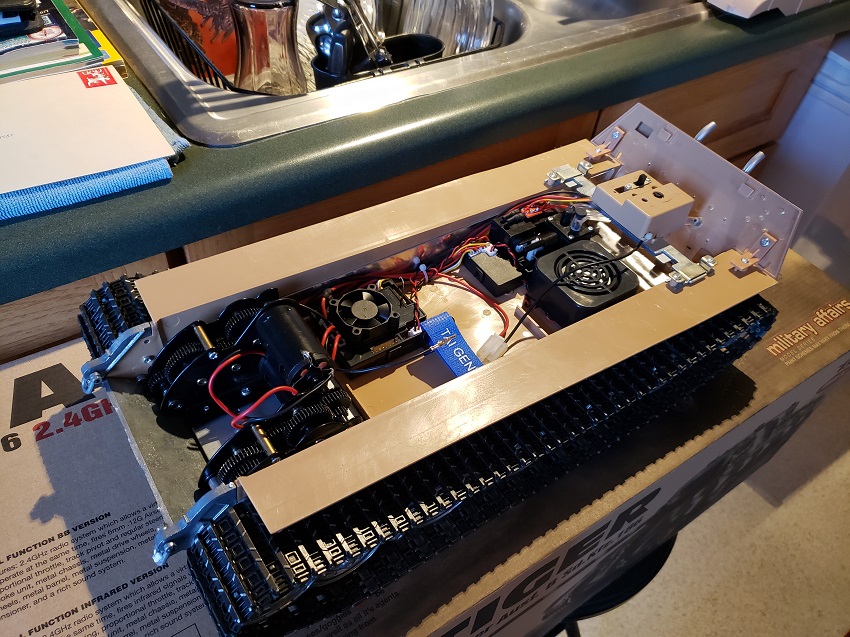

Solid lower and well laid out....jpg
Solid lower and well laid out....jpg
Upper had a breakage issue but not beyond repair.jpg
Upper had a breakage issue but not beyond repair.jpg

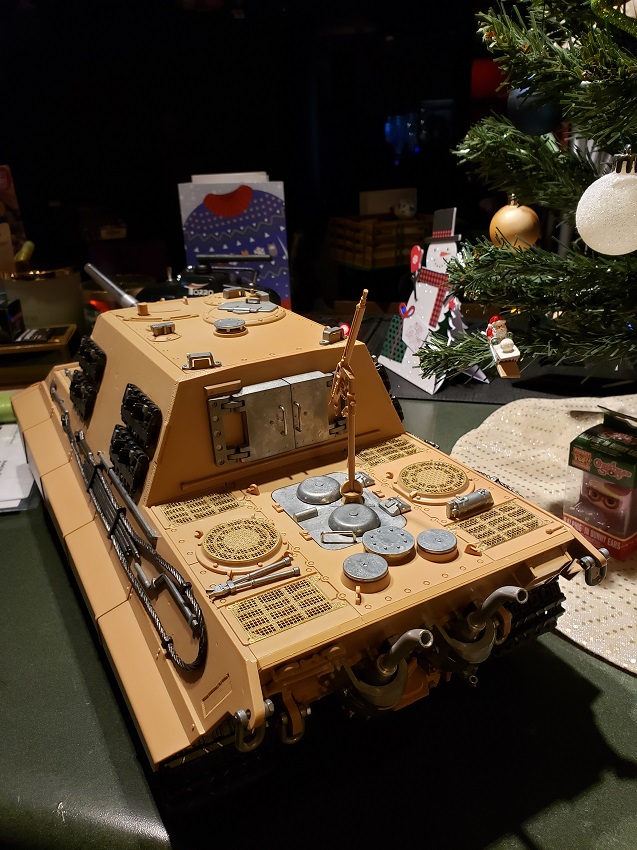

You would have to examine the rear deck closely to see the issue after repair.jpg
You would have to examine the rear deck closely to see the issue after repair.jpg

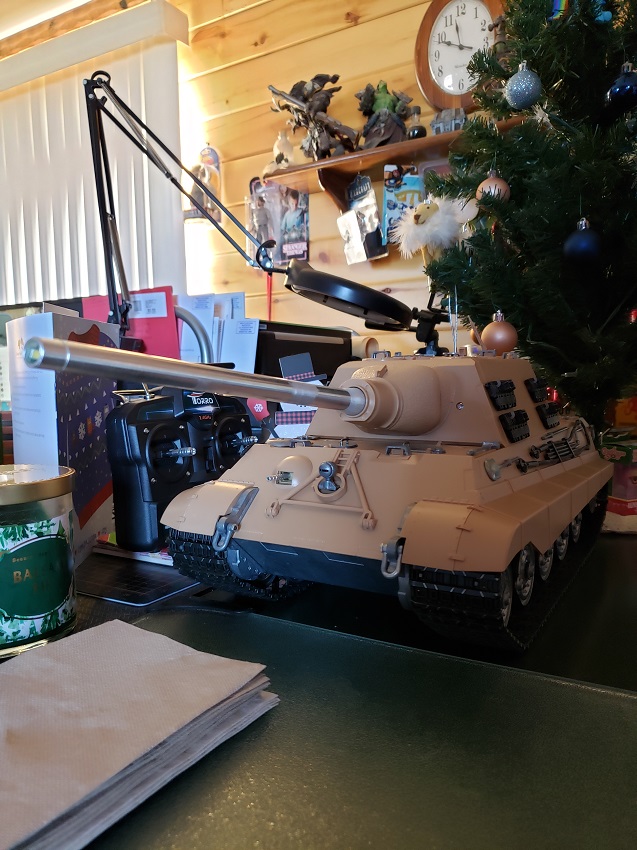

A quick run to test the functions reveals no active led on the bow mg.jpg
A quick run to test the functions reveals no active led on the bow mg.jpg
Smoker is feeble as well...an easy fix with new uncrimped tubing.jpg
Smoker is feeble as well...an easy fix with new uncrimped tubing.jpg

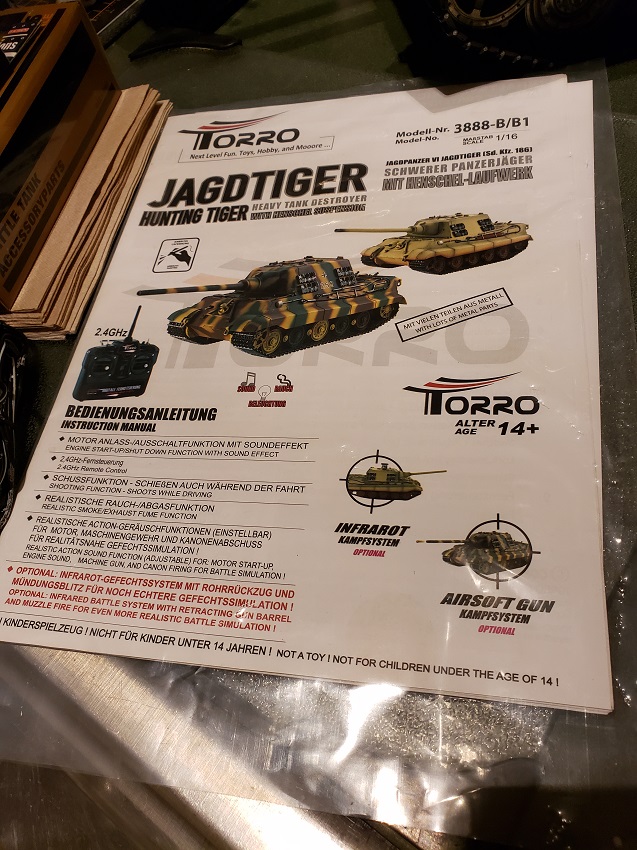

Literature in German from Torro.jpg
Literature in German from Torro.jpg
Stock Wiring Photo A.jpg
Stock Wiring Photo A.jpg
Stock Wiring Photo B.jpg
Stock Wiring Photo B.jpg
User avatar
PainlessWolf
Lieutenant-Colonel

Posts: 6825
Joined: Sun Feb 26, 2012 10:09 pm
Location: Southern Colorado Rocky Mountains

Postby PainlessWolf » Sat Jan 09, 2021 2:03 am

Continued:
Pics: ( Click to Enlarge )
Attachments

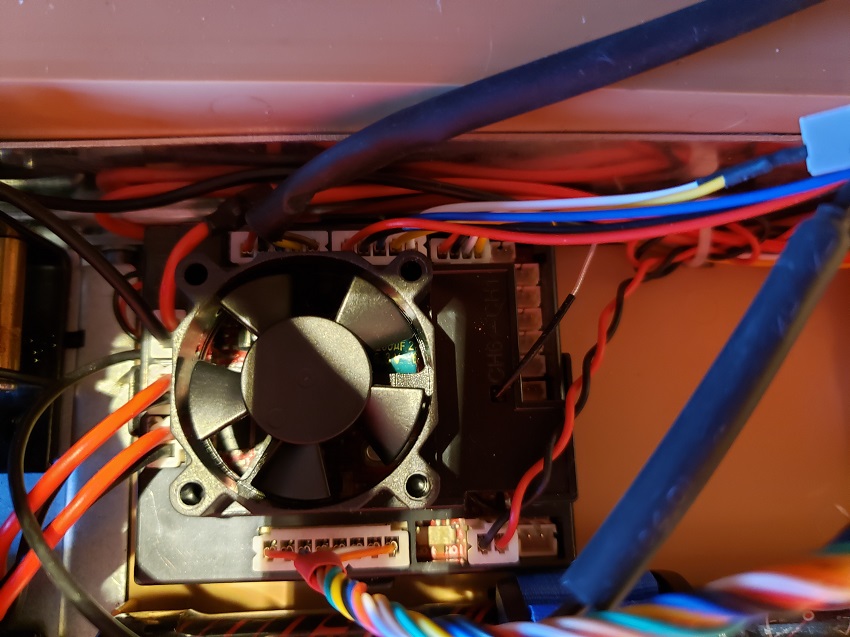

New style Daughter board.jpg
New style Daughter board.jpg
Solid mg mount and excellent gears are stock.jpg
Solid mg mount and excellent gears are stock.jpg

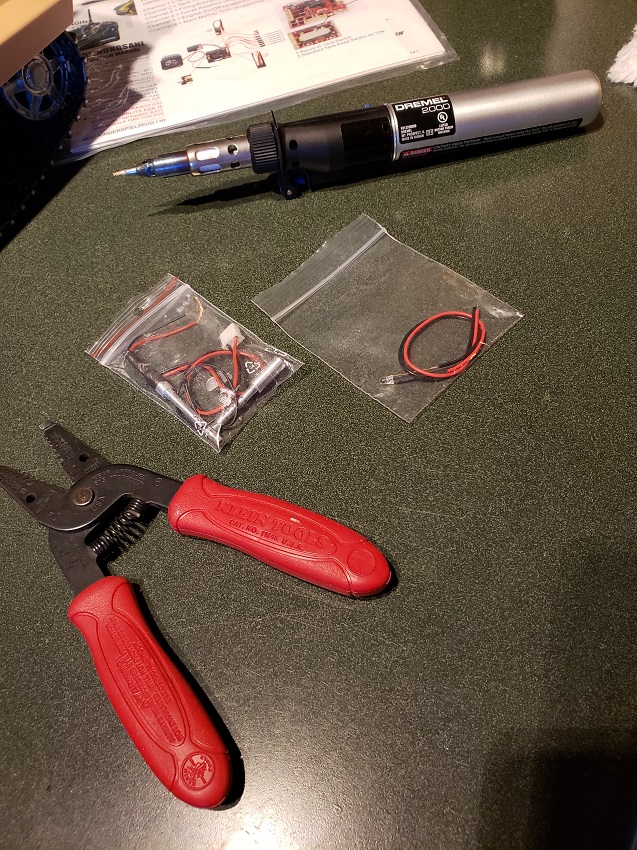

Failing to locate a spare bow mg..,Time to repair the original....jpg
Failing to locate a spare bow mg..,Time to repair the original....jpg

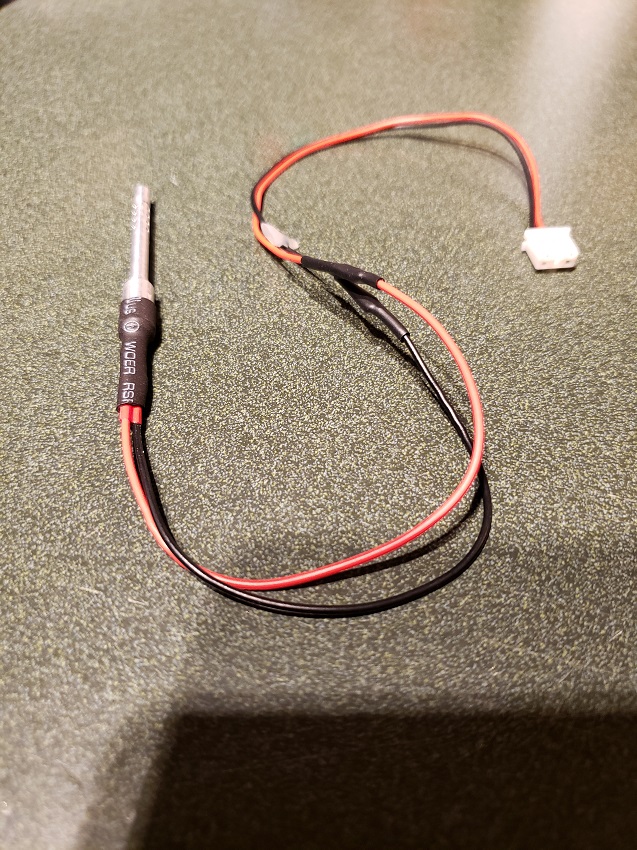

Better than new.jpg
Better than new.jpg
Everything mounted an secured.jpg
Everything mounted an secured.jpg

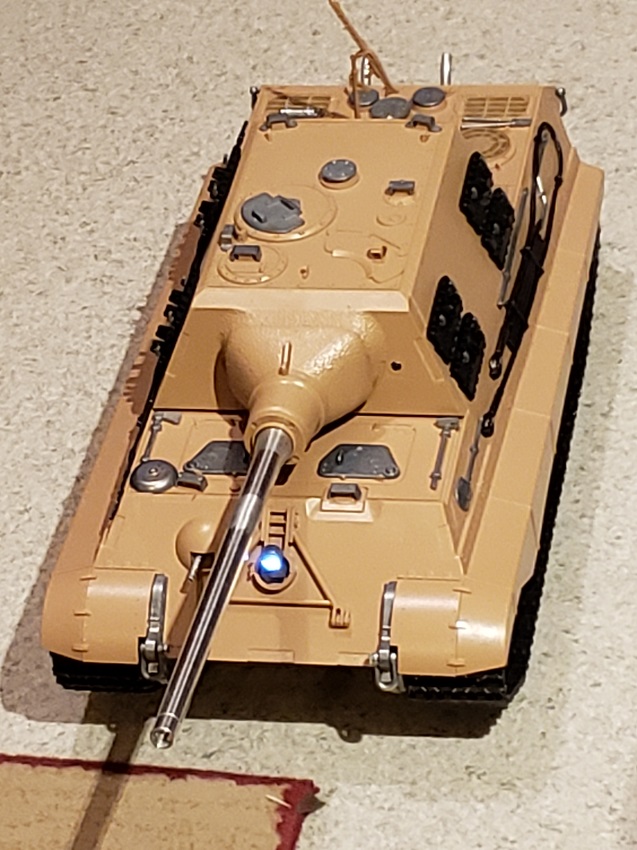

Tested and working....jpg
Tested and working....jpg
User avatar
PainlessWolf
Lieutenant-Colonel

Posts: 6825
Joined: Sun Feb 26, 2012 10:09 pm
Location: Southern Colorado Rocky Mountains

Postby sassgrunt » Sat Jan 09, 2021 5:42 am

What a great Christmas present! One of the nice things about having a factory-made Jagdtiger, is not having to try and "stretch" a Tamiya King Tiger aluminum lower hull. I am sure you will create another masterpiece with this one!

sassgrunt
Sergeant

Posts: 599
Joined: Wed Oct 29, 2008 10:08 am
Location: Hawaii, USA

Postby HERMAN BIX » Sat Jan 09, 2021 6:10 am

Oh and I can vouch for not having to go through that streeeeetching of the lower !!
Mr Jackalope and myself managed to get those barrel supports(different types) from Europe, have a sniff around our old threads mate, you will surely be reminded of where to look perhaps?
A nice blank canvass to work with :thumbup:
User avatar
HERMAN BIX
Lieutenant-Colonel

Posts: 7108
Joined: Sun Jan 12, 2014 1:15 am
Location: Gold Coast,Australia

Postby PainlessWolf » Sat Jan 09, 2021 7:39 am

Mike!
I was pretty floored for sure. ;o) With this vehicle, I am going from early War to almost the last days in the European theater. The paint will be fun as well as coming up with the right crew and details.
regards my Friend,
Painless!
User avatar
PainlessWolf
Lieutenant-Colonel

Posts: 6825
Joined: Sun Feb 26, 2012 10:09 pm
Location: Southern Colorado Rocky Mountains

Postby PainlessWolf » Sat Jan 09, 2021 7:41 am

Herman!
Thank you for looking in! This vehicle is huge and will be a lot of modeling and detailing fun! Thank you for the reminders about the earlier Builds. I was going to follow along on Jim Bob's ideas but I am not afraid to save some time and spend a few dollars instead. As I get older, I know that Time is the most valuable thing of all.
regards,
Painless
User avatar
PainlessWolf
Lieutenant-Colonel

Posts: 6825
Joined: Sun Feb 26, 2012 10:09 pm
Location: Southern Colorado Rocky Mountains

Postby Ad Lav » Sat Jan 09, 2021 8:47 am

Nice big TD to play with :)

Look forward to the progress.
User avatar
Ad Lav
Lieutenant

Posts: 3486
Joined: Tue Sep 01, 2009 4:44 pm
Location: Kent

Postby LordPanzer » Sat Jan 09, 2021 2:55 pm

Will certainly be following along to see the progress and what you do with this JT.

Sent from my SM-G970U using Tapatalk
User avatar
LordPanzer
Lance Corporal

Posts: 142
Joined: Mon Jul 27, 2020 2:15 am
Location: North Carolina

Postby 43rdRecceReg » Sat Jan 09, 2021 4:58 pm

I think Santa would have risked a hernia toting that around :O :thumbup: but what a really pleasant surprise present, Painless :thumbup:
I've always liked the distinctive touches found on Taigen models: the quick release mechanisms; the conveniently positioned combined switch blocks; superior hulls and much more besides.
In the coming weeks, I also anticipate seeing some of those trademark Painless refinements, and subtle enhancements that are so worthy of imitation. :thumbup: :wave:
Roy.
User avatar
43rdRecceReg
Major

Posts: 5474
Joined: Fri Jul 31, 2015 11:38 am
Location: North West Highlands, Scotland

Postby PainlessWolf » Sat Jan 09, 2021 9:56 pm

Adlav!
Good afternoon! I am looking forward to having some space to work with after the Pz IV. ;o)
regards,
Painless
User avatar
PainlessWolf
Lieutenant-Colonel

Posts: 6825
Joined: Sun Feb 26, 2012 10:09 pm
Location: Southern Colorado Rocky Mountains

Postby PainlessWolf » Sat Jan 09, 2021 9:57 pm

Lord Panzer!
Thank you for looking in. This will my first attempt at one of the black barrel AFVs from that time period. ;o)
regards,
Painless
User avatar
PainlessWolf
Lieutenant-Colonel

Posts: 6825
Joined: Sun Feb 26, 2012 10:09 pm
Location: Southern Colorado Rocky Mountains

Postby PainlessWolf » Sat Jan 09, 2021 10:00 pm

Roy!
Taigen \ Torro have a lot going for them. HL may be concentrating on improving their Electronics but Taigen is still leaps and bounds ahead on sound quality and general usability of the Tank. As for the detail job to follow. I will try to make it worthwhile! ;o)
Be Safe!
Painless
User avatar
PainlessWolf
Lieutenant-Colonel

Posts: 6825
Joined: Sun Feb 26, 2012 10:09 pm
Location: Southern Colorado Rocky Mountains

Postby EAO » Sun Jan 10, 2021 2:41 am

Did I mention that I got jack for Christmas?! :'(

Living vicariously through you and your new toy!

Cheers,
Eric.
User avatar
EAO
Sergeant

Posts: 520
Joined: Sun May 10, 2020 5:29 pm
Location: Central Missouri, U.S. of A.

Postby lmcq11 » Sun Jan 10, 2021 4:04 am

Superb, looks like it just need painting. Congrats

lmcq11
Warrant Officer 2nd Class

Posts: 1464
Joined: Mon Dec 19, 2016 8:42 pm
Location: Quebec, Canada

Postby PainlessWolf » Sun Jan 10, 2021 4:22 am

Eric!,
Time to open your wallet and blow the moths out and go spread a little Christmas Cheer for yourself.
regards,
Painless
User avatar
PainlessWolf
Lieutenant-Colonel

Posts: 6825
Joined: Sun Feb 26, 2012 10:09 pm
Location: Southern Colorado Rocky Mountains

Postby PainlessWolf » Sun Jan 10, 2021 4:31 am

Louis!
Repairs from shipping have been made and it is running in fine fettle. I have located a working Barrel Lock at Ludwigs ( Thanks to Hermann and Jackalope ) and will replace the nicely detailed yet non working one that comes with the TD. I am also on the hunt for a functional mount for the rear deck MG-42. If I cannot locate one I have parts and ideas to add some functionality to the supplied plastic part. Other detailing comes to mind ( rear tow lug, flexible antenna mount, working rear convoy light, swivel mount rear mudguards, etc....) You of all Builders know the satisfaction to be had from super detailing a tank. ;o)
Thank you for looking in!
Painless
User avatar
PainlessWolf
Lieutenant-Colonel

Posts: 6825
Joined: Sun Feb 26, 2012 10:09 pm
Location: Southern Colorado Rocky Mountains

Postby HERMAN BIX » Sun Jan 10, 2021 4:57 am

My rear MG mount was a copy out of brass that referenced a real picture from the time.
preaty easy with a couple of brass tubes & sprue scrap.
User avatar
HERMAN BIX
Lieutenant-Colonel

Posts: 7108
Joined: Sun Jan 12, 2014 1:15 am
Location: Gold Coast,Australia

Postby Ad Lav » Sun Jan 10, 2021 8:57 am

Our friend Martin at MK has some nice stuff :)

https://mk-modellbau.de/main_bigware_34 ... -jagdtiger
User avatar
Ad Lav
Lieutenant

Posts: 3486
Joined: Tue Sep 01, 2009 4:44 pm
Location: Kent

Postby PainlessWolf » Sun Jan 10, 2021 7:17 pm

Good Morning, Adlav!
Thank you for the reminder for this site. Exactly what I am looking for as well!
regards,
Painless
User avatar
PainlessWolf
Lieutenant-Colonel

Posts: 6825
Joined: Sun Feb 26, 2012 10:09 pm
Location: Southern Colorado Rocky Mountains

Postby EAO » Tue Jan 12, 2021 8:09 pm

PainlessWolf wrote:Eric!,
Time to open your wallet and blow the moths out and go spread a little Christmas Cheer for yourself.
regards,
Painless


Painless,

My Wife has my wallet in lock down, during this lock down! I'm on "double secret probation" for the foreseeable future. At least she hasn't forced me to give up my cigars! :/ But i'm smoking the cheapest, imported, handmade one's that I can find! :lolno:

Cheers,
Eric.
Last edited by EAO on Fri Jan 15, 2021 2:35 am, edited 1 time in total.
User avatar
EAO
Sergeant

Posts: 520
Joined: Sun May 10, 2020 5:29 pm
Location: Central Missouri, U.S. of A.
