B1 bis

This section is for builds that are not strictly Tamiya or Heng Long. For instance, replacing the electronics from a WSN or Matorro, or even a scratch-build.

Postby Exzitus » Thu Jun 11, 2020 8:25 pm

I hope I'm not boring anyone here with frequent topics :)

I want to share the process of creating another model - B1 bis.

In the beginning, I will post the work that has already been done. I will spread it by analogy with the Object.

19.11.2019, 18:19

The project started around February.

The car is interesting for its relatively small size for a heavy tank and a kind of chassis. The original had an interesting electric turning system, which allowed you to accurately point the course gun.

The model will have:
- printed case with set rivets and bolts;
- simplified suspension system;

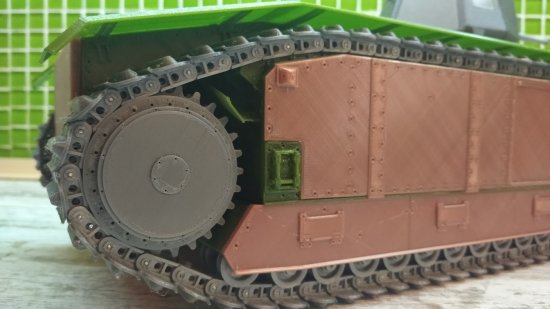

- spring tensioner of the track on the sloth;
- 5-speed transmission with a single engine forward/backward and a separate motor for turns (similar to the principle of working with Tamiya or DKLM).

Probably the most interesting is the transmission. The design of the tank itself stood for a long time, although two samples of the body were printed in mid-summer, precisely because of the transmission.
A 5-speed gearbox should ideally also be automatic, but it may not be.

To be continued...
Last edited by Exzitus on Thu Jun 11, 2020 8:32 pm, edited 1 time in total.

Exzitus
Recruit

Posts: 30
Joined: Sun Jun 07, 2020 9:25 pm

Postby Exzitus » Thu Jun 11, 2020 8:31 pm

30.11.2019, 01:33

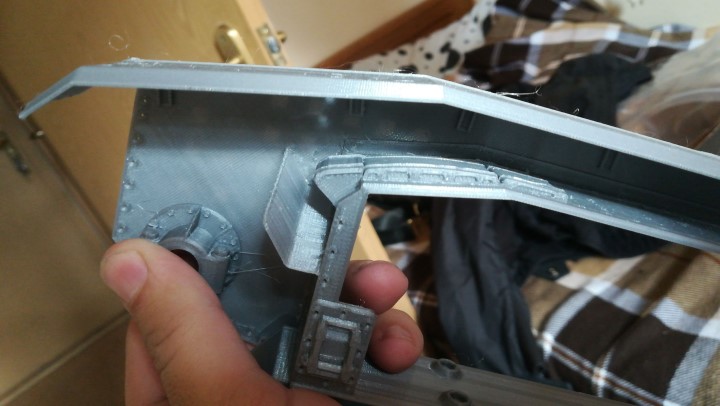

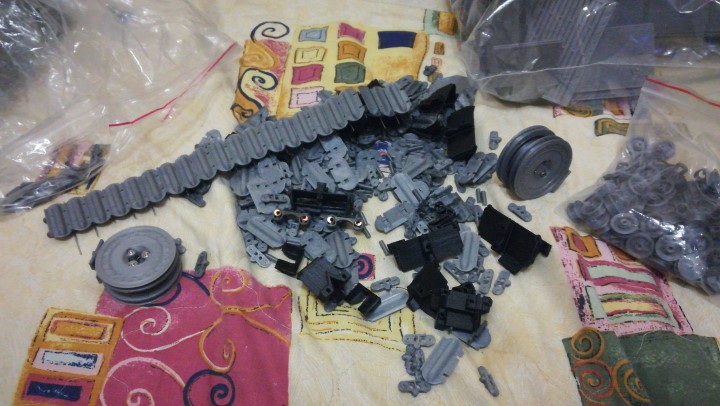

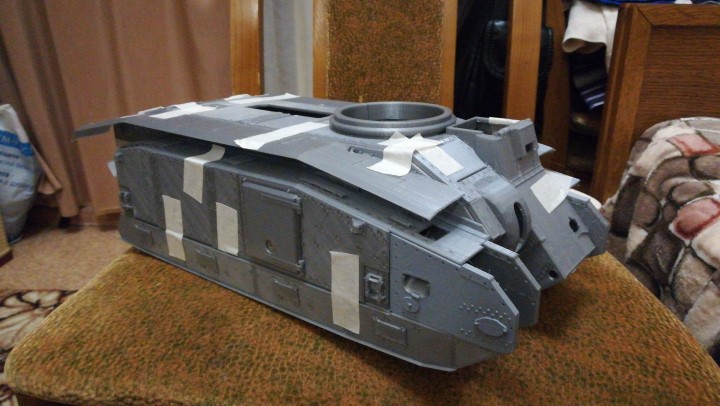

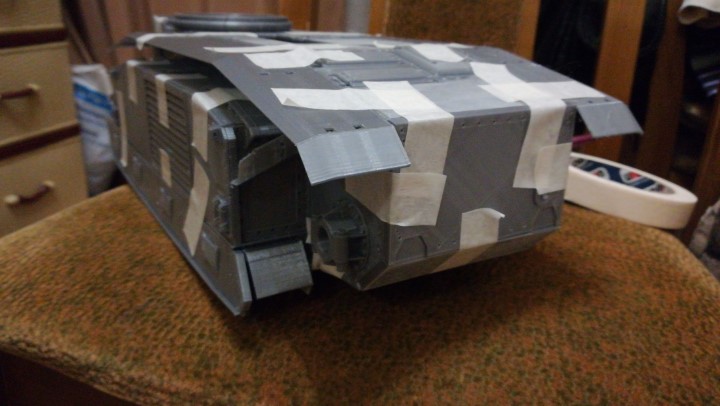

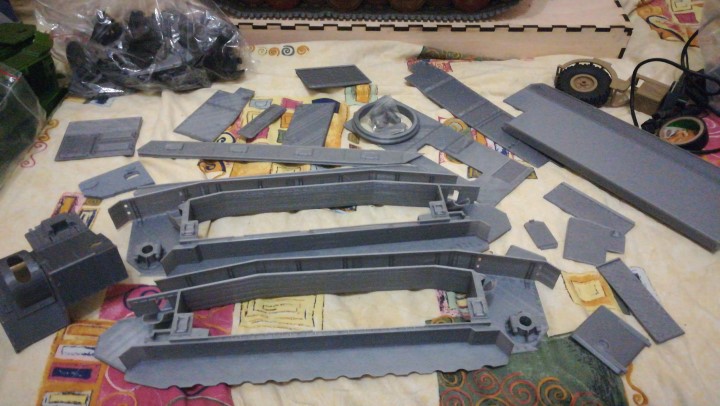

The body has been printed for a long time, the chassis is also almost completely.

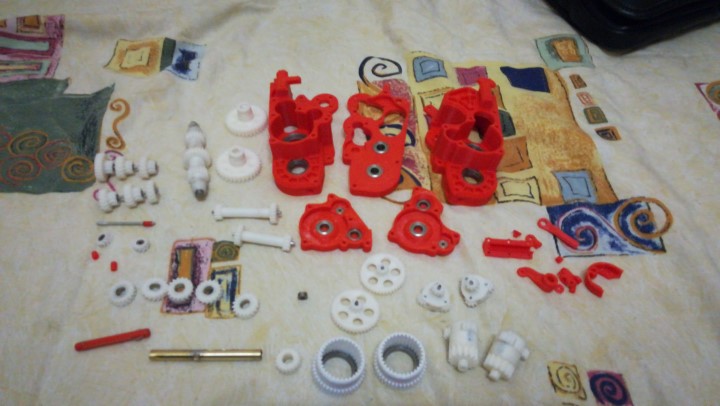

I spent a long time working on the gearbox. There were created 5 projects that did not fit the characteristics yet.

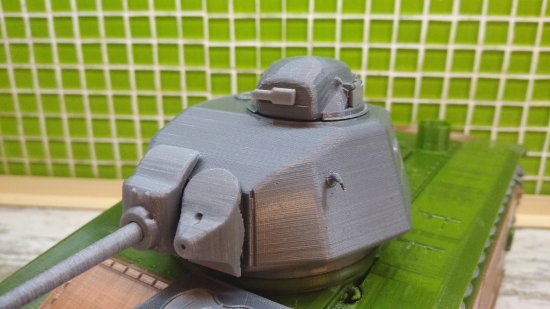

The tower is still in operation, it will be similar to that of Ilgar on Somua, only a lump. the turret is rounded.
Bulletproof bolts I hope will be printed on photopolymers by Vyacheslav Loginov

To be continued...
Attachments

Exzitus
Recruit

Posts: 30
Joined: Sun Jun 07, 2020 9:25 pm

Postby Exzitus » Thu Jun 11, 2020 8:39 pm

19.05.2020, 23:17

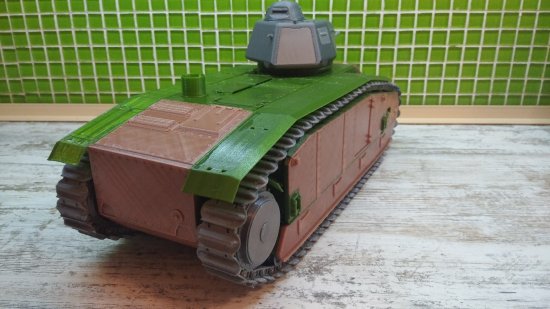

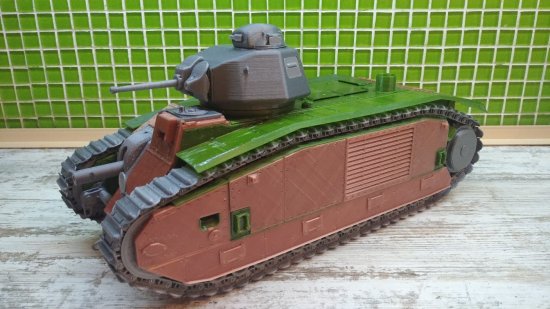

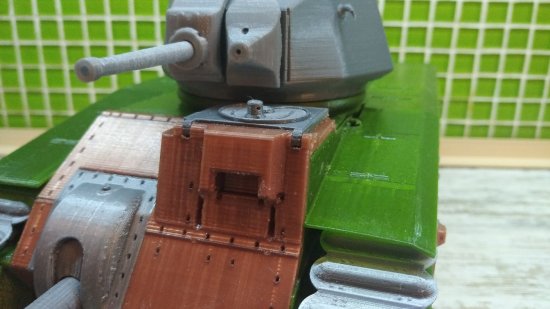

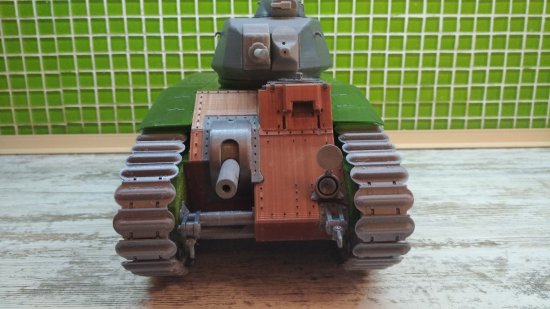

After a long break, work resumed.

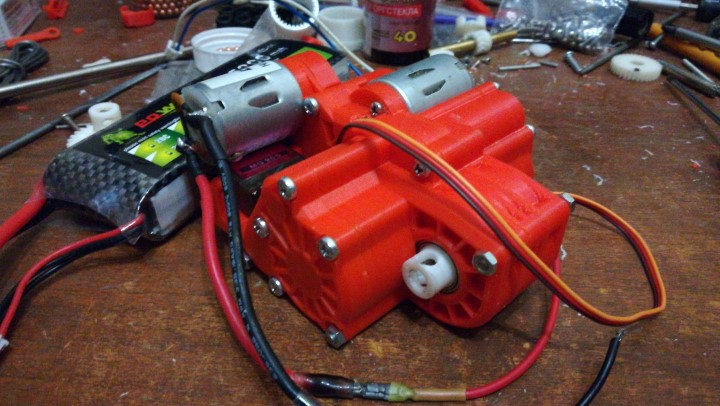

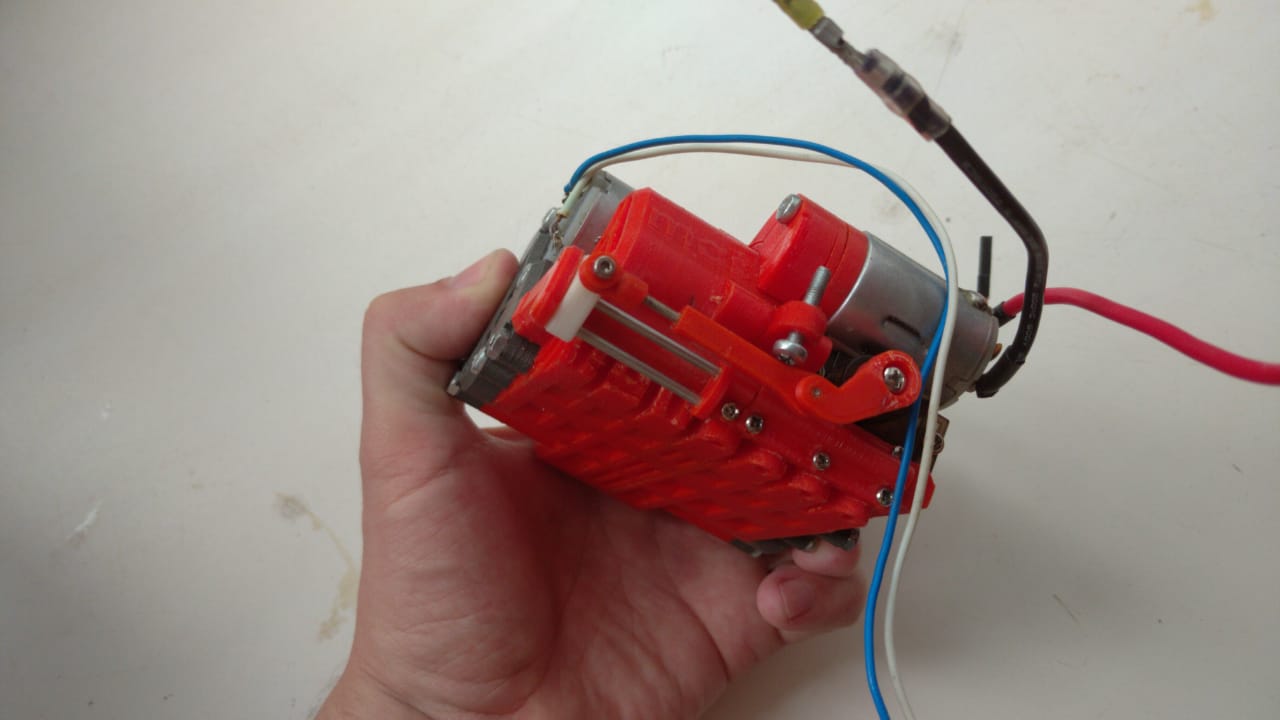

The checkpoint is working as planned. However, for comfortable control, you need to configure the Board, since the control is like a car (instead of the rotation servos, a reverse speed controller is put). We still need to develop a speed control Board. This is left for later - the Board will run in parallel on the truck.

The suspension is a bit stiff. With a full load as it will roll - I will think how to improve.

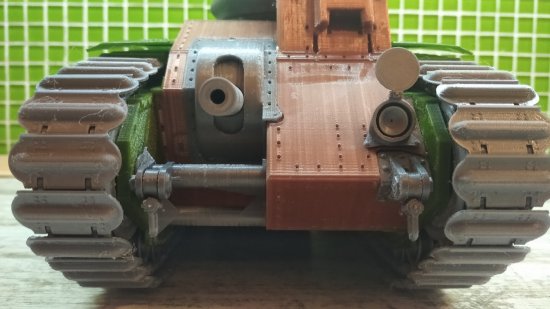

A weapon without recoil. The place is actually there, but I don't see the point in such a small trunk.

The most recent step will be the installation of bolts... about a thousand of them... I hope you have enough patience.
Attachments

Exzitus
Recruit

Posts: 30
Joined: Sun Jun 07, 2020 9:25 pm

Postby Exzitus » Thu Jun 11, 2020 8:41 pm

Then I will post up-to-date information on creating the model.

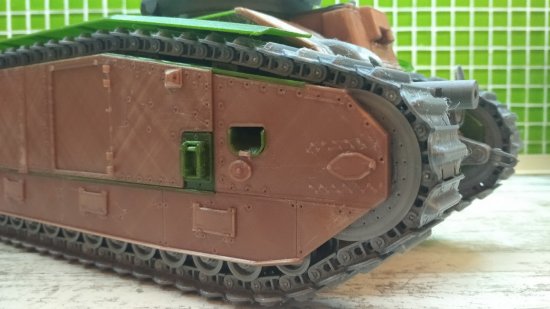

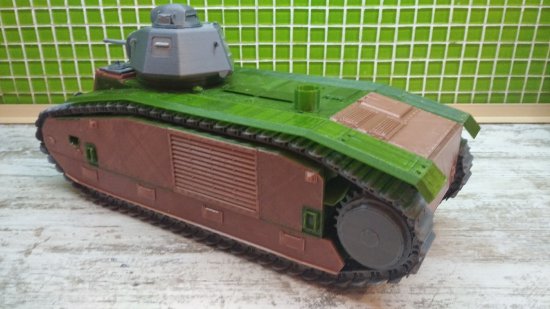

P. S. bullet-proof rivets and bolts are all installed already. I work inside the model. I also forgot about some elements outside.

Exzitus
Recruit

Posts: 30
Joined: Sun Jun 07, 2020 9:25 pm

Postby c.rainford73 » Fri Jun 12, 2020 2:16 am

Most excellent build! :wave:
User avatar
c.rainford73
Major

Posts: 5768
Joined: Thu Aug 25, 2016 7:34 pm
Location: Connecticut USA

Postby lmcq11 » Fri Jun 12, 2020 3:06 am

Super engineering. Awesome tank :thumbup:
Louis

lmcq11
Warrant Officer 2nd Class

Posts: 1131
Joined: Mon Dec 19, 2016 8:42 pm
Location: Quebec, Canada

Postby midlife306 » Fri Jun 12, 2020 8:48 am

Fantastic


Sent from my iPhone using Tapatalk
User avatar
midlife306
Warrant Officer 1st Class

Posts: 1925
Joined: Sun Aug 27, 2017 10:34 am

Postby Exzitus » Fri Jun 12, 2020 6:34 pm

The works are moving. There is not enough time catastrophically((

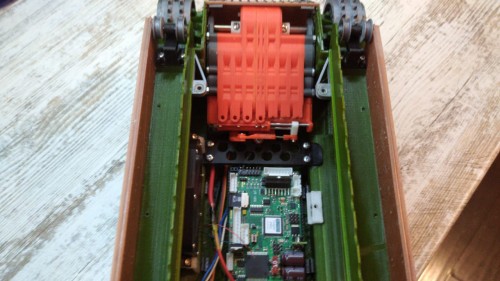

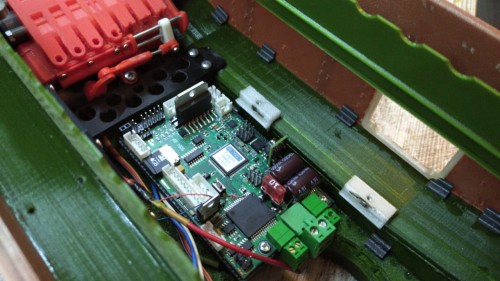

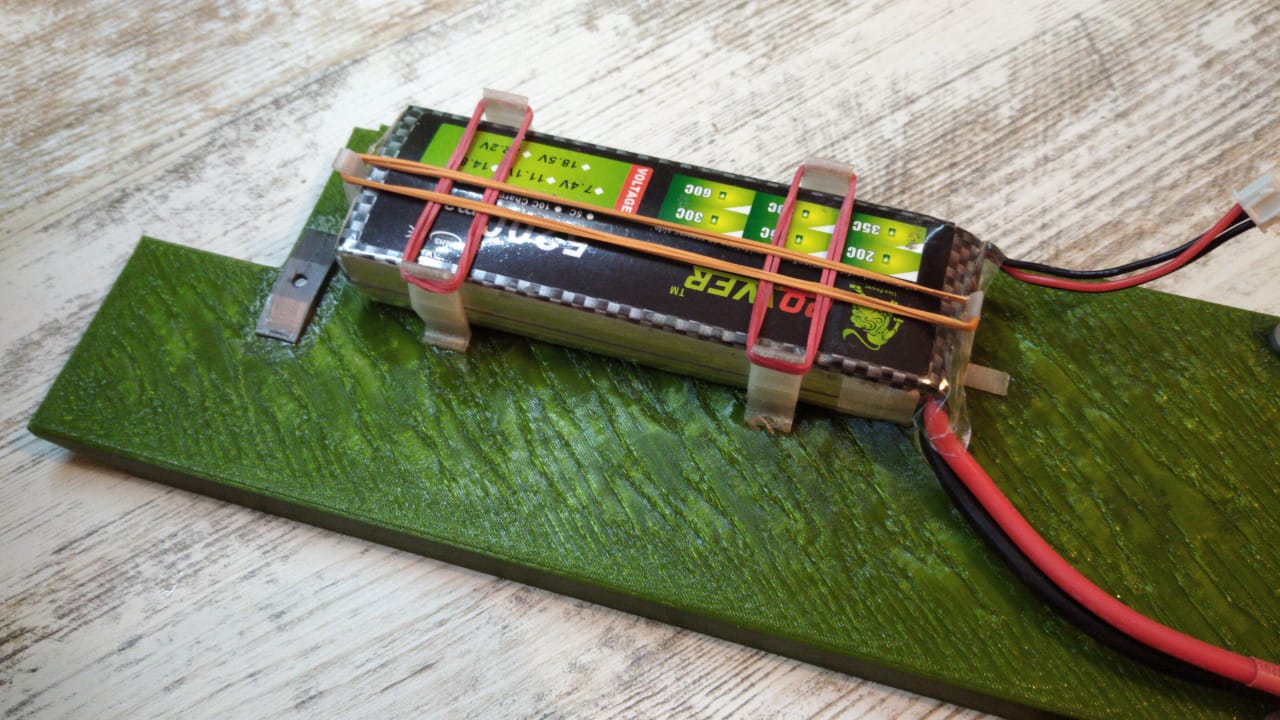

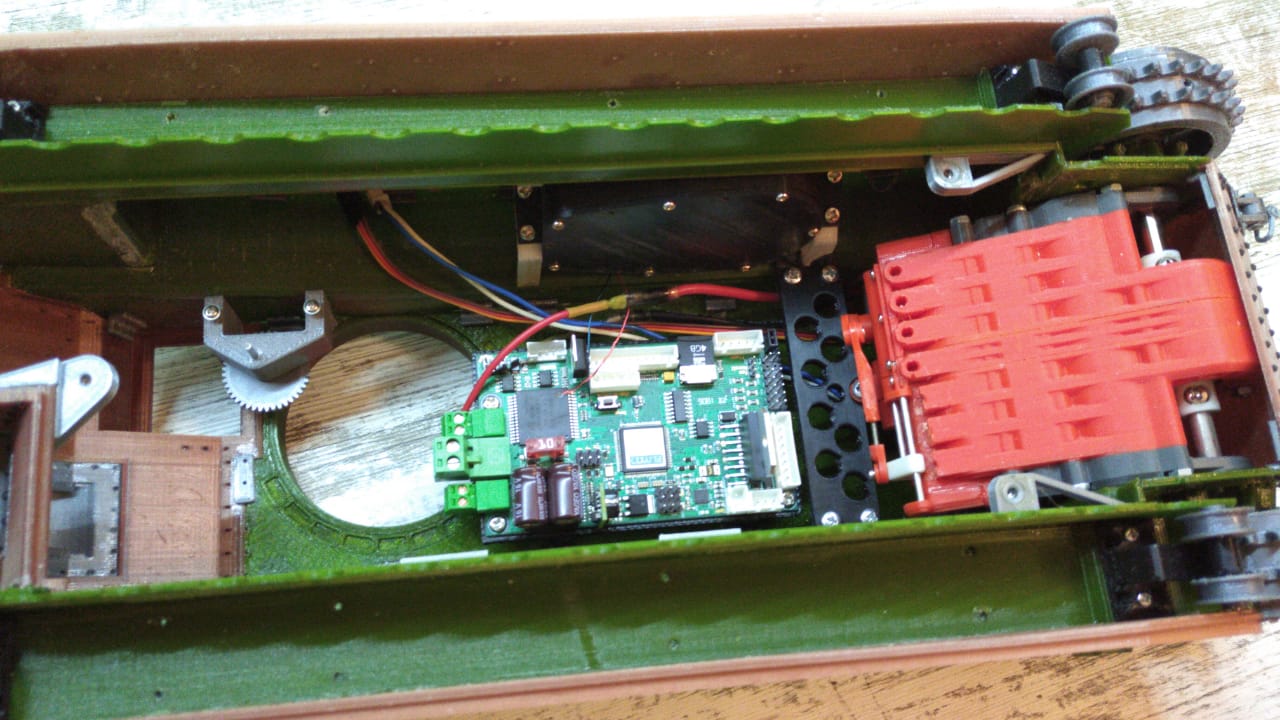

Arranged the internal nodes. Turning the model on/off, volume, and charging Jack will be located behind the side hatch.

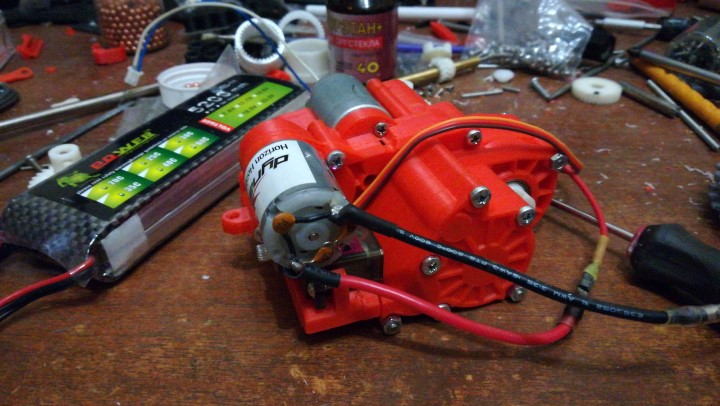

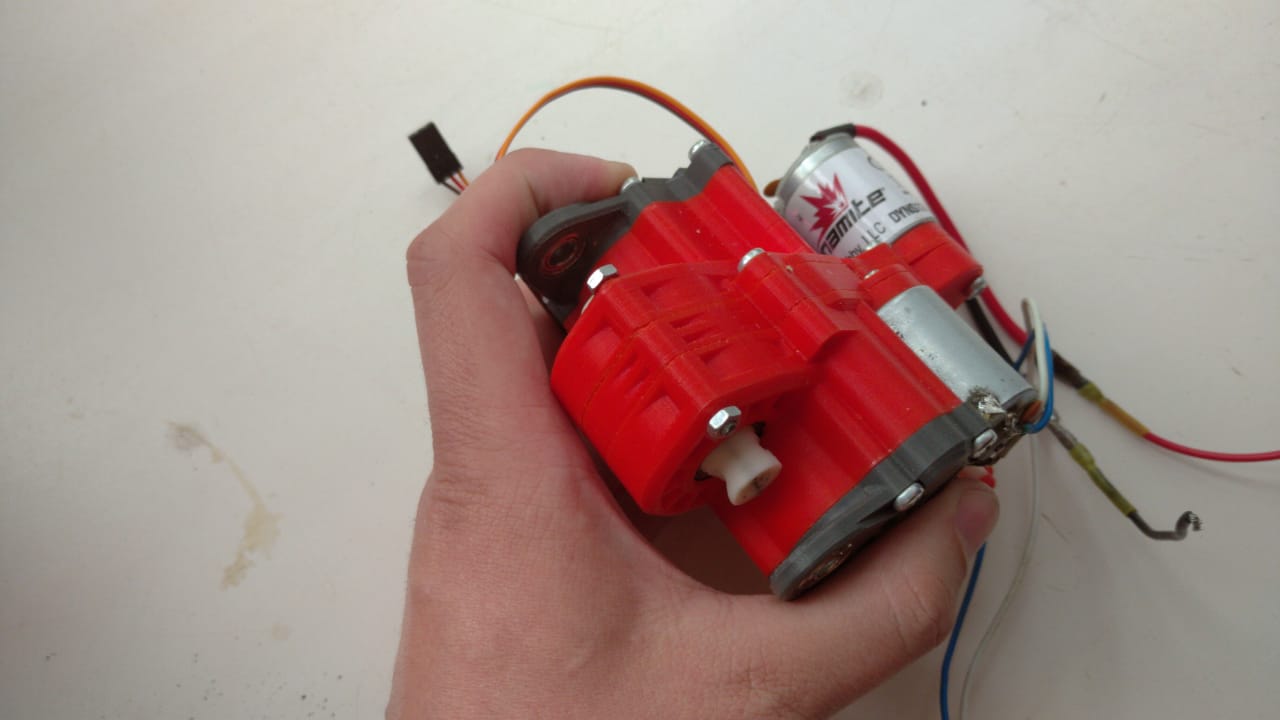

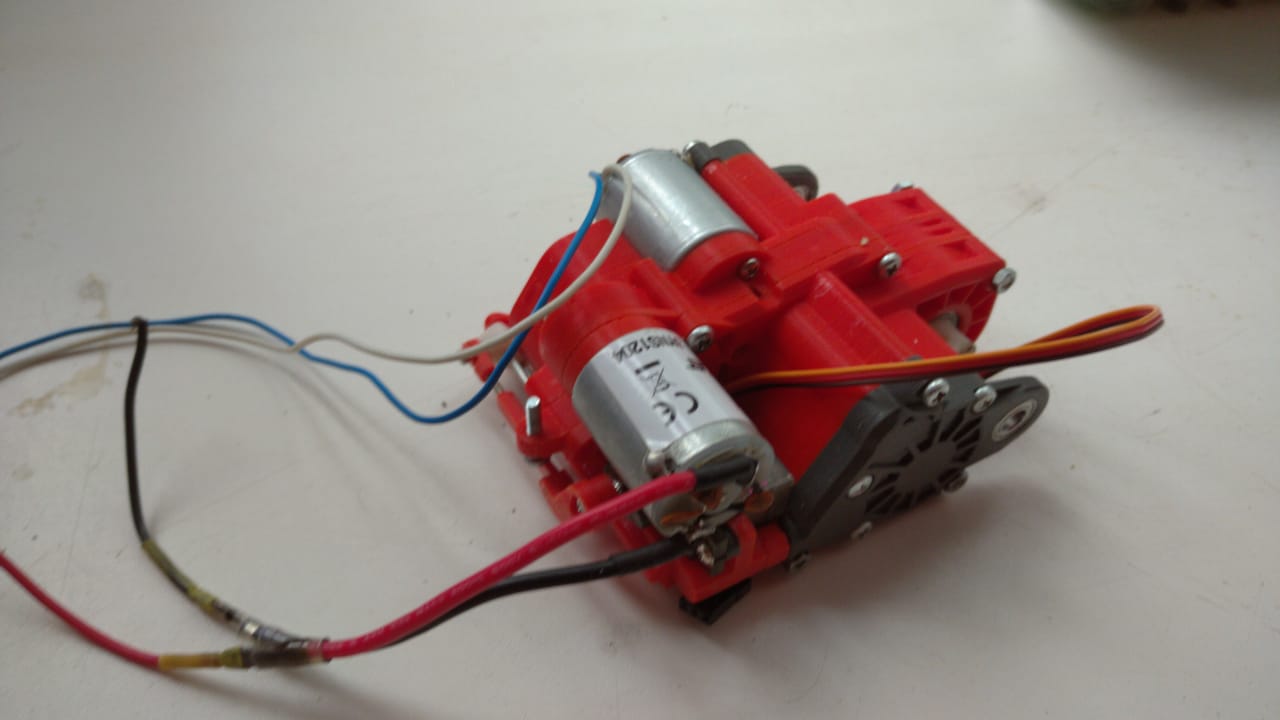

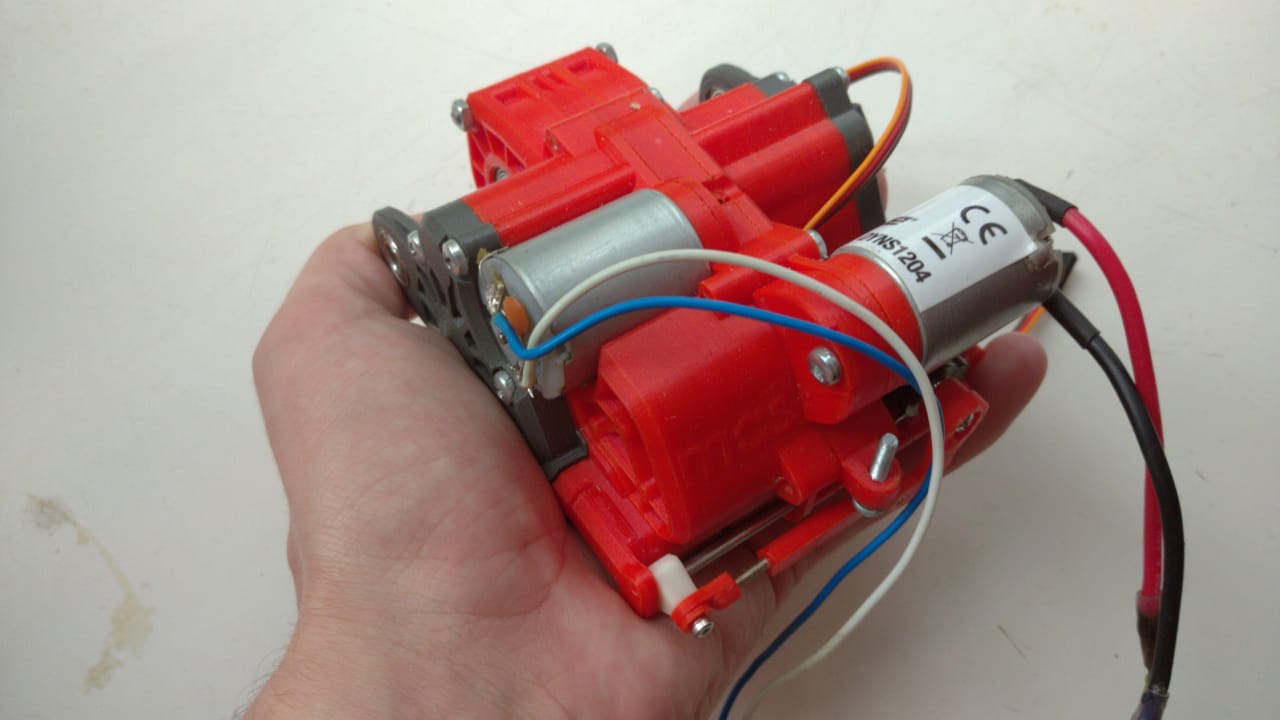

I will show you the gearbox separately. Dimensions in mm-length*width*height 111*84*52
Attachments

Exzitus
Recruit

Posts: 30
Joined: Sun Jun 07, 2020 9:25 pm

Postby Jimster » Fri Jun 12, 2020 6:52 pm

Very cool build. I see you’re using the very best tank control board for excellent sound and motor control.

Jimster
Staff Sergeant

Posts: 964
Joined: Mon Dec 10, 2018 2:51 am
Location: Illinois

Postby Exzitus » Fri Jun 12, 2020 7:15 pm

Jimster wrote:Very cool build. I see you’re using the very best tank control board for excellent sound and motor control.


Yes, I use this Board as it is available. But most likely, its use in this kind of project is not justified, since the transmission is similar to the original one and when installing an intermediate control module, it will be able to switch gears mechanically with audio accompaniment.

Ideally, the transmission should be automatic. I wrote an approximate control logic for the intermediate control module. We will try to organize automatism with our programmer friends.

As a result, even Clark will be quite realistic to move the entire tank.

Exzitus
Recruit

Posts: 30
Joined: Sun Jun 07, 2020 9:25 pm

Postby tomhugill » Fri Jun 12, 2020 9:51 pm

What an incredible project! I love the transmission and look forward to seeing more


Sent from my iPhone using Tapatalk
User avatar
tomhugill
Captain

Posts: 4143
Joined: Thu Apr 15, 2010 11:21 am

Postby xhelfix » Fri Jun 19, 2020 1:38 pm

Hey,

fantastik report, that look total fine till jet. :thumbup:

Greetz and thanks for showing, Andy
User avatar
xhelfix
Lance Corporal

Posts: 128
Joined: Fri Jan 17, 2020 2:11 pm
Location: 36381 Schlüchtern Germany

Postby Hoover » Mon Jun 29, 2020 6:25 pm

Fantastic, keep us updated
User avatar
Hoover
Recruit

Posts: 7
Joined: Sat Jul 18, 2015 3:01 pm

Postby Will01Capri » Mon Jun 29, 2020 10:53 pm

Very nice piece of design work. Watching with interest
User avatar
Will01Capri
Warrant Officer 1st Class

Posts: 1803
Joined: Tue Jul 18, 2017 5:34 pm
Location: South Scotland

Postby MITCH » Tue Jun 30, 2020 5:59 am

Is it a gearbox with differentials?
User avatar
MITCH
Private

Posts: 57
Joined: Thu May 30, 2019 10:24 am

Postby Exzitus » Wed Jul 01, 2020 12:37 pm

MITCH wrote:Is it a gearbox with differentials?

Yes, the gearbox uses a differential for turning, which is implemented on planetary groups of gears.

Exzitus
Recruit

Posts: 30
Joined: Sun Jun 07, 2020 9:25 pm

Postby MITCH » Wed Jul 01, 2020 8:14 pm

Exzitus wrote:
MITCH wrote:Is it a gearbox with differentials?

Yes, the gearbox uses a differential for turning, which is implemented on planetary groups of gears.

Very good job! Do you have a video?
User avatar
MITCH
Private

Posts: 57
Joined: Thu May 30, 2019 10:24 am

Postby Exzitus » Wed Jul 01, 2020 8:58 pm

MITCH wrote: Very good job! Do you have a video?


Tests of the work were carried out in a semi-disassembled state. Equipment from the r/c car was used.

I didn't make a video. I test the transmission more fully on a truck model.

I will make a video when the model is in decent condition. It will be a little later. I am currently working on a cast KV-1 tower.

Exzitus
Recruit

Posts: 30
Joined: Sun Jun 07, 2020 9:25 pm
