Panther F

This section is for builds that are not strictly Tamiya or Heng Long. For instance, replacing the electronics from a WSN or Matorro, or even a scratch-build.

Postby ronnie42 » Mon Dec 23, 2019 5:47 pm

This has been lying for too long. Has a few broken plastic parts , first job is remove all the oversized plastic and the horrible recoil / elevation unit.

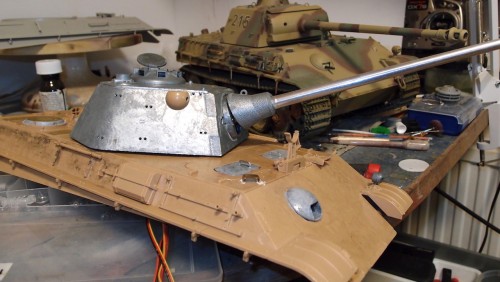

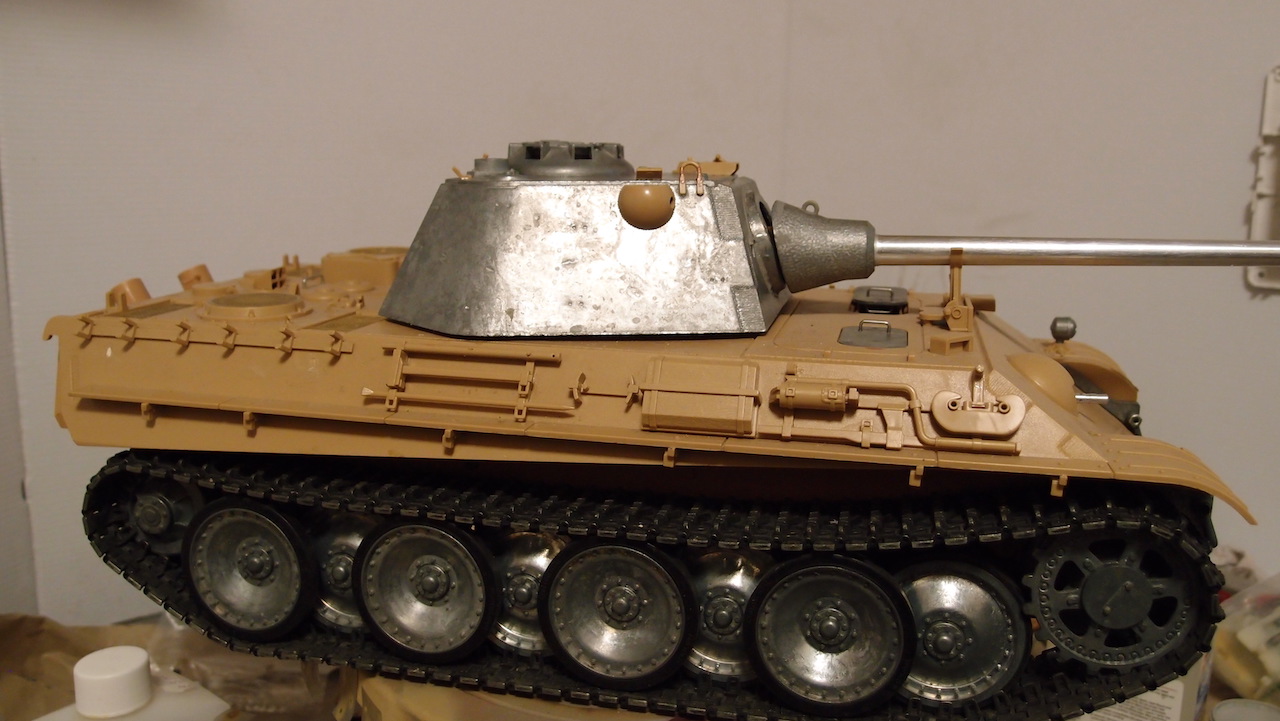

the start

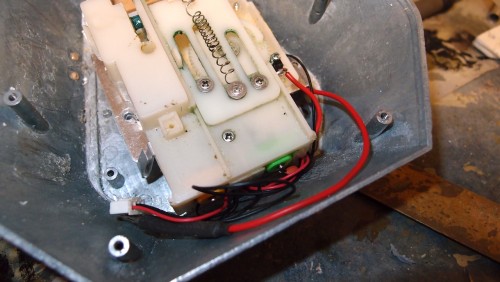

This is junk

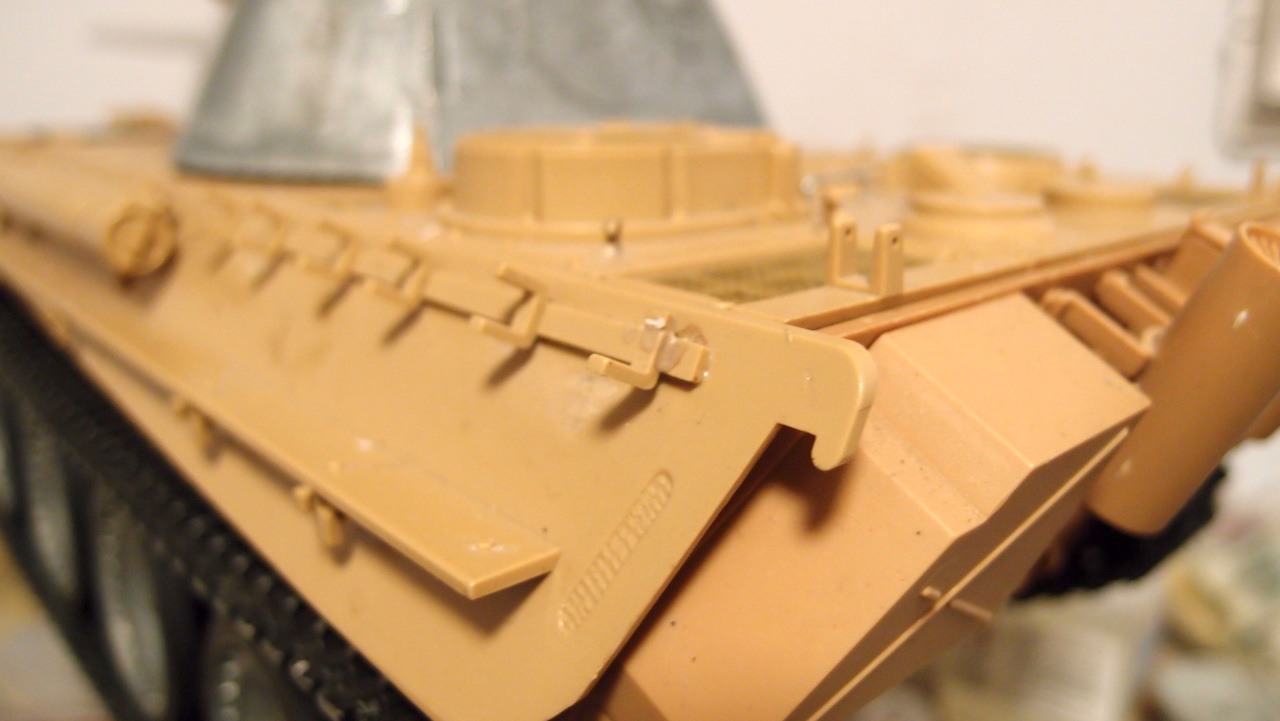

Hangers are way off scale and bust got to go.

ronnie42
Sergeant

Posts: 562
Joined: Sun Feb 04, 2018 12:00 pm

Postby Soeren » Mon Dec 23, 2019 7:10 pm

Nice one. I have an F as well. In 1 35th scale to be honest ;).

Even though some bits maybe oversize, at least they are there. I am sure you will make something great of it.
User avatar
Soeren
Warrant Officer 2nd Class

Posts: 1202
Joined: Sat Oct 22, 2016 3:27 pm

Postby ronnie42 » Mon Dec 23, 2019 8:55 pm

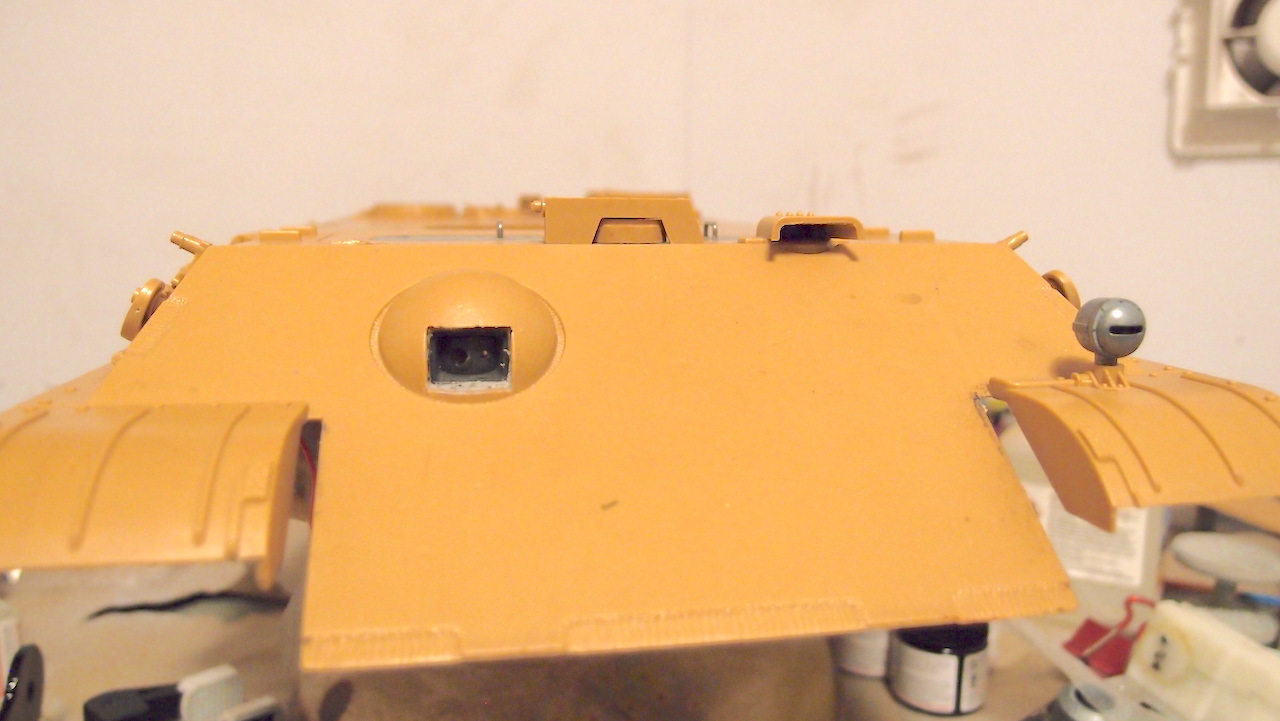

Hi Soeren Thanks for looking, started the teardown . 1st job is the hull mg. Well that was a good start , noticed the mg armoured cover was all wrong. Checked my stash and the Jagdpanther one is same as the KT spare cover when i used the zimmerit kit. , must have been a standard fitting. Only one option cut out the Taigen cover as it will annoy me.
making this look better

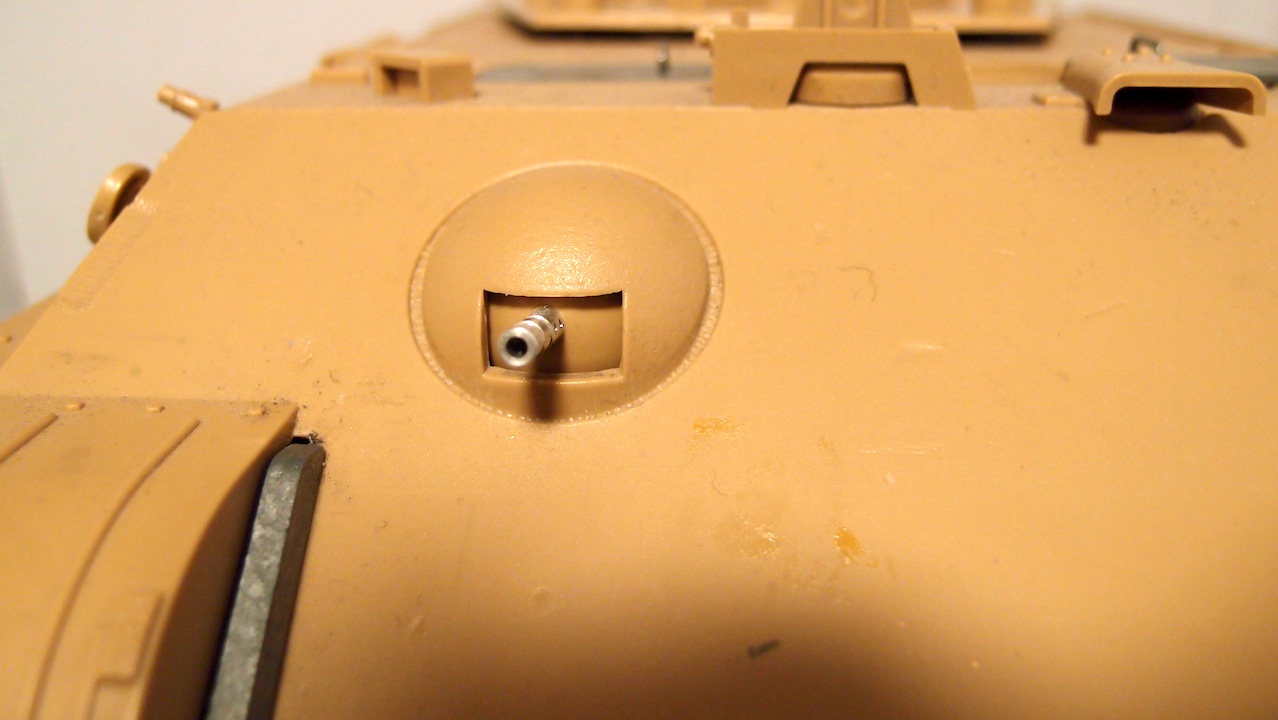

fitted the Tamiya mg holder into the space left after removing the Taigen mg ball
Was a pig fitting Tamiya part, problem is the Taigen cover is totally wrong.

ronnie42
Sergeant

Posts: 562
Joined: Sun Feb 04, 2018 12:00 pm

Postby STHV » Mon Dec 23, 2019 9:53 pm

Make sure you fit it with an Stg 44!
User avatar
STHV
Lance Corporal

Posts: 153
Joined: Thu May 17, 2018 9:47 pm
Location: Hemel Hempstead, Hertfordshire, UK

Postby ronnie42 » Tue Dec 31, 2019 12:58 am

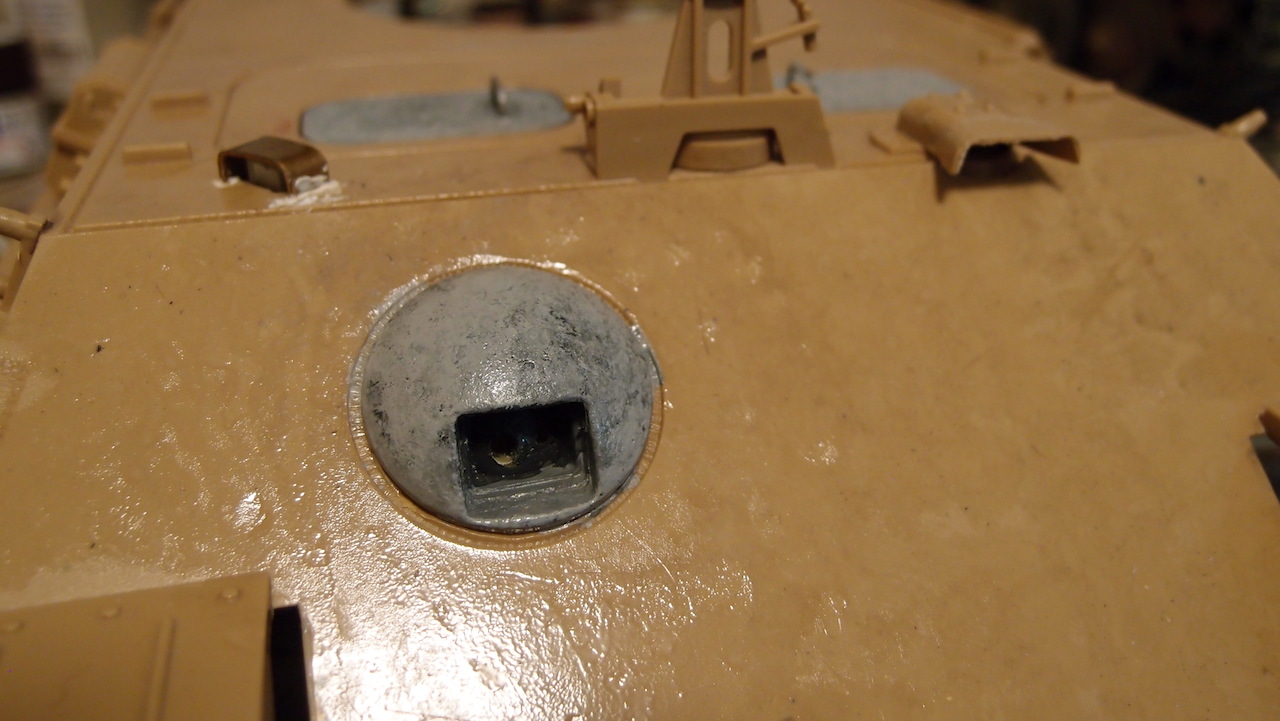

Only one option , get rid of the Taigen hull mg holder. Found a spare Tamiya mg cover .

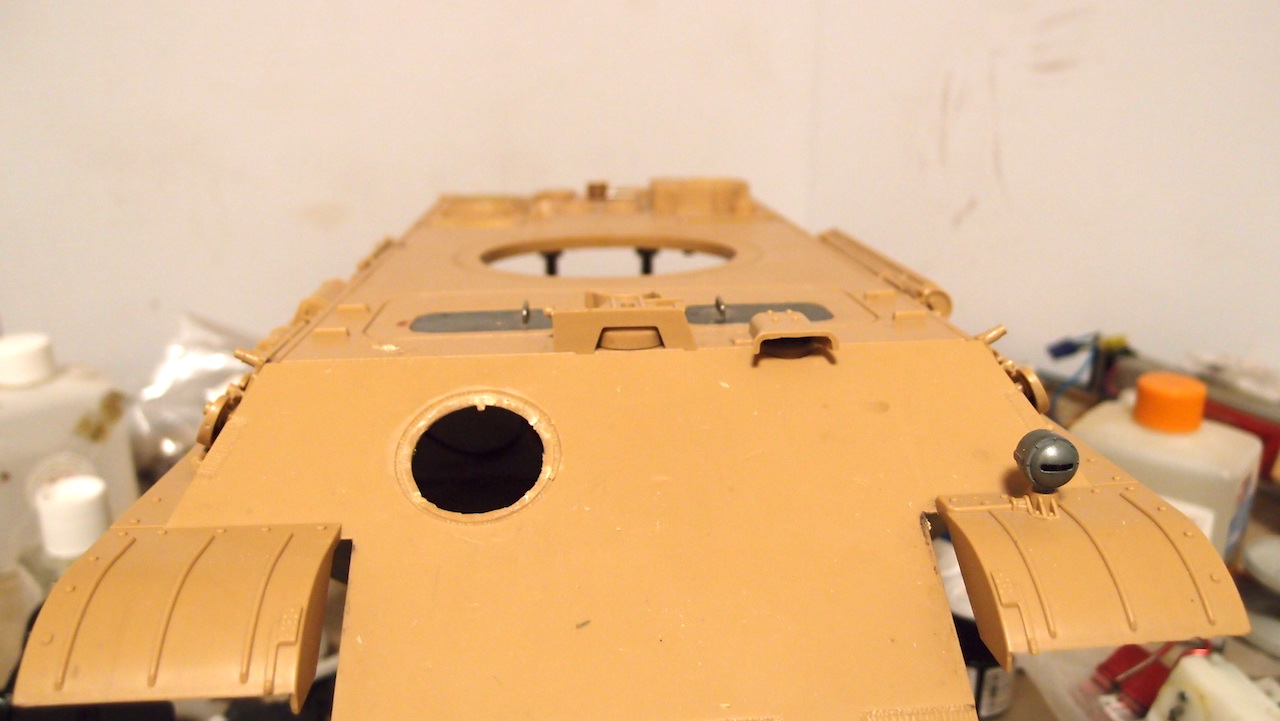

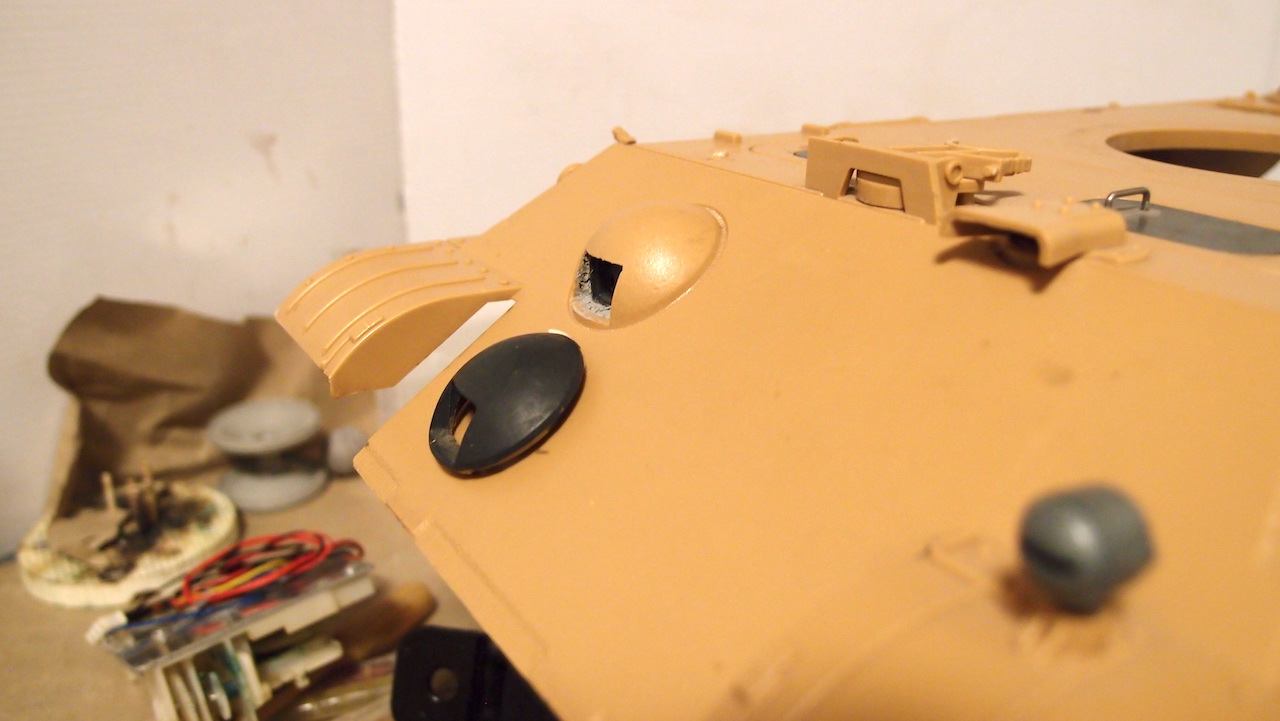

Periscope cover removed and mg ball off

ronnie42
Sergeant

Posts: 562
Joined: Sun Feb 04, 2018 12:00 pm

Postby ronnie42 » Wed Jan 01, 2020 10:35 pm

Some work on upper hull.
Attachments
Tamiya mg cover looks good , periscope cover in metal and thinned out the drivers visor
Casting nos, running out need more

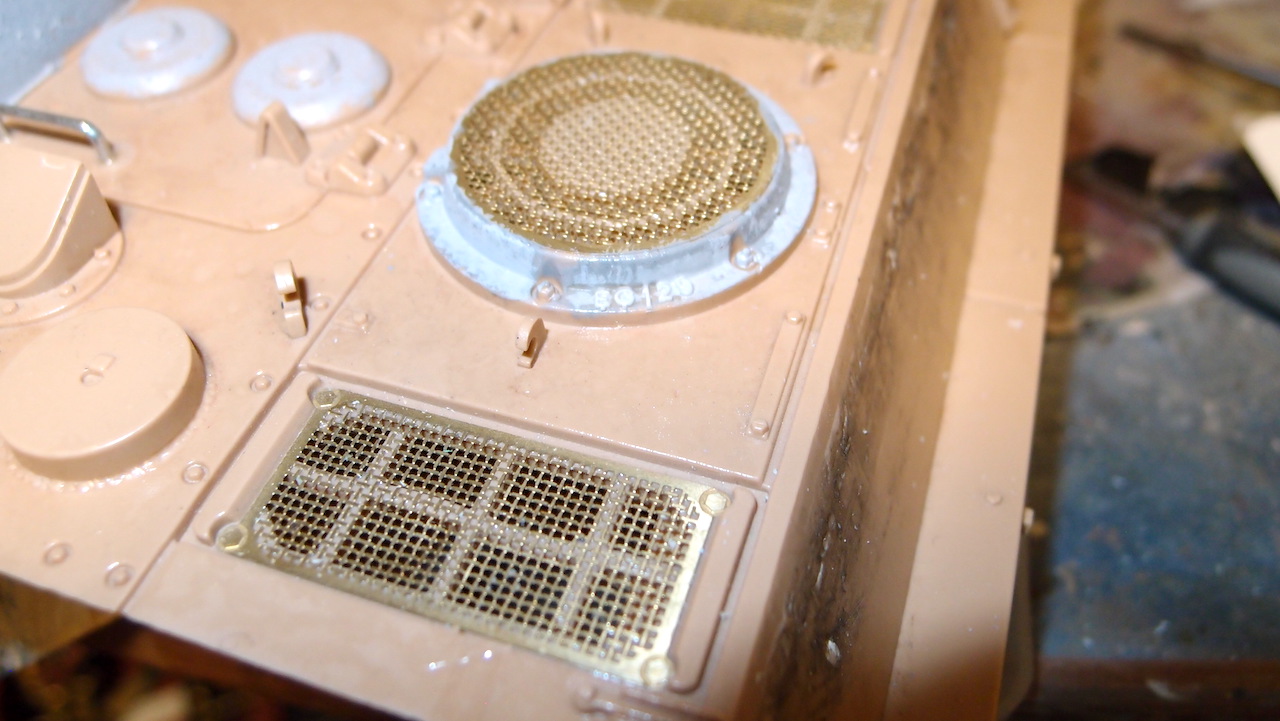

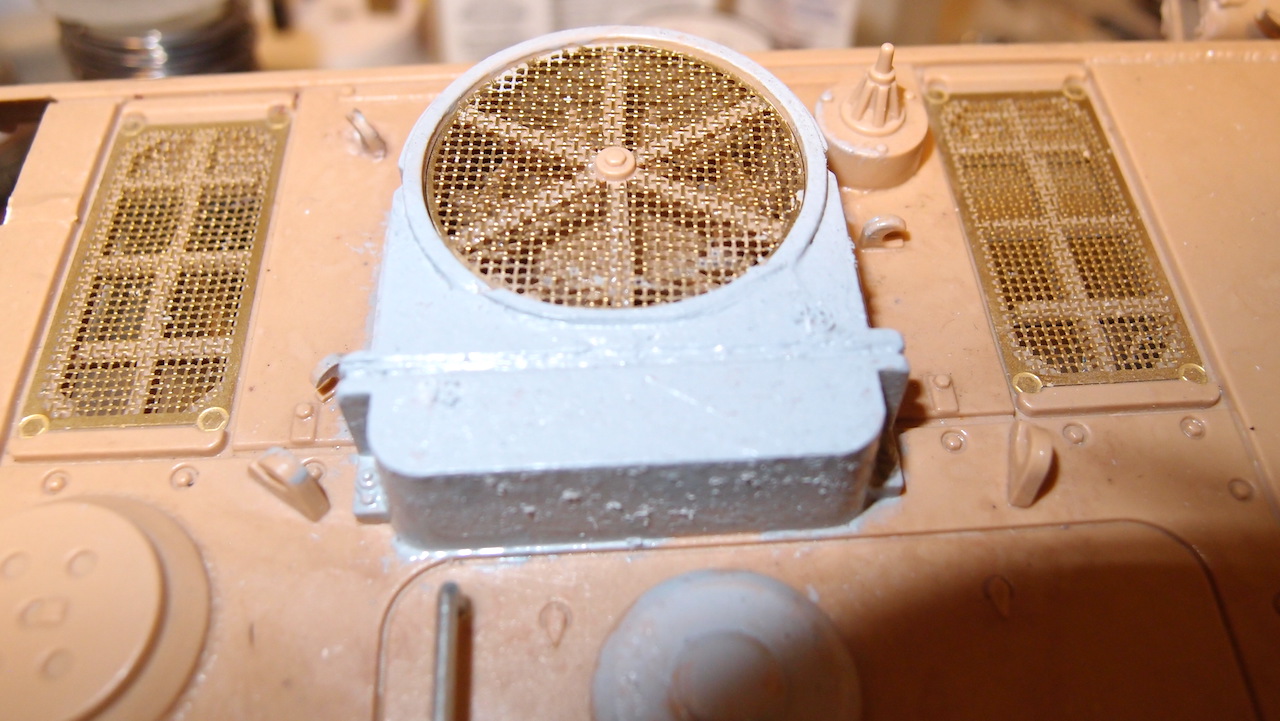

Heater unit casting nos and removed moulded on heater covers

ronnie42
Sergeant

Posts: 562
Joined: Sun Feb 04, 2018 12:00 pm

Postby ronnie42 » Thu Jan 02, 2020 1:07 pm

Made a new recoil and elevation for the F, the one size for all is not for me. Should buy some long servo horns/levers spent ages looking for one. Once i get max elevation and depression i can find out what was real and adjust the Elmod servo settings to get it almost correct.
Attachments

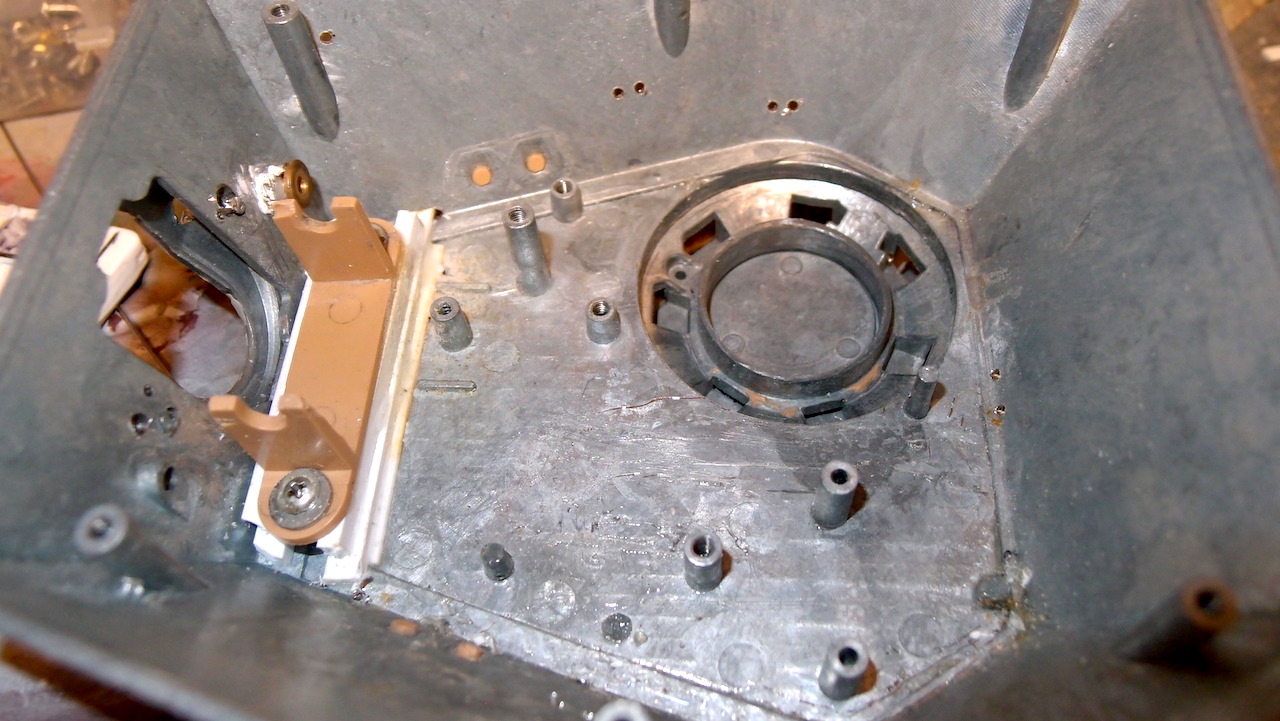

Old unit stripped out and junked the Taigen unit.

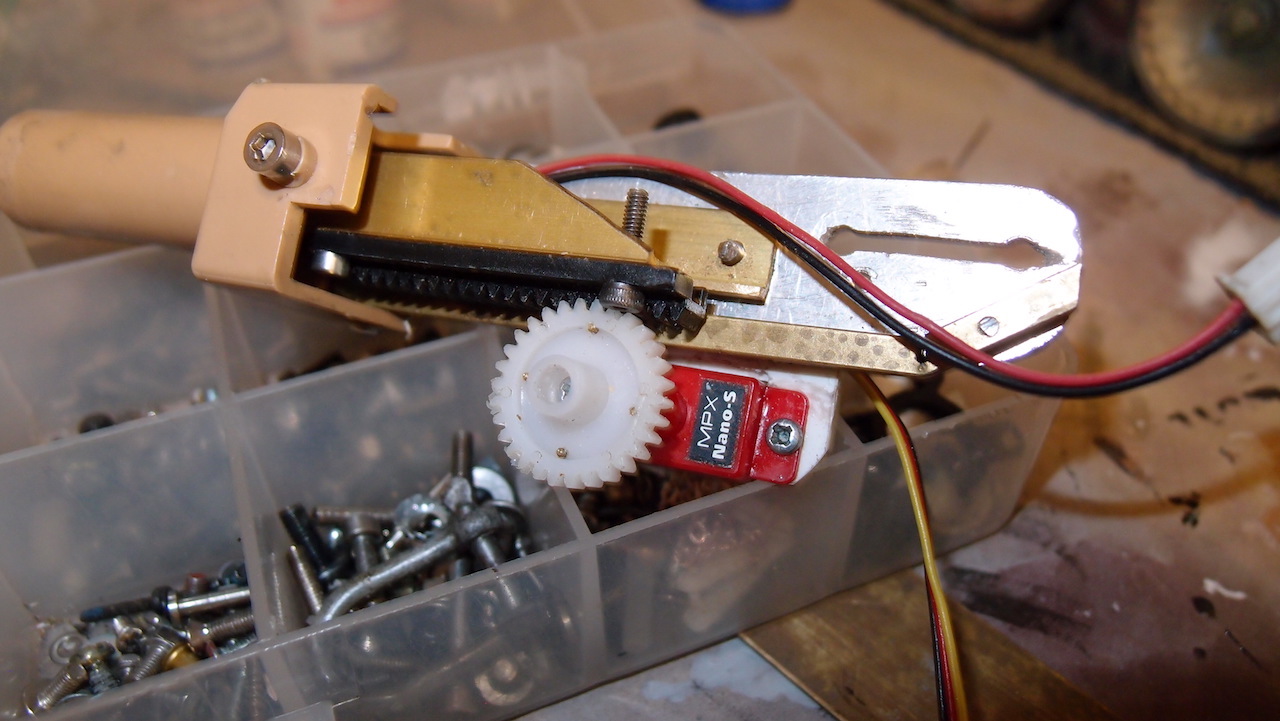

made new recoil , some brass, al and a rack gear for the servo

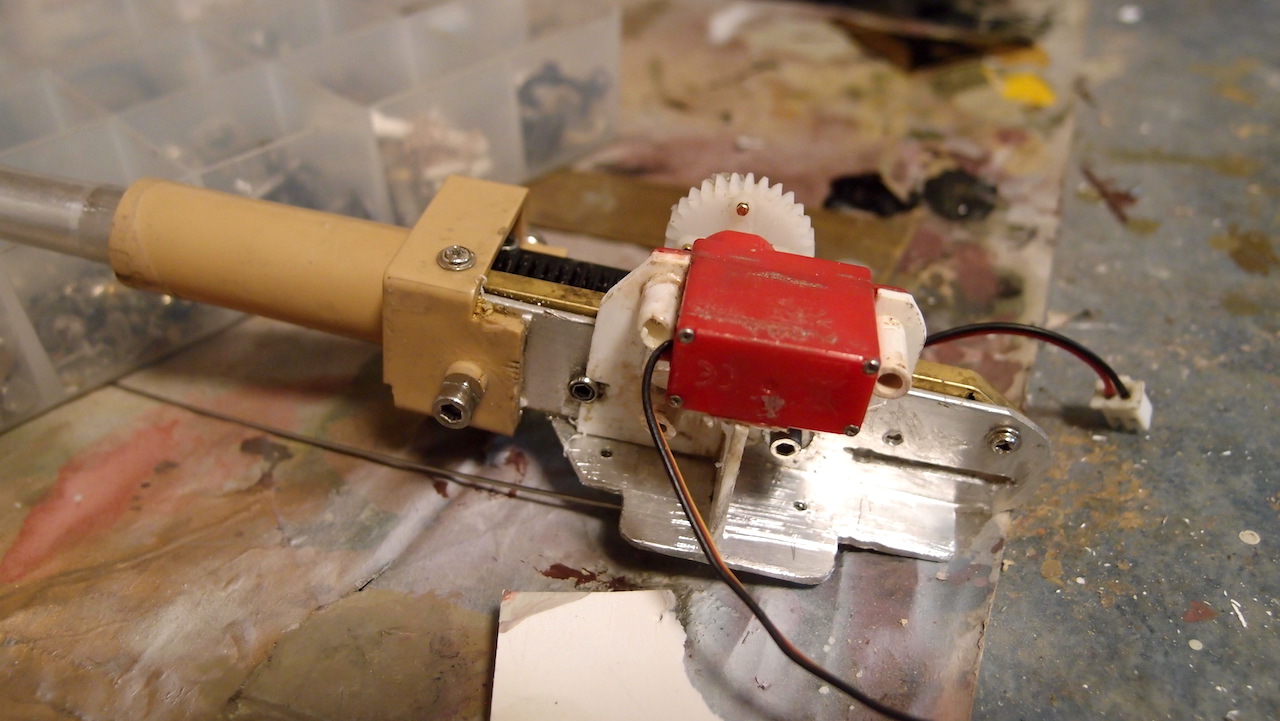

Micro servo , brass and a nylon rack should slide well for the recoil

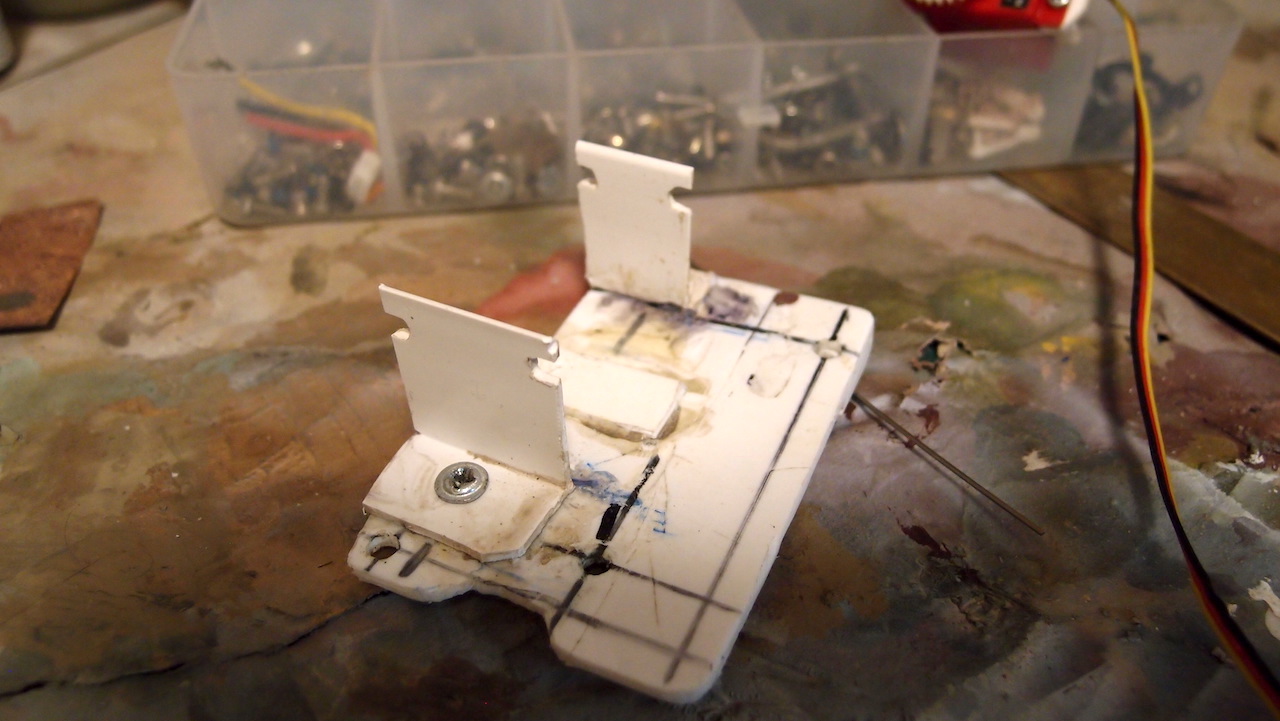

The base for the elevation servo, using an o ring round the slots to hold servo.

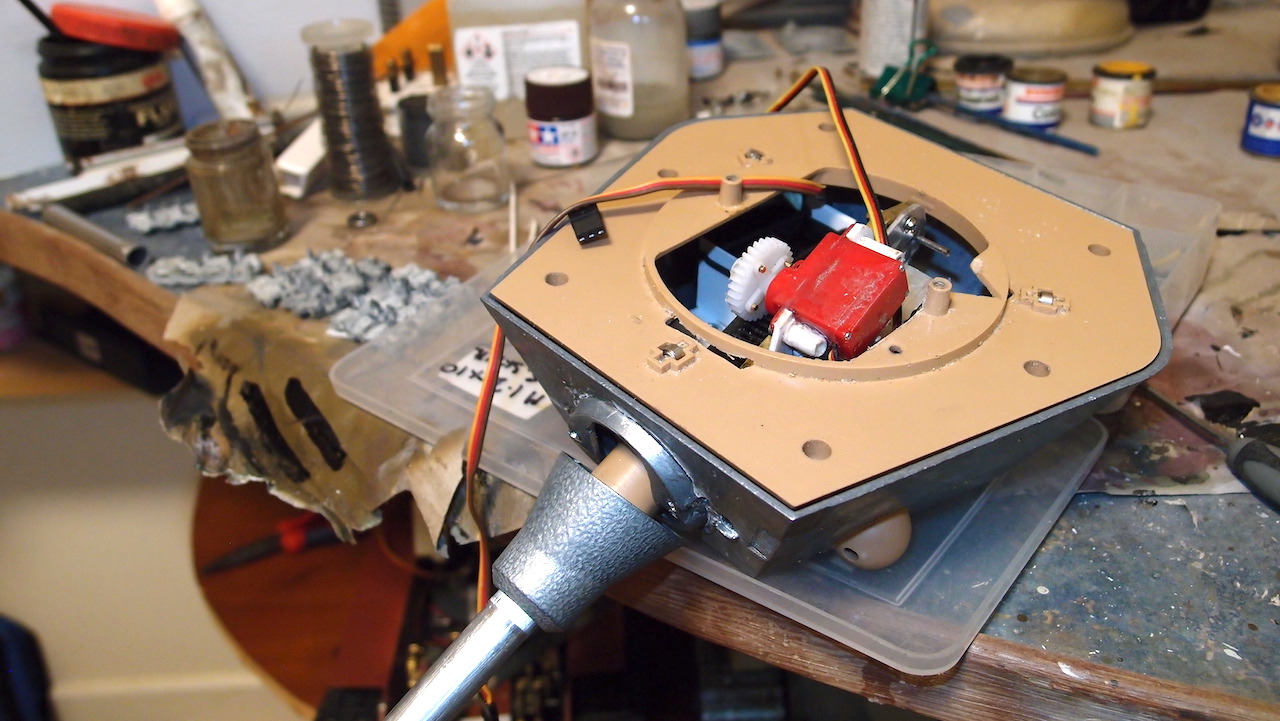

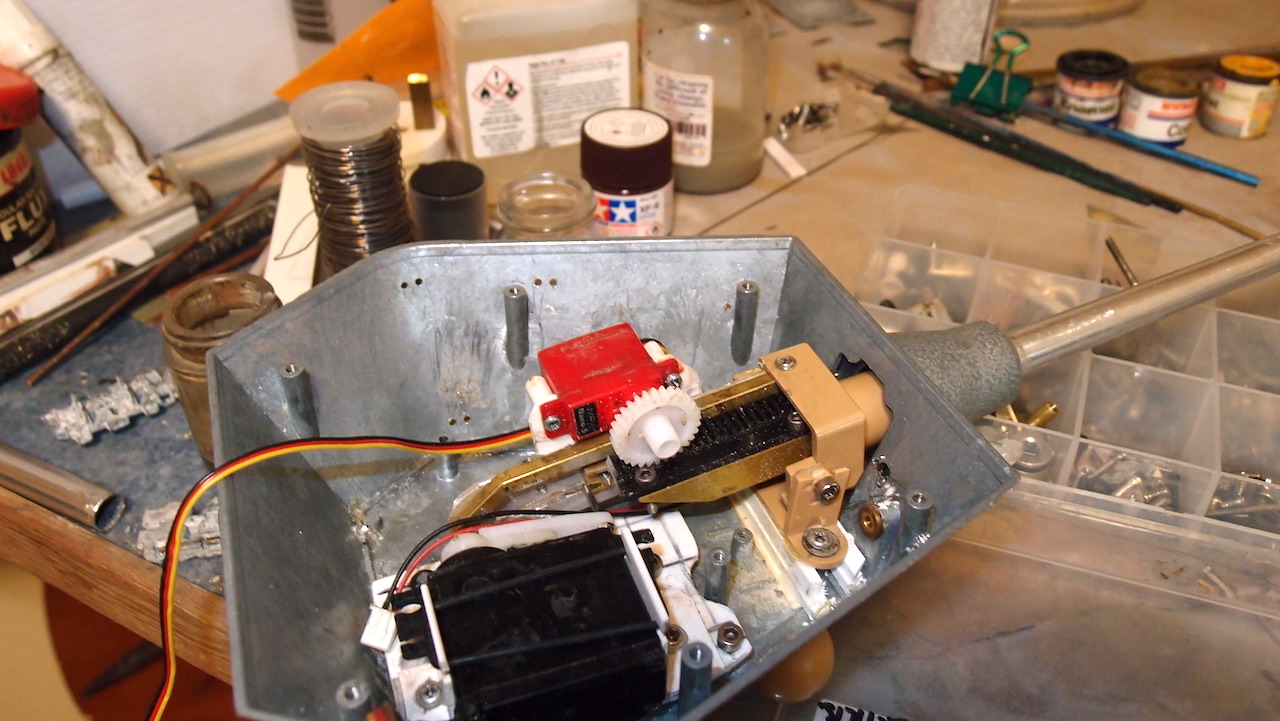

Fitted in need to trim little off the plastic turret base

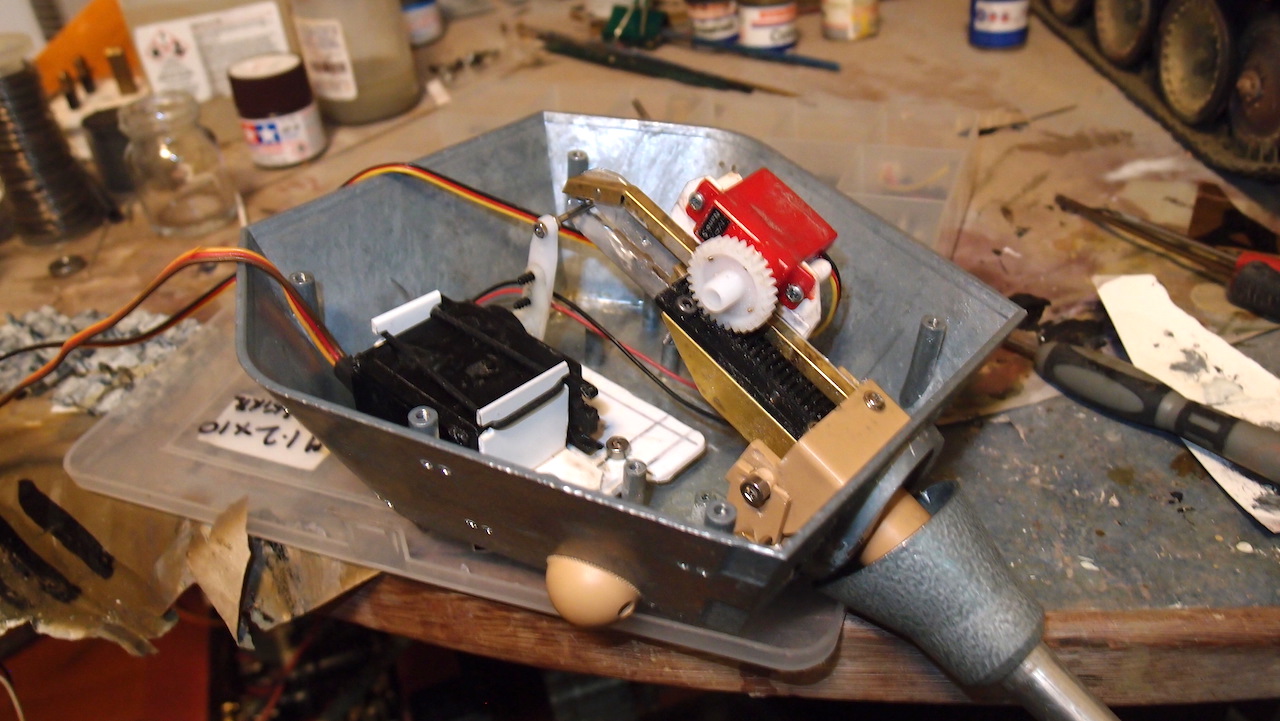

No binding of the elevation now
Extended the servo lever for full range.
Lower position
Max elevation

ronnie42
Sergeant

Posts: 562
Joined: Sun Feb 04, 2018 12:00 pm

Postby Jimster » Thu Jan 02, 2020 1:37 pm

Man, that’s some impressive engineering! You certainly have a wide spectrum of skillsets. This hobby seems to offer a lot of opportunities to improvise and alter things to fit our needs.

Jimster
Staff Sergeant

Posts: 796
Joined: Mon Dec 10, 2018 2:51 am
Location: Illinois

Postby Soeren » Thu Jan 02, 2020 4:06 pm

That is really nice and looks like a good solution for my G as well. Where did you get the cogwheel and the toothed strip from?
User avatar
Soeren
Warrant Officer 2nd Class

Posts: 1202
Joined: Sat Oct 22, 2016 3:27 pm

Postby ronnie42 » Thu Jan 02, 2020 4:59 pm

Hi Soeren Have a look on ebay https://www.ebay.co.uk/itm/34-Kinds-Pla ... SwdRparOd4 The best toothed strips have a flat each side of the teeth and you are able to make a guide for it to sit in and the servo cog does not slip.

ronnie42
Sergeant

Posts: 562
Joined: Sun Feb 04, 2018 12:00 pm

Postby ronnie42 » Fri Jan 03, 2020 10:55 pm

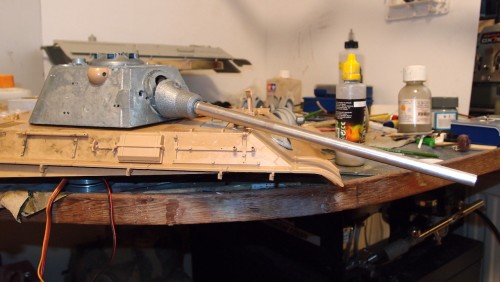

Recoil and elevation setup. The top of the mantlet is wrong shape if you want +15 and -8 or +20 and -10 degrees for the elevation/ depression and fit the debris guard . Going to reshape the mantlet, its RC so getting the mechanics correct is a must before getting everything else done. Found out recoil was 420mm ? so thats 26.25 scale, had to fit a larger cog for the recoil travel.
Mantlet will foul the debris guard.
checking elevation.
checking depression.
Debris guard is pushed up . Recoil mark barrel should be out another 1 or 2 mm better have another servo adjust.

ronnie42
Sergeant

Posts: 562
Joined: Sun Feb 04, 2018 12:00 pm

Postby HERMAN BIX » Fri Jan 03, 2020 11:01 pm

Love your work. Top job in the turret set up mate.
User avatar
HERMAN BIX
Lieutenant-Colonel

Posts: 6530
Joined: Sun Jan 12, 2014 1:15 am
Location: Gold Coast,Australia

Postby ronnie42 » Mon Jan 06, 2020 8:48 pm

Thinking the mantlet was designed by the person who done the JP one . Going to make one and move gun pivot position . Pictures are worth a thousand words and save rambling on about the build.
Will this work.
No turning back now
Need more space , cut away some of the front
Reshaped gun mount to a curved section
Pivot points further out and bearings in a square housing.
cutting angles in mantlet
Top is good can fit debris guard
Some filler to hide the lines and then Mr Surfacer
Gun pivot point 10mm forward , bearings in housings easy to fit

ronnie42
Sergeant

Posts: 562
Joined: Sun Feb 04, 2018 12:00 pm

Postby 43rdRecceReg » Mon Jan 06, 2020 8:54 pm

:thumbup: :thumbup: I'm particularly impressed by the elegance, and simplicity, of the micro-servo recoil solution, Ronnie. o- Your arrangement could also be a good fit for my Comet :thumbup: Cheers!
User avatar
43rdRecceReg
Captain

Posts: 4565
Joined: Fri Jul 31, 2015 11:38 am
Location: North West Highlands, Scotland

Postby ronnie42 » Wed Jan 08, 2020 12:52 pm

Turret done , fixed mg has no guard over mg hole , no gunners sight filled in and made new gas brackets plastic ones far too thick .
Front fixed.
brackets look scale now
fixed elevation servo gear position.

ronnie42
Sergeant

Posts: 562
Joined: Sun Feb 04, 2018 12:00 pm

Postby ronnie42 » Thu Jan 09, 2020 11:37 am

Turret, gun ,basket and sub assemblies ready for some paint.
wrong panther , where is the delete

ronnie42
Sergeant

Posts: 562
Joined: Sun Feb 04, 2018 12:00 pm

Postby ronnie42 » Sun Jan 12, 2020 9:35 pm

Now the turret is fixed lets unfix the upper hull. Started the brass work , going for hull side damage . The F was a paper panzer , so war drags on and fighting in villages and towns lasts until late 46. Will have turns damage , corners etc. 1st up the jack block holder.
Urban damage.

ronnie42
Sergeant

Posts: 562
Joined: Sun Feb 04, 2018 12:00 pm

Postby ronnie42 » Mon Jan 13, 2020 11:36 pm

Some more damage to the front tool rack.
Thats the RHS side roughed up.

ronnie42
Sergeant

Posts: 562
Joined: Sun Feb 04, 2018 12:00 pm

Postby ronnie42 » Tue Jan 14, 2020 8:58 pm

This is another fix required ,don't like the shadow. Will move cupola or reshape to turret roof edge . Couple of pics on web show rear and cupola appears to be on the edge of roof.
Shadow cant be correct

ronnie42
Sergeant

Posts: 562
Joined: Sun Feb 04, 2018 12:00 pm

Postby ronnie42 » Tue Jan 14, 2020 10:31 pm

moved it cut half the locating lip away.
Attachments
refitted
no shadow sits just on edge of the 3 sides.
