Srcatch build all brass T-34

This section is for builds that are not strictly Tamiya or Heng Long. For instance, replacing the electronics from a WSN or Matorro, or even a scratch-build.

Postby walter » Fri May 24, 2019 11:00 am

Long time ago I came across an East German hobby magazine that included a Russian T-34 model tank plan.
The plan was quite simplified for a wooden build model.
At the time that model plan was not very appealing,till years later when I had access to a lot of brass,that the idea came to build that tank with some modifications all in brass.
And so it started.
The first parts I made were the tracks. for the links I used 10x3mm flat steel. I had to make 4 jigs to machine and drill each of the 122 links. For the driving teeth i used 6mm dia. brass and filed the teeth to shape.
The traction part of the link had 2mm square brass rod centrally soft soldered on.
At the finish I had all the links zinc galvanized.
All the parts of the tank body were cut to shape from 1mm sheet brass and soft soldered together.
By that time I felt a bit adventurous and thought the tank should have reel bullet firing gun.
The gun barrel came from a 4mm caliber air rifle,it was to be fired manually through the commanders hatch and for loading the gun I made a hatch in the right side of the turret.
The tank was to be a static model and I made no provisions to have it radio controlled.
The gun could be raised and lowered by a screw at the top of the turret and for turning the turret I could insert a cranking handle at bottom of the right hand fuel tank.
Here are some pictures.

walter
Corporal

Posts: 405
Joined: Fri Mar 10, 2017 12:53 pm
Location: Geelong Australia

Postby walter » Fri May 24, 2019 11:04 am

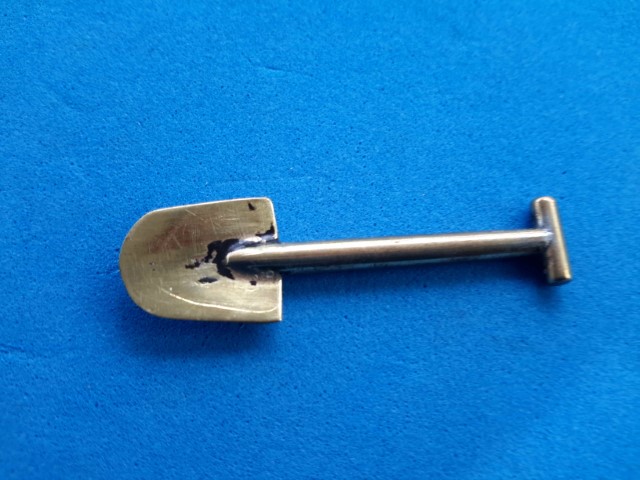

Spade
Attachments
IMG_20190514_141914 (Small).jpg

walter
Corporal

Posts: 405
Joined: Fri Mar 10, 2017 12:53 pm
Location: Geelong Australia

Postby walter » Fri May 24, 2019 11:05 am

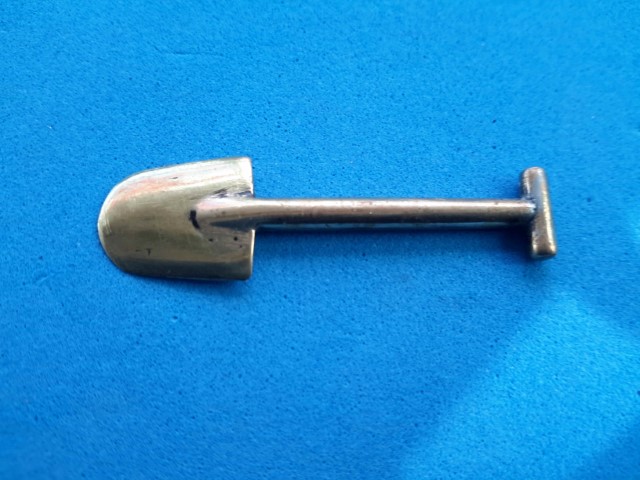

Other side
Attachments
IMG_20190514_141853 (Small).jpg

walter
Corporal

Posts: 405
Joined: Fri Mar 10, 2017 12:53 pm
Location: Geelong Australia

Postby walter » Fri May 24, 2019 11:06 am

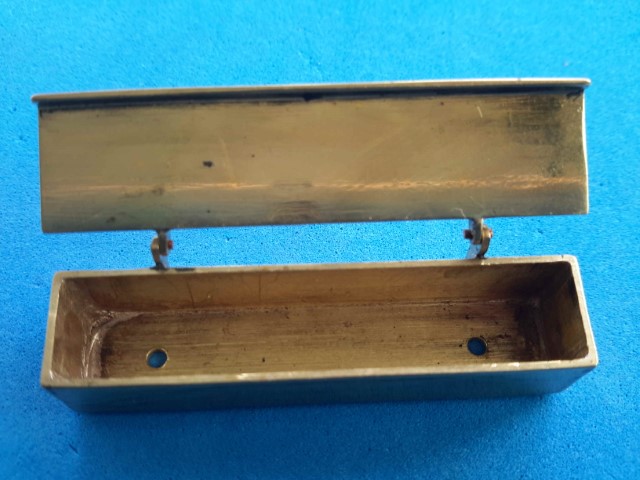

Toolbox
Attachments
IMG_20190514_141750 (Small).jpg
IMG_20190514_141750 (Small).jpg (88.55 KiB) Viewed 667 times

walter
Corporal

Posts: 405
Joined: Fri Mar 10, 2017 12:53 pm
Location: Geelong Australia

Postby walter » Fri May 24, 2019 11:07 am

Other side
Attachments
IMG_20190514_141549 (Small).jpg

walter
Corporal

Posts: 405
Joined: Fri Mar 10, 2017 12:53 pm
Location: Geelong Australia

Postby walter » Fri May 24, 2019 11:09 am

Idler wheel
Attachments
IMG_20190514_124336 (Small).jpg
IMG_20190514_124336 (Small).jpg (76.27 KiB) Viewed 664 times

walter
Corporal

Posts: 405
Joined: Fri Mar 10, 2017 12:53 pm
Location: Geelong Australia

Postby walter » Fri May 24, 2019 11:11 am

Driving wheel
Attachments
IMG_20190514_124606 (Small).jpg
IMG_20190514_124606 (Small).jpg (87.07 KiB) Viewed 663 times

walter
Corporal

Posts: 405
Joined: Fri Mar 10, 2017 12:53 pm
Location: Geelong Australia

Postby walter » Fri May 24, 2019 11:12 am

Other view
Attachments
IMG_20190514_124430 (Small).jpg
IMG_20190514_124430 (Small).jpg (83.63 KiB) Viewed 661 times

walter
Corporal

Posts: 405
Joined: Fri Mar 10, 2017 12:53 pm
Location: Geelong Australia

Postby walter » Fri May 24, 2019 11:13 am

Road wheel
Attachments
IMG_20190514_124232 (Small).jpg
IMG_20190514_124232 (Small).jpg (77.53 KiB) Viewed 660 times

walter
Corporal

Posts: 405
Joined: Fri Mar 10, 2017 12:53 pm
Location: Geelong Australia

Postby walter » Fri May 24, 2019 11:16 am

Another view
Attachments
IMG_20190514_124025 (Small).jpg
IMG_20190514_124025 (Small).jpg (89.03 KiB) Viewed 659 times

walter
Corporal

Posts: 405
Joined: Fri Mar 10, 2017 12:53 pm
Location: Geelong Australia

Postby walter » Fri May 24, 2019 11:19 am

Track
Attachments
IMG_20190514_125902 (Small).jpg

walter
Corporal

Posts: 405
Joined: Fri Mar 10, 2017 12:53 pm
Location: Geelong Australia

Postby walter » Fri May 24, 2019 11:20 am

Track
Attachments
IMG_20190514_125629 (Small).jpg

walter
Corporal

Posts: 405
Joined: Fri Mar 10, 2017 12:53 pm
Location: Geelong Australia

Postby walter » Fri May 24, 2019 11:22 am

Turret
Attachments
IMG_20190509_124144 (Small).jpg

walter
Corporal

Posts: 405
Joined: Fri Mar 10, 2017 12:53 pm
Location: Geelong Australia

Postby walter » Fri May 24, 2019 11:24 am

Turret under side
Attachments
IMG_20190509_123928 (Small).jpg
IMG_20190509_123928 (Small).jpg (85.06 KiB) Viewed 662 times

walter
Corporal

Posts: 405
Joined: Fri Mar 10, 2017 12:53 pm
Location: Geelong Australia

Postby walter » Fri May 24, 2019 11:25 am

Turret gear
Attachments
IMG_20190509_124743 (Small).jpg
IMG_20190509_124743 (Small).jpg (73.06 KiB) Viewed 660 times

walter
Corporal

Posts: 405
Joined: Fri Mar 10, 2017 12:53 pm
Location: Geelong Australia

Postby walter » Fri May 24, 2019 11:26 am

The other side
Attachments
IMG_20190509_124801 (Small).jpg
IMG_20190509_124801 (Small).jpg (72.07 KiB) Viewed 659 times

walter
Corporal

Posts: 405
Joined: Fri Mar 10, 2017 12:53 pm
Location: Geelong Australia

Postby walter » Fri May 24, 2019 11:28 am

Gears mounted
Attachments
IMG_20190508_123613 (Small).jpg

walter
Corporal

Posts: 405
Joined: Fri Mar 10, 2017 12:53 pm
Location: Geelong Australia

Postby walter » Fri May 24, 2019 11:29 am

Gun with mounting brackets
Attachments
20190511_144039 (Small).jpg
20190511_144039 (Small).jpg (76.49 KiB) Viewed 656 times

walter
Corporal

Posts: 405
Joined: Fri Mar 10, 2017 12:53 pm
Location: Geelong Australia

Postby walter » Fri May 24, 2019 11:30 am

Fully assembled
Attachments
20190511_144020 (2) (Small).jpg
20190511_144020 (2) (Small).jpg (85.03 KiB) Viewed 655 times

walter
Corporal

Posts: 405
Joined: Fri Mar 10, 2017 12:53 pm
Location: Geelong Australia

Postby walter » Fri May 24, 2019 11:31 am

Another view
Attachments
20190511_144101 (2) (Small).jpg
20190511_144101 (2) (Small).jpg (80.85 KiB) Viewed 654 times

walter
Corporal

Posts: 405
Joined: Fri Mar 10, 2017 12:53 pm
Location: Geelong Australia
