T-35A Soviet Heavy Tank

This section is for builds that are not strictly Tamiya or Heng Long. For instance, replacing the electronics from a WSN or Matorro, or even a scratch-build.

Postby ilgar ismailov » Tue Jan 22, 2019 6:37 am

Hi from Baku, Azerbaijan!
Began work on T-35 of 1938. Many thanks to our friend from Canada, Dean Rauch! :clap: He provided to STL files for T-35! It considerably facilitated to me work.
"The T-35A tank is one of history’s strangest tanks – often seen crawling across the Soviet inter-war era parade squares. This tank grabbed the hearts, souls, and imaginations of the Soviet people and foreign military attachés alike. It was one of the many proud achievements of Soviet industrialisation – its image appeared on posters, films, and even medals and awards."
This video of the tank made by Dean Rauch.
phpBB [video]
User avatar
ilgar ismailov
Lance Corporal

Posts: 239
Joined: Tue Jan 10, 2017 7:29 am
Location: Azerbaijan Republik, Baku sity

Postby ilgar ismailov » Tue Jan 22, 2019 6:52 am

midlife306 wrote:Hi Ilgar,
The T35 looks brilliant!!!!
Any chance you could show a close up of one of the suspension bogies please, I’m just in the middle of working out how to fit coil overs to mine.
Oh & a close up of the top of the main turret please.
Cheers
Wayne


Sent from my iPhone using Tapatalk

Thanks a lot.
Of course I will show everything if it is interesting.

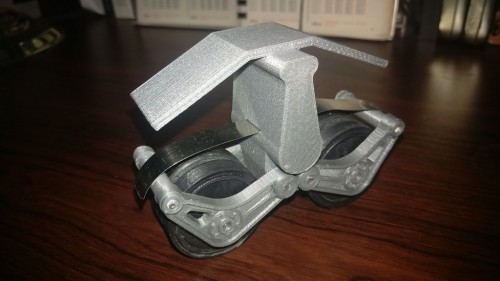

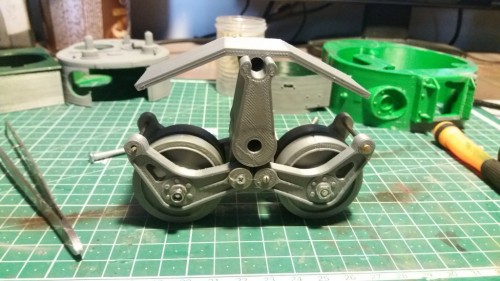

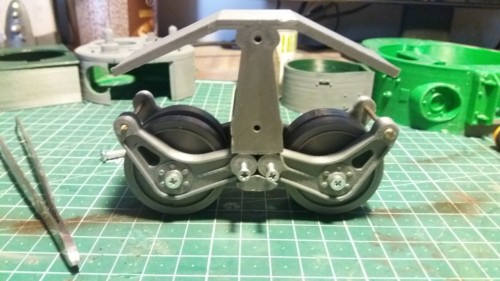

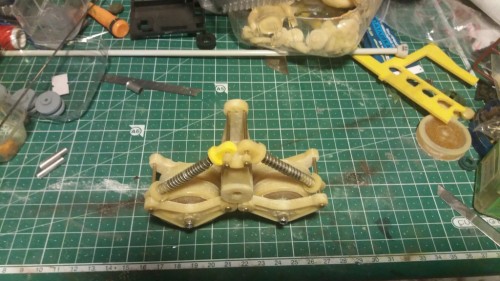

suspension from Dean
suspension from Dean
suspension from Dean

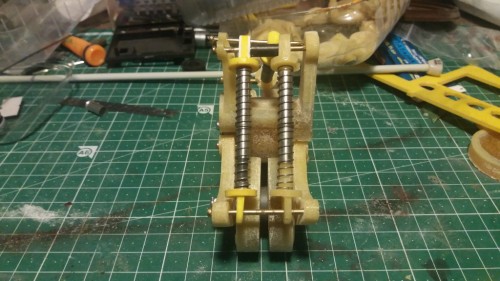

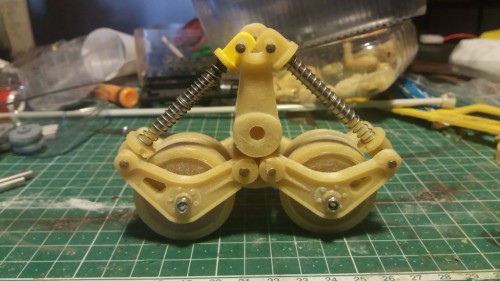

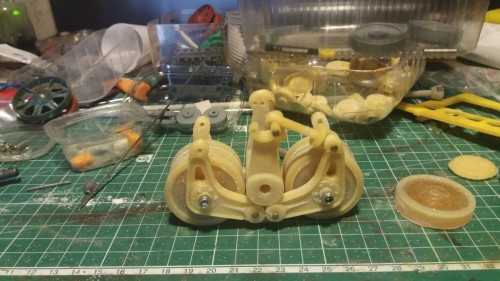

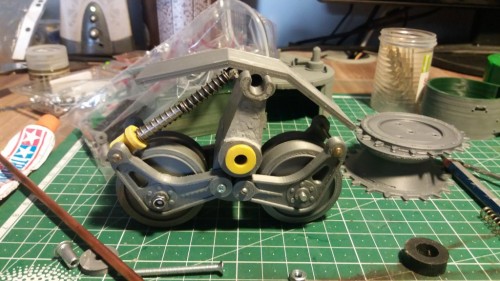

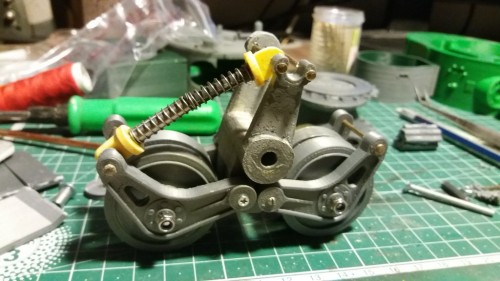

my completions
my completions
my completions
User avatar
ilgar ismailov
Lance Corporal

Posts: 239
Joined: Tue Jan 10, 2017 7:29 am
Location: Azerbaijan Republik, Baku sity

Postby ilgar ismailov » Tue Jan 22, 2019 6:59 am

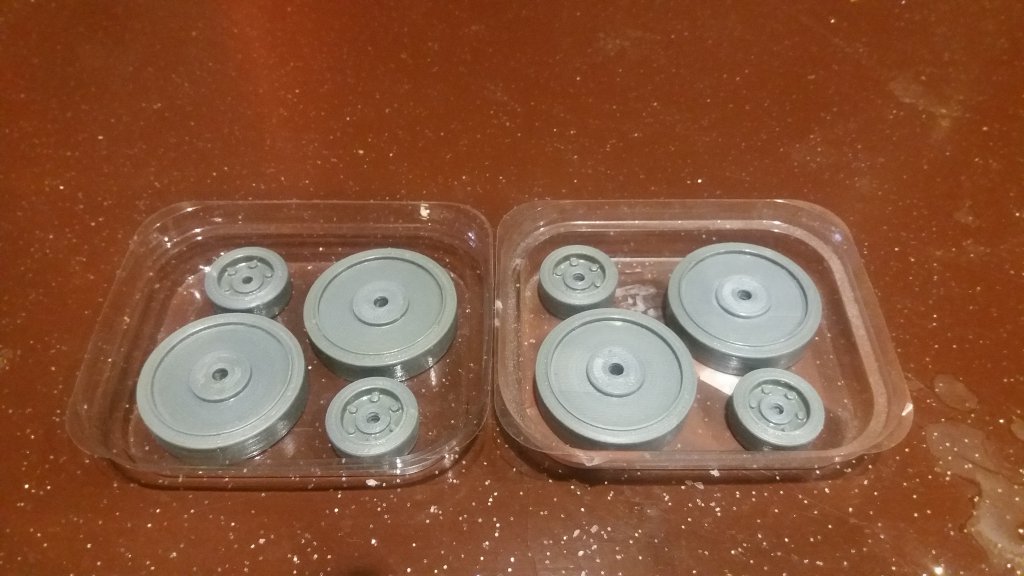

To print on the 3D printer I have no time. I cast parts necessary to me, from plastic.


User avatar
ilgar ismailov
Lance Corporal

Posts: 239
Joined: Tue Jan 10, 2017 7:29 am
Location: Azerbaijan Republik, Baku sity

Postby ilgar ismailov » Tue Jan 22, 2019 7:09 am

Small video.
phpBB [video]
User avatar
ilgar ismailov
Lance Corporal

Posts: 239
Joined: Tue Jan 10, 2017 7:29 am
Location: Azerbaijan Republik, Baku sity

Postby ilgar ismailov » Tue Jan 22, 2019 7:18 am

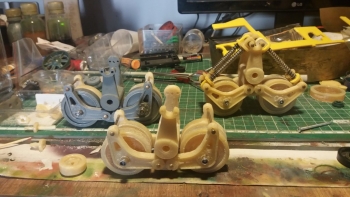

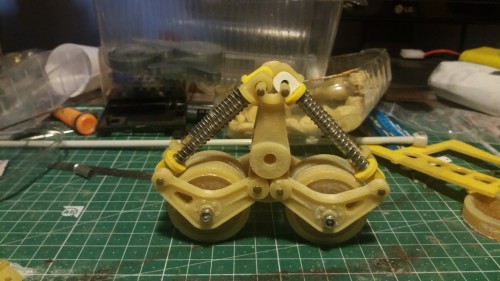

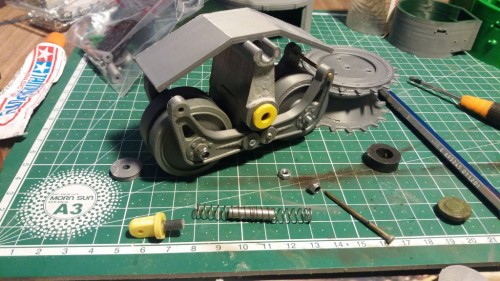

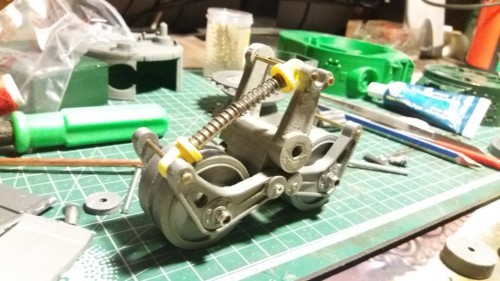

My suspension.
Attachments
User avatar
ilgar ismailov
Lance Corporal

Posts: 239
Joined: Tue Jan 10, 2017 7:29 am
Location: Azerbaijan Republik, Baku sity

Postby HERMAN BIX » Tue Jan 22, 2019 12:05 pm

I swear you and Mr Turner are brothers-from-another-Mother !!!
I am assuming a T34 'Mickey-Mouse' would be just boring for you looking at the wonders you have made up to now !!
User avatar
HERMAN BIX
Major

Posts: 6101
Joined: Sun Jan 12, 2014 1:15 am
Location: Gold Coast,Australia

Postby Kaczor » Tue Jan 22, 2019 3:59 pm

I love those multi-turret useless Russian monters ;)
User avatar
Kaczor
Private

Posts: 55
Joined: Fri May 18, 2018 9:58 am
Location: Ciechanow, Poland

Postby Pak36 » Tue Jan 22, 2019 8:36 pm

@ilgar ismailov
what do you use to cast those parts with? I want to do something similar for a project where I wuold 3D print a master, smooth it...then use it to cast with. Never done it before...and wondered what I need to make the moulds, and what I need to cast with.

Pak36
Private

Posts: 97
Joined: Thu Nov 29, 2012 10:21 pm

Postby midlife306 » Wed Jan 23, 2019 2:58 am

Thanks for the pics Ilgar, brilliant work
Cheers
Wayne


Sent from my iPad using Tapatalk
User avatar
midlife306
Warrant Officer 1st Class

Posts: 1508
Joined: Sun Aug 27, 2017 10:34 am

Postby ilgar ismailov » Wed Jan 23, 2019 7:03 am

HERMAN BIX wrote:I swear you and Mr Turner are brothers-from-another-Mother !!!
I am assuming a T34 'Mickey-Mouse' would be just boring for you looking at the wonders you have made up to now !!

:haha:

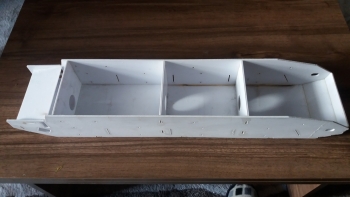

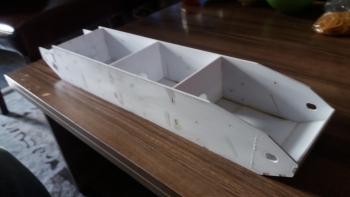

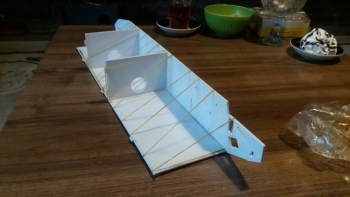

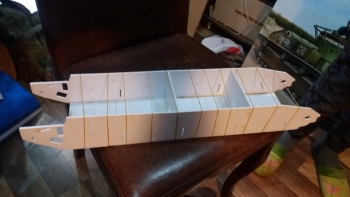

Case of a tank.
Attachments
User avatar
ilgar ismailov
Lance Corporal

Posts: 239
Joined: Tue Jan 10, 2017 7:29 am
Location: Azerbaijan Republik, Baku sity

Postby ilgar ismailov » Wed Jan 23, 2019 7:31 am

Kaczor wrote:I love those multi-turret useless Russian monters ;)


Not such they useless were. As of 22.05.1941, in the Red Army there were 48 T-35 tanks which were adopted by the 67 and 68 tank regiments of the thirty fourth tank division of the Kiev OVO.
At the same time only 7 tanks lost directly in fights, 6 were under repair at the time of the beginning of military operations, and others 35 failed because of malfunctions, broke during the march and were destroyed or thrown by crews.

User avatar
ilgar ismailov
Lance Corporal

Posts: 239
Joined: Tue Jan 10, 2017 7:29 am
Location: Azerbaijan Republik, Baku sity

Postby ilgar ismailov » Wed Jan 23, 2019 7:44 am

Pak36 wrote:@ilgar ismailov
what do you use to cast those parts with? I want to do something similar for a project where I wuold 3D print a master, smooth it...then use it to cast with. Never done it before...and wondered what I need to make the moulds, and what I need to cast with.

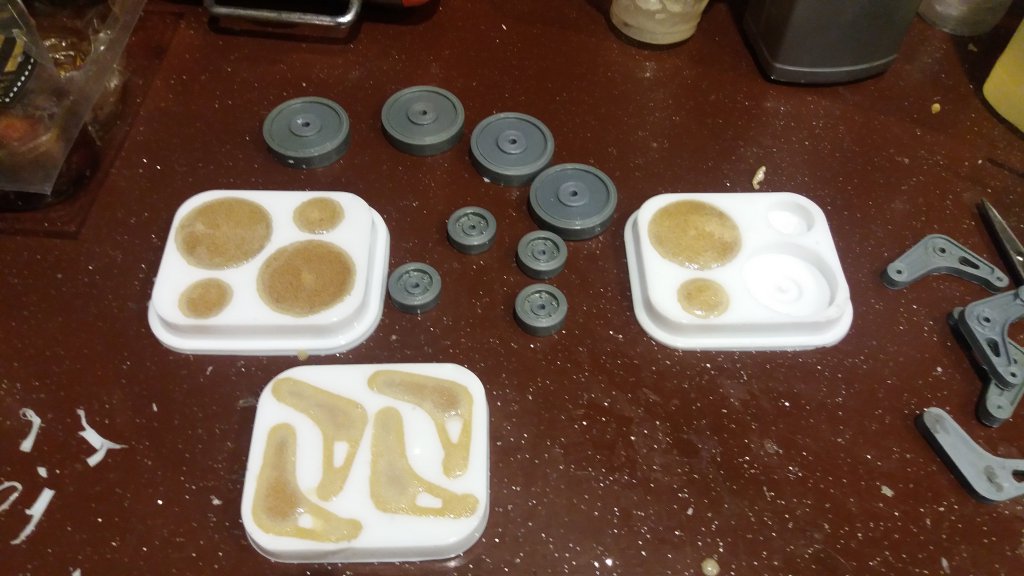

At first I do the master model on the 3D printer or manually. Then I process it and I do a form of silicone. Later in a form I fill in two-component plastic.




User avatar
ilgar ismailov
Lance Corporal

Posts: 239
Joined: Tue Jan 10, 2017 7:29 am
Location: Azerbaijan Republik, Baku sity

Postby ilgar ismailov » Wed Jan 23, 2019 7:49 am

midlife306 wrote:Thanks for the pics Ilgar, brilliant work
Cheers
Wayne


Sent from my iPad using Tapatalk

Please!
Best regards,
Attachments
User avatar
ilgar ismailov
Lance Corporal

Posts: 239
Joined: Tue Jan 10, 2017 7:29 am
Location: Azerbaijan Republik, Baku sity

Postby ilgar ismailov » Thu Jan 24, 2019 6:27 am

Case of a tank and cooling system.
Attachments
User avatar
ilgar ismailov
Lance Corporal

Posts: 239
Joined: Tue Jan 10, 2017 7:29 am
Location: Azerbaijan Republik, Baku sity

Postby midlife306 » Thu Jan 24, 2019 11:35 am

Ilgar, you’re an absolute star
I’ve been searching the internet for ages trying to find out what the triangular parts do, as on Dean’s design they prevent the fan cover sitting down correctly. Now that I know that they move to control the airflow I can modify my 1/6 scale version so that they operate as they should!
Thank you very much
Cheers
Wayne


Sent from my iPhone using Tapatalk
User avatar
midlife306
Warrant Officer 1st Class

Posts: 1508
Joined: Sun Aug 27, 2017 10:34 am

Postby ilgar ismailov » Mon Jan 28, 2019 11:22 am

Thanks a lot! :wave:
phpBB [video]
User avatar
ilgar ismailov
Lance Corporal

Posts: 239
Joined: Tue Jan 10, 2017 7:29 am
Location: Azerbaijan Republik, Baku sity

Postby ilgar ismailov » Wed Feb 13, 2019 8:20 am

There are advances on the T-35A project. Remade a lot of things, remained even more.
Attachments
User avatar
ilgar ismailov
Lance Corporal

Posts: 239
Joined: Tue Jan 10, 2017 7:29 am
Location: Azerbaijan Republik, Baku sity

Postby ilgar ismailov » Wed Feb 13, 2019 9:07 am

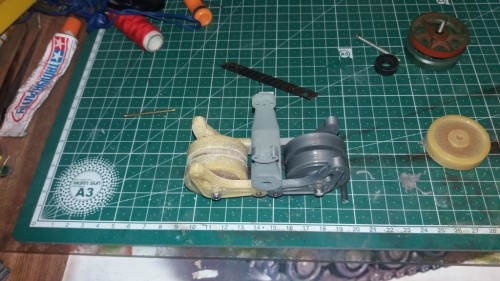

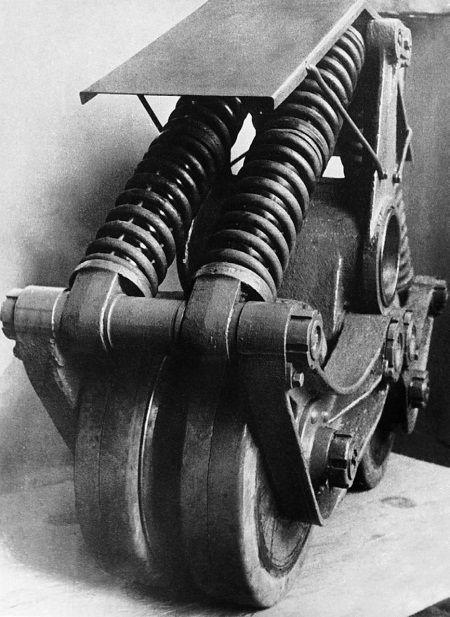

Carts of basic skating rinks had to be remade.The carriage of the cart has only two vertical racks, and there have to be three.
Attachments
User avatar
ilgar ismailov
Lance Corporal

Posts: 239
Joined: Tue Jan 10, 2017 7:29 am
Location: Azerbaijan Republik, Baku sity

Postby ilgar ismailov » Thu Feb 14, 2019 7:17 am

I continue work on the right side of a tank
Attachments
User avatar
ilgar ismailov
Lance Corporal

Posts: 239
Joined: Tue Jan 10, 2017 7:29 am
Location: Azerbaijan Republik, Baku sity

Postby square4 » Thu Feb 14, 2019 8:12 am

Superb work being done , looking forward to finished model. :clap: :clap: :clap:
User avatar
square4
Private

Posts: 83
Joined: Thu Jun 21, 2018 11:45 am
Location: Southport
