Russian MB-LT Army Surplus Logging Machine

This section is for builds that are not strictly Tamiya or Heng Long. For instance, replacing the electronics from a WSN or Matorro, or even a scratch-build.

Postby wibblywobbly » Wed Dec 05, 2018 7:05 pm

I've always enjoyed watching these You Tube videos of ex-army tracked vehicles ploughing through the Siberian wasteland. Nothing seems to stop them. The MB-LT and it's variants seem to be favourites for logging and supply vehicles so seeing as I can't buy one I am having a go at making one.

No armaments, and a modified rear hull should give it that Mad Max look, and if I can make it amphibious so much the better. It should be an interesting project if nothing else! :/

phpBB [video]

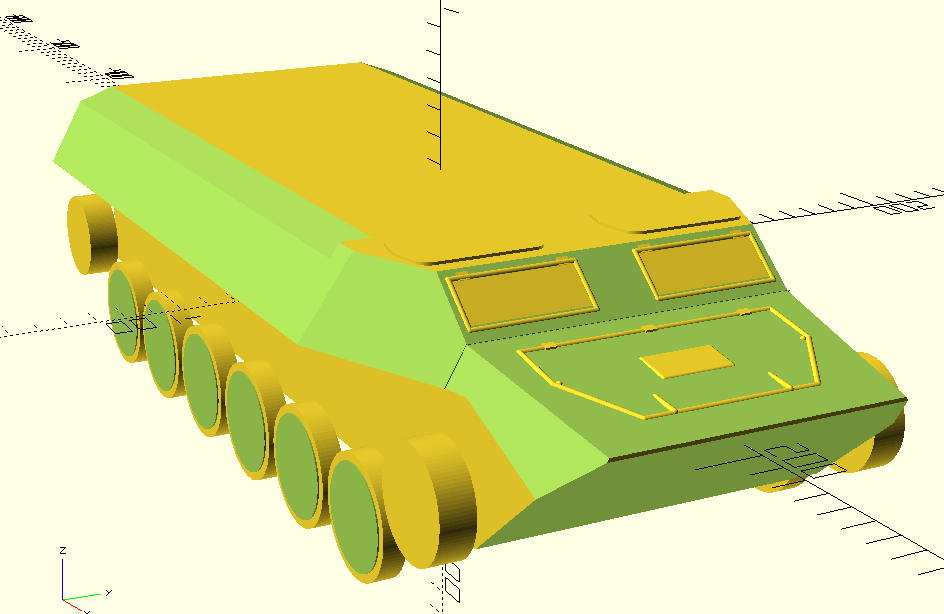

and this is where I am at the moment.
Attachments
User avatar
wibblywobbly
Major

Posts: 6066
Joined: Fri Oct 17, 2008 9:30 am
Location: South Wales Valley

Postby Son of a gun-ner » Wed Dec 05, 2018 7:09 pm

LOL, trust you to find something obscure. How about turning it into a mad max machine, or a moon buggy to compliment one of your past builds ;)
User avatar
Son of a gun-ner
TOTM Admin

Posts: 1978
Joined: Sun May 07, 2017 8:49 pm
Location: Surrey UK

Postby wibblywobbly » Wed Dec 05, 2018 7:13 pm

I will be happy if it runs reliably! lol. Hopefully it will, I will use it as a mud plugging off road machine. :wave:
User avatar
wibblywobbly
Major

Posts: 6066
Joined: Fri Oct 17, 2008 9:30 am
Location: South Wales Valley

Postby Son of a gun-ner » Wed Dec 05, 2018 7:21 pm

Oooh, red cans and 3s lipos then ;)
User avatar
Son of a gun-ner
TOTM Admin

Posts: 1978
Joined: Sun May 07, 2017 8:49 pm
Location: Surrey UK

Postby wibblywobbly » Thu Dec 06, 2018 6:52 pm

I am leaning towards nylon gearboxes as they will be immune to water getting on the gears and corroding them, but I may have to go the low ratio route. I can solve that problem when I get to it... 8O

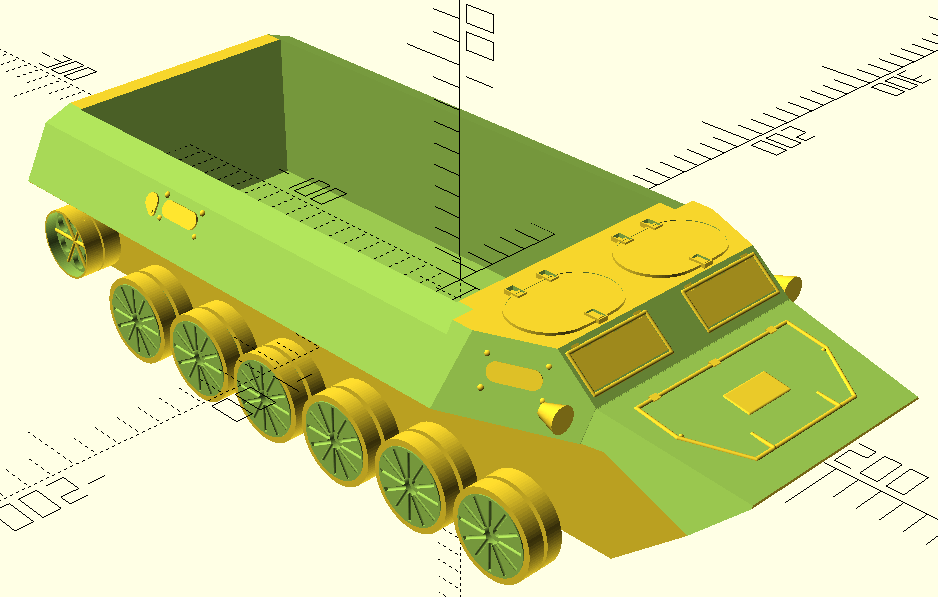

Progress so far, it will be cut in half and the front and rear printed separately, I loaded the whole thing into Cura and it would take more than 5 days to print it. 8O 8O 8O
Attachments
User avatar
wibblywobbly
Major

Posts: 6066
Joined: Fri Oct 17, 2008 9:30 am
Location: South Wales Valley

Postby wibblywobbly » Fri Dec 14, 2018 11:08 am

It's coming along, hours and hours of printing!
Attachments
User avatar
wibblywobbly
Major

Posts: 6066
Joined: Fri Oct 17, 2008 9:30 am
Location: South Wales Valley

Postby Son of a gun-ner » Fri Dec 14, 2018 11:22 am

Wow, well done Rob :clap:

Looks like you have plenty of room for the electronics, but that sloping front looks like you're going to have fun fitting those gearboxes :think:
User avatar
Son of a gun-ner
TOTM Admin

Posts: 1978
Joined: Sun May 07, 2017 8:49 pm
Location: Surrey UK

Postby wibblywobbly » Fri Dec 14, 2018 1:01 pm

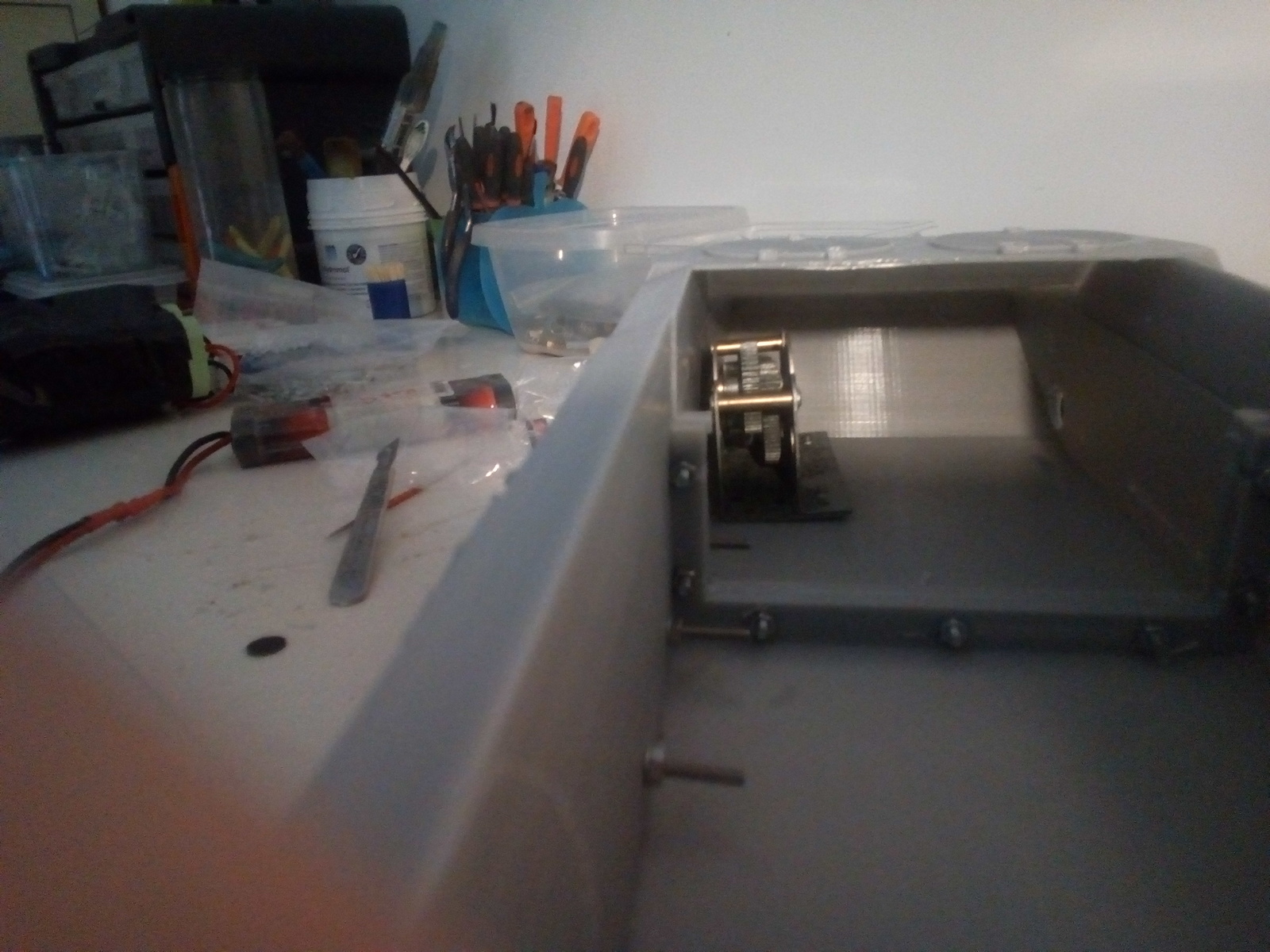

Fear not my friend, the gearboxes are a perfect fit, even the high/low ones, it's all in the design. :thumbup:
Attachments
User avatar
wibblywobbly
Major

Posts: 6066
Joined: Fri Oct 17, 2008 9:30 am
Location: South Wales Valley

Postby Son of a gun-ner » Fri Dec 14, 2018 2:49 pm

Wow, that is roomy inside :thumbup:
User avatar
Son of a gun-ner
TOTM Admin

Posts: 1978
Joined: Sun May 07, 2017 8:49 pm
Location: Surrey UK

Postby lmcq11 » Sun Dec 23, 2018 1:02 am

That was a funny video. This vehicle seems a bit heavy for civilian tasks... It may not have any armament but it sure does destroy everything on its way. This will be a fun RC machine, no need to fear something breaking.

lmcq11
Sergeant

Posts: 730
Joined: Mon Dec 19, 2016 8:42 pm
Location: Quebec, Canada

Postby wibblywobbly » Sun Dec 23, 2018 8:16 am

The plan is to make it as strong as possible, designing it so that there are as few parts as possible. It's all done apart from needing a pair of short shaft gearboxes. I reduced the parts list to:

Rear hull
Front hull
Front upper hull
Roadwheels x 12
Idler x 2
Idler spacers x 2
Sprocket x2
Suspension arms x 12
Stainless suspension springs (bought them in 100mm lengths and cut 12)
Suspension spring mounts x 2
Panzer III/IV tracks.

It's all held together with stainless hex bolts, stainless washers and nuts, so can be dismantled if it ever needs maintenance. It also now has smaller sprockets. Once the Festive postal chaos is out of the way I can order some gearboxes, and get it completed. :thumbup:
User avatar
wibblywobbly
Major

Posts: 6066
Joined: Fri Oct 17, 2008 9:30 am
Location: South Wales Valley

Postby wibblywobbly » Sat Dec 29, 2018 1:14 pm

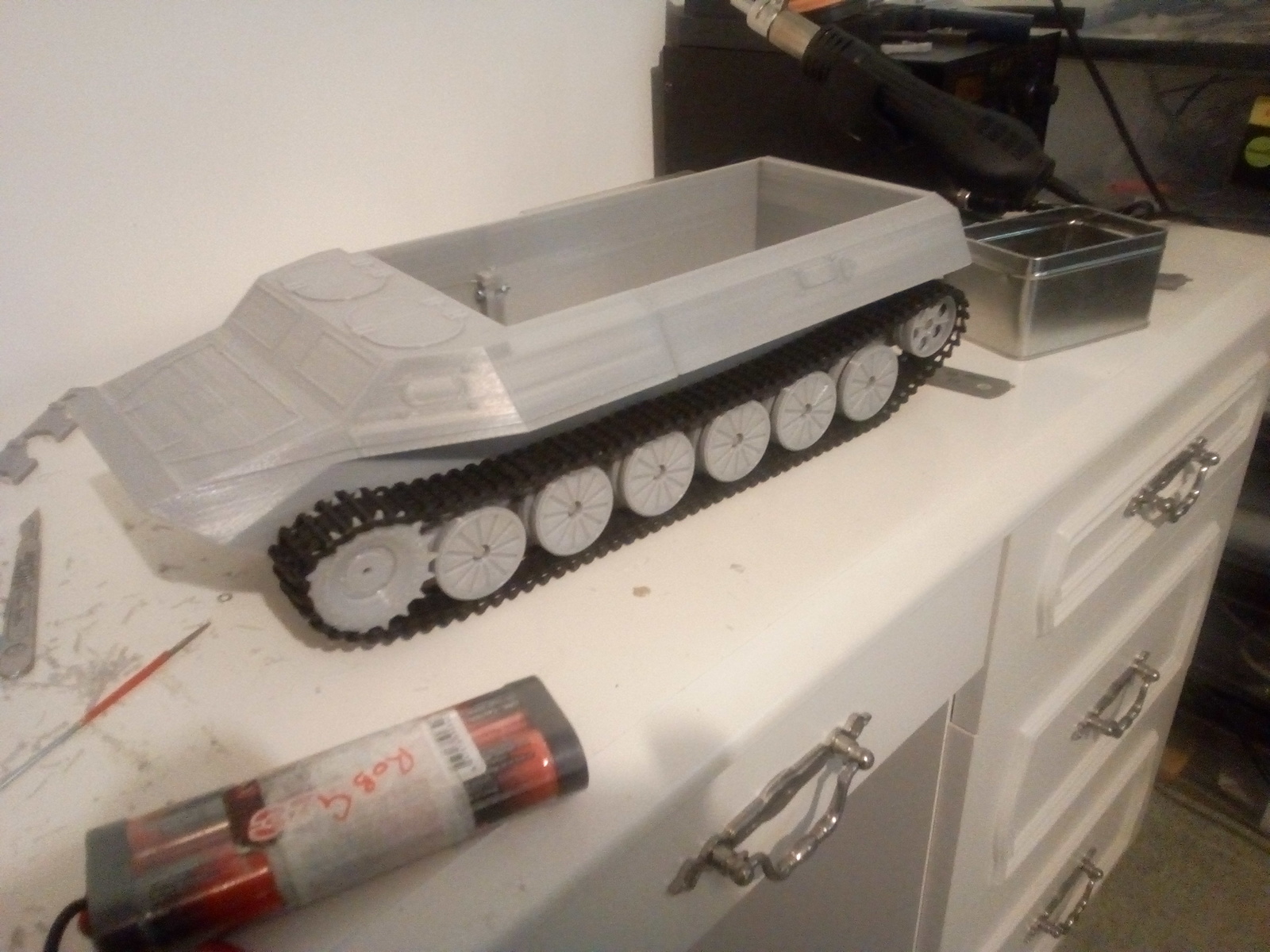

Still progressing, need a pair of short shaft gearboxes to get it up and running, but before I can fit them I need to dismantle the whole thing and paint it. The best/easiest/fastest trick I know for 3D printed parts is plastic bumper paint. In the UK Halfords do it for less than £7 a can, and it is amazing for smoothing surfaces.
Attachments
User avatar
wibblywobbly
Major

Posts: 6066
Joined: Fri Oct 17, 2008 9:30 am
Location: South Wales Valley

Postby AlwynTurner » Sat Dec 29, 2018 1:16 pm

Love the build Rob, and great tip about the paint :clap: :thumbup:

Alwyn :thumbup: :wave:
User avatar
AlwynTurner
Warrant Officer 1st Class

Posts: 2172
Joined: Thu Oct 23, 2014 10:47 am
Location: Chapel-en-le-Frith, Derbyshire

Postby wibblywobbly » Sat Dec 29, 2018 1:51 pm

This truck is 3D printed and sprayed firstly with the bumper paint, and then a gloss coat. It's as hard as nails, I've rolled it down quarry cliff faces over rocks and hardly scratched it. It's silky smooth high gloss.
Attachments
User avatar
wibblywobbly
Major

Posts: 6066
Joined: Fri Oct 17, 2008 9:30 am
Location: South Wales Valley

Postby Mishka » Sat Dec 29, 2018 1:58 pm

Looking damn good so far, we need more "late soviet" items to go with my TOPOL truck :D

Would be curious to do a test of just how strong the body is with the bumper paint/gloss though as I see alot of people take care of RC models as if they are super fragile wine glasses

Mishka
Recruit

Posts: 26
Joined: Wed Dec 05, 2018 5:58 pm
Location: London

Postby wibblywobbly » Sat Dec 29, 2018 2:11 pm

The shell on the MB is 2-3mm thick, so it's as strong as it can be. I had to print the front and rear separately but they are glued and bolted together to make it all one solid lower hull. :thumbup:
User avatar
wibblywobbly
Major

Posts: 6066
Joined: Fri Oct 17, 2008 9:30 am
Location: South Wales Valley

Postby c.rainford73 » Sat Dec 29, 2018 5:28 pm

Great looking build Rob, the crawler is very good looking too :clap:

Will this have the same electronics as your other builds with sound etc?
User avatar
c.rainford73
Major

Posts: 5304
Joined: Thu Aug 25, 2016 7:34 pm
Location: Connecticut USA

Postby wibblywobbly » Sat Dec 29, 2018 6:16 pm

Sure, I rarely use RX18's nowadays, so I will find a TK22/24 with suitable sounds and run it with that. Of course, until I actually fire it up I have no idea if it will run nicely, though everything lines up and rotates smoothly, so it should do. The odd thing is that these don't have return rollers, my only concern is whether the plastic tracks will flex sideways on the upper run and detrack it. There is only one way to find out? :D
User avatar
wibblywobbly
Major

Posts: 6066
Joined: Fri Oct 17, 2008 9:30 am
Location: South Wales Valley

Postby wibblywobbly » Sat Feb 02, 2019 10:59 pm

Just to prove it actually runs, though it needs decent gearboxes as these are scrap plastic ones and one of the final drive shafts is slipping like crazy.

phpBB [video]
User avatar
wibblywobbly
Major

Posts: 6066
Joined: Fri Oct 17, 2008 9:30 am
Location: South Wales Valley

Postby yan33 » Sun Feb 03, 2019 9:23 am

it's so cool
i love it :thumbup: :thumbup: :thumbup: :thumbup:

yan33
Recruit

Posts: 37
Joined: Wed Feb 19, 2014 9:46 pm
