Home-made track tensioners for H.L. Pershing

Post by strmnd54 »

It has probably been done before ; and Phil at RCtankwars is selling a tensioner design that seems quite sturdy ( also pricy ....) . :'( :'(
But since I'm cheap and I have an old non smoke & sound Pershing that I keep for spare parts ; I decided to take a shot at it ....
I tried to keep the tensioner very simple and self-adjusting ...

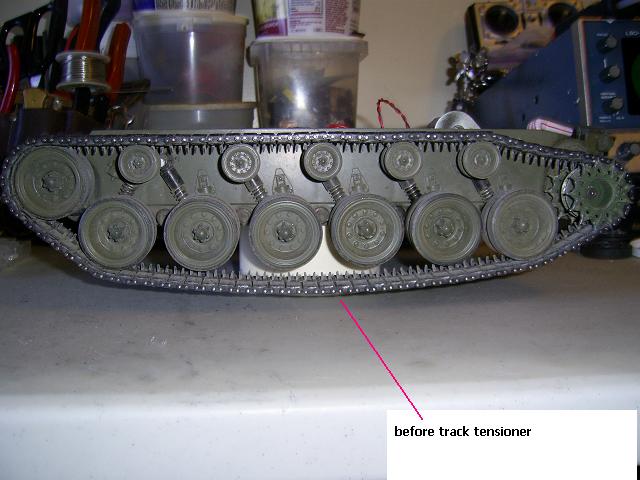

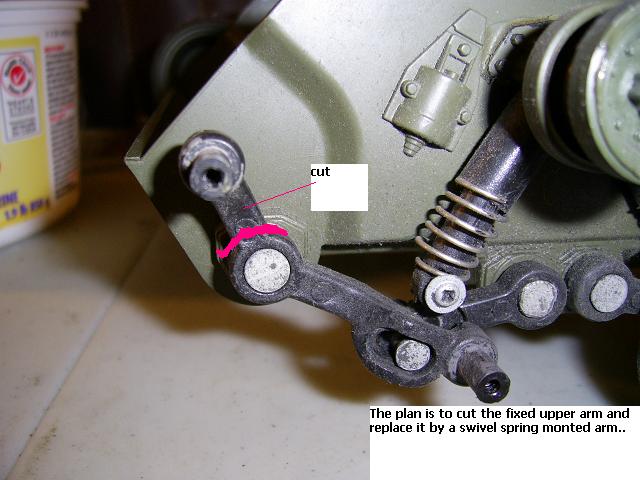

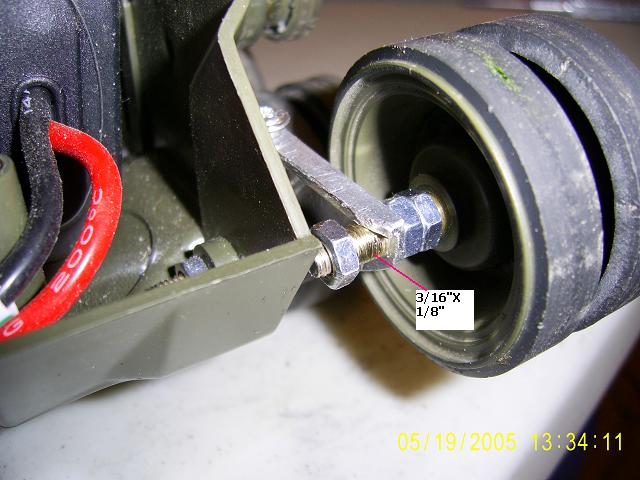

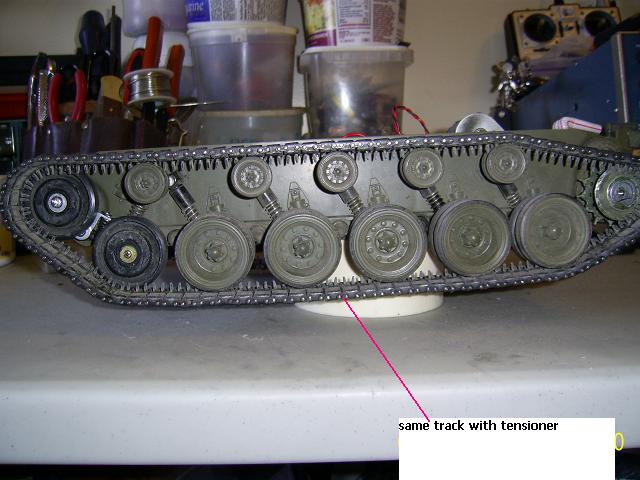

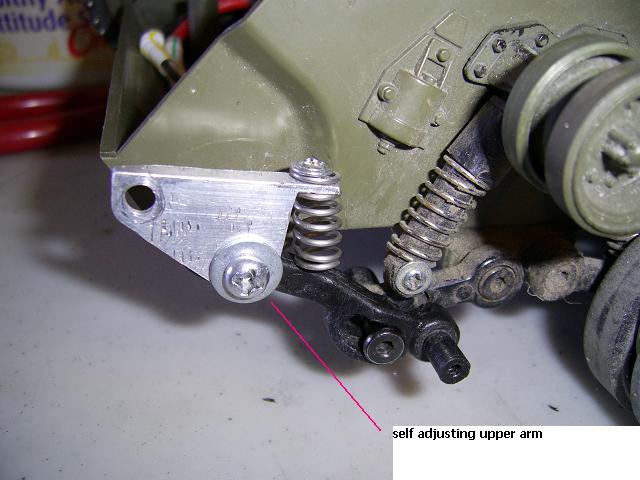

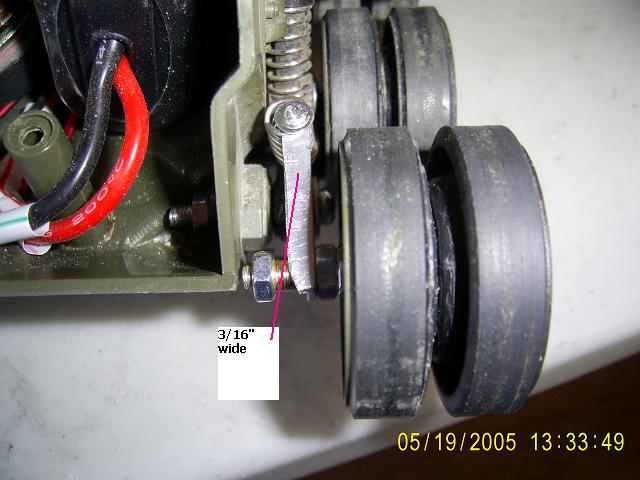

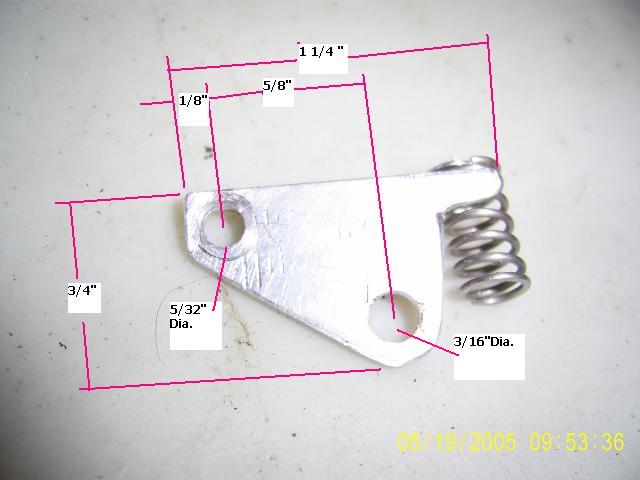

Here's a bunch of pictures with commentaries ....
Attachments
Heated debates on climate changes contribute to global warming!!!
strmnd54
Lance Corporal
Posts: 214
Joined: Mon May 24, 2010 3:00 am

Re: Home-made track tensioners for H.L. Pershing

Post by strmnd54 »

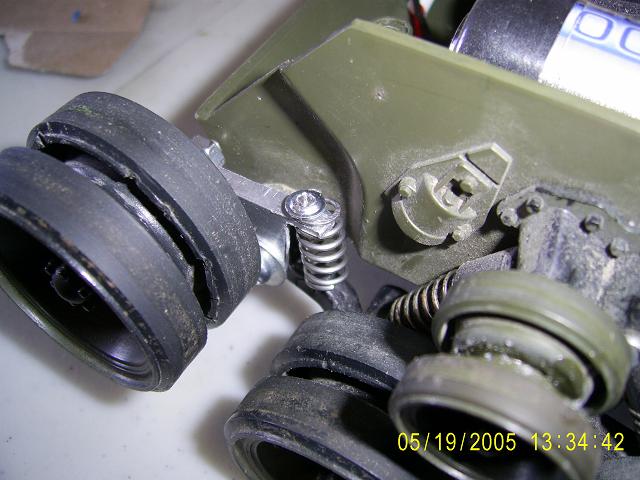

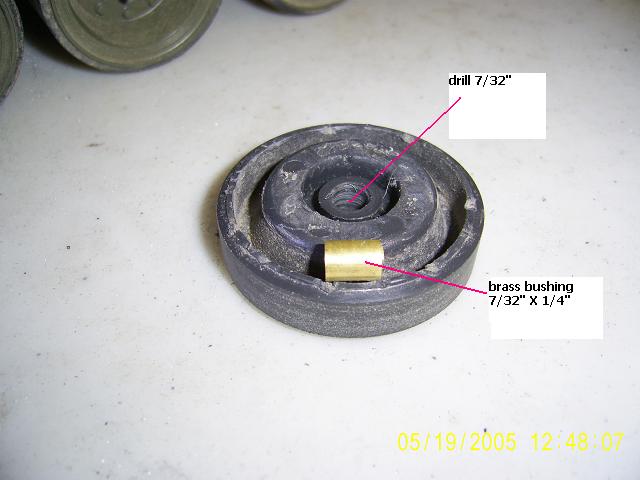

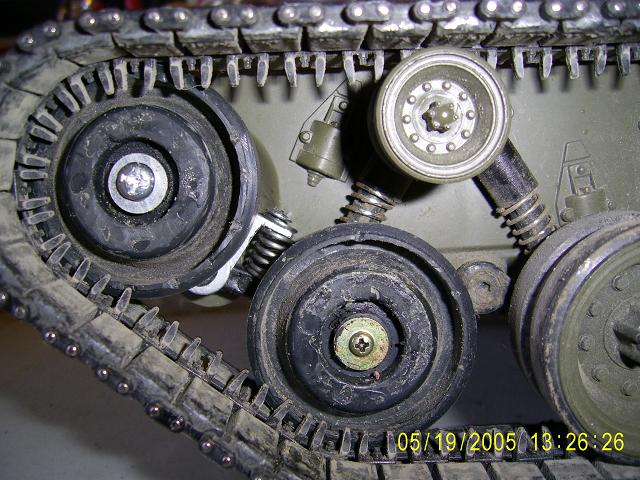

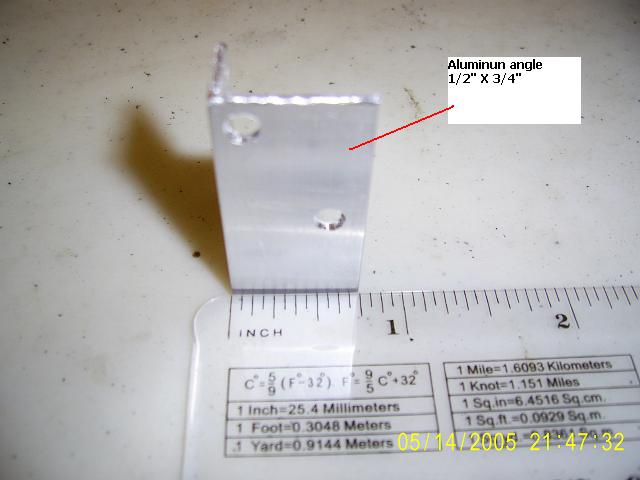

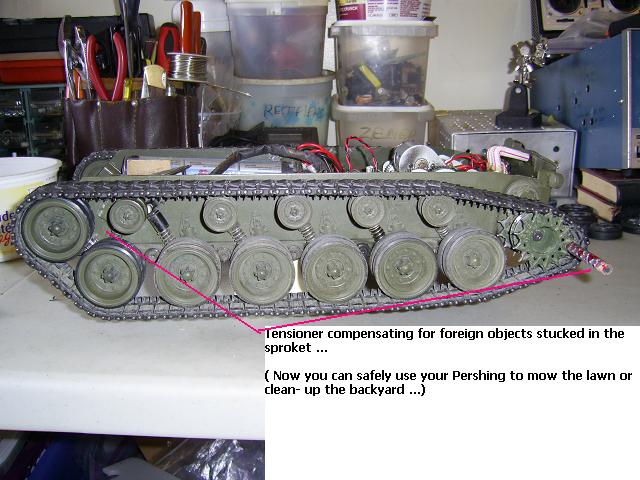

More pics ...
Attachments
Heated debates on climate changes contribute to global warming!!!
jonger
Lance Corporal
Posts: 215
Joined: Tue Jan 04, 2011 8:39 pm
Location: Charnwood Leicestershire

Re: Home-made track tensioners for H.L. Pershing

Post by jonger »

That's a really good idea - a self adjusting tensioner and simple too, well done, I'l have to see if I can use that anywhere on my adaptions though I'm using a bulldog as my base vehicle so the suspension is different.
Jonger
tanktop
Private
Posts: 65
Joined: Thu Aug 27, 2009 6:45 pm
Location: tiptree,essex

Re: Home-made track tensioners for H.L. Pershing

Post by tanktop »

great idea well done :thumbup:
