Converting HL Panther "G" to a Late "A"

This section is to 'show and tell' about any customizing or re-vamping you have done (or are doing) to a Heng Long tank.

Postby dgsselkirk » Mon Sep 08, 2014 6:26 pm

Greetings All!

If you are a rivet counter don't bother reading any further... :wave: This isn't going to be a balls accurate conversion by any means and nowhere near hotte or Jeff's level...

If you are a modder of medium or lower skills like me, you may be interested in doing this to a G just to have something different on the field. I have looked at a few of the guys who have done this conversion. There are a couple out there but I decided to go my own way and build a late "A" with zim. there is a kit out there as well but as usual I will be keeping the cost down and utilizing as much of the original vehicle as possible. The only real upgrades are a clark board, gearboxes, speakers, and the zim kit because having worked with the Atak kit on my L70 it made it look so good and was so easy to work with I have decided any zim builds in the future that is the way to go! :D
https://www.rctankwarfare.co.uk/forums/ ... 23&t=13040

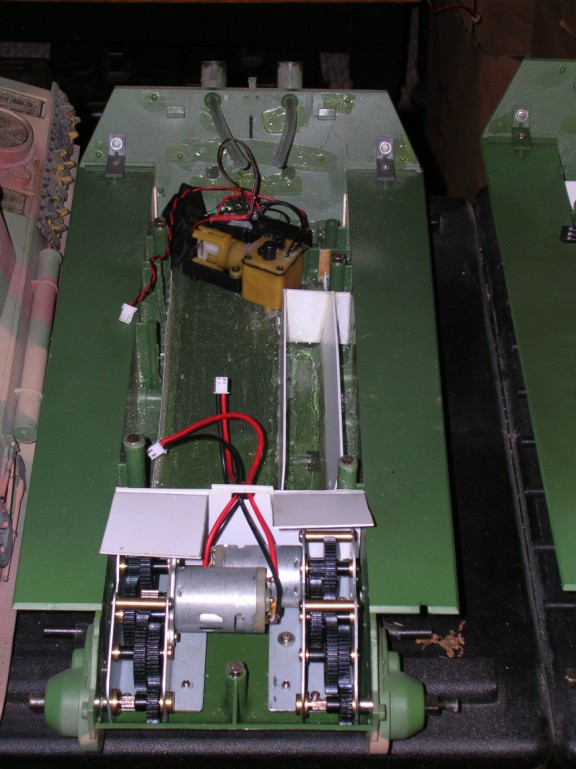

So first, I had 2 Panthers. One I bought from MichaelC which already had the black gearboxes and Clark board in it as well as the servo recoil and high viz flash put in. The Second G is stock from Matomart with metal upgrades and this is the one I decided to do in an "A". Michael's will be converted to an early "G" with zim after this one is done.
panther 1.jpg
panther 1.jpg (61.42 KiB) Viewed 5574 times

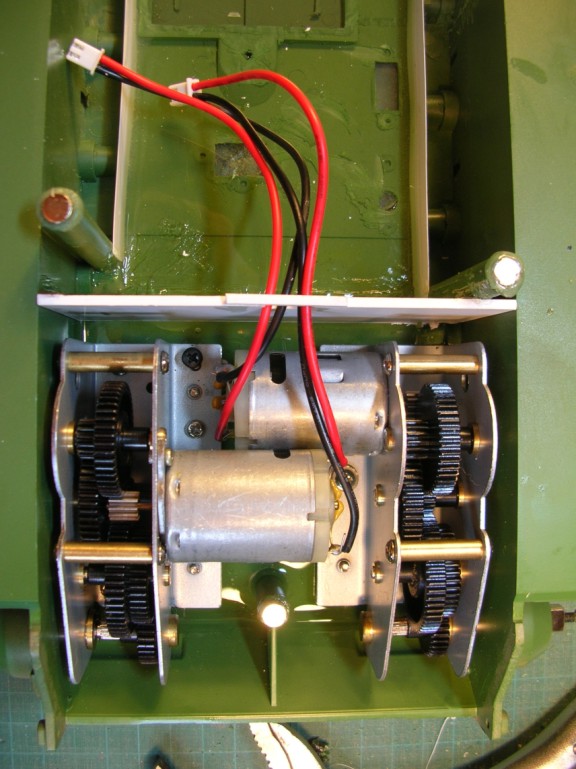

Now, originally my plan was to simply build 2 "G"'s regular and go with that . So to that end I went ahead and gutted them and did my usual resin base in the bottom.
panther 2.jpg
panther 2.jpg (80.91 KiB) Viewed 5574 times
panther 3.jpg
panther 3.jpg (55.94 KiB) Viewed 5574 times
panther 4.jpg
panther 4.jpg (62.22 KiB) Viewed 5574 times
panther 5.jpg
panther 6.jpg
panther 6.jpg (29.59 KiB) Viewed 5574 times
panther 7.jpg
panther 7.jpg (47.41 KiB) Viewed 5574 times
panther 8.jpg
panther 8.jpg (60.36 KiB) Viewed 5574 times
panther 9.jpg
panther 10.jpg


As you can see I was doing both hulls at once. Once I did the lowers last spring I had work to do for some other guys so they went on the shelf. During that time I changed my mind and decided to do the 2 different models. You will see only the "A" from here on in. I will start posting these tonight... :D
