Scratch build US Army "Scout" Armoured recon vehicle XM800 T

Postby Sub » Tue Nov 10, 2020 5:59 pm

Hi chaps,
As my FV430 Bulldog build is nearly over i started looking for another totally unique build that no body as far as i know has made one of these, most probably have not even seen or heard of one.
Its an armoured light tank which is capable of being air dropped has a 20mm auto cannon fully stabalised and night vision, 3 man crew.
I will be scratch building the vehicle at 1/13 scale full rc from Styrene sheet as per my bull dog.
Unfortunately the production was halted and cancelled in 1974 due to a defence review and budget cuts which was a shame as the vehicle exceeded all the specs the Army wanted at the time and the evaluation crews loved them, i think a large order was placed for them before the cuts.

There are a few about in museums and on display outside Fort Knox USA and at BAE systems.

A few pics of the basic lower hull box with suspension points added.

Cheers Sub.
Attachments

Sub
Corporal

Posts: 410
Joined: Wed Jul 22, 2009 10:45 am
Location: UK

Postby Sub » Tue Nov 10, 2020 10:34 pm

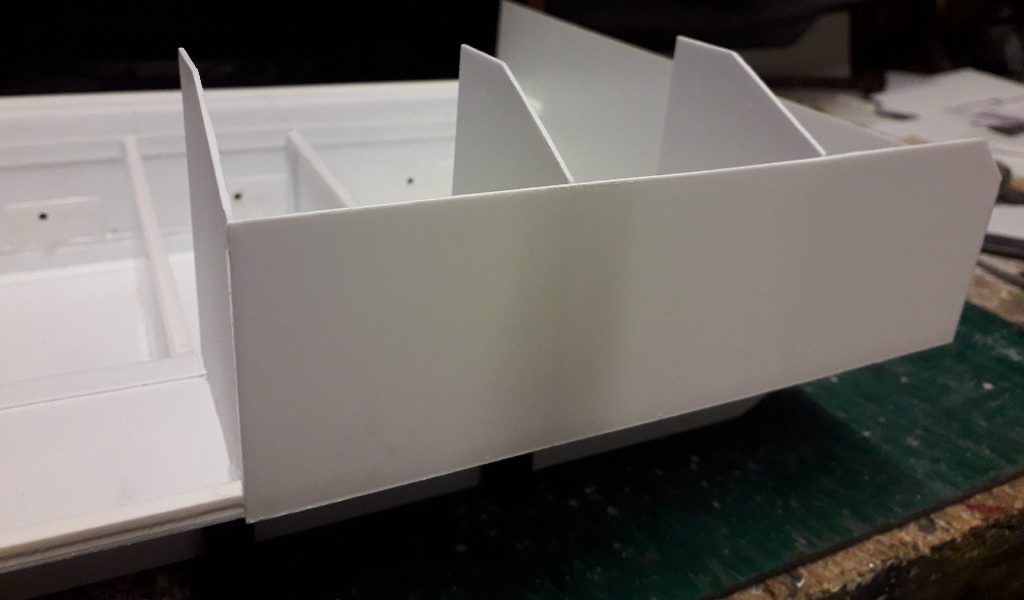

Building the hull sides up with internal support, the left hull side is different to the right side but both sides eventually make up to a flat hull top for the turret base.
This build will be quite challenging as the vehicle has many sloping sides, angles and triangular sections

Sub.
Attachments

Sub
Corporal

Posts: 410
Joined: Wed Jul 22, 2009 10:45 am
Location: UK

Postby Sub » Tue Nov 10, 2020 11:48 pm

Left and right rear hull sides added.
Sub.
Attachments

Sub
Corporal

Posts: 410
Joined: Wed Jul 22, 2009 10:45 am
Location: UK

Postby Sub » Wed Nov 11, 2020 5:25 pm

Hi.
Right hand side, middle to front hull side added.
Sub.
Attachments

Sub
Corporal

Posts: 410
Joined: Wed Jul 22, 2009 10:45 am
Location: UK

Postby Sub » Wed Nov 11, 2020 5:38 pm

Hi.
Here is a youtube video of one on the move i found

https://youtu.be/qitsOkEsMlU

Sub.

Sub
Corporal

Posts: 410
Joined: Wed Jul 22, 2009 10:45 am
Location: UK

Postby Sub » Wed Nov 11, 2020 9:03 pm

Hi.
Left hand hull sides added, you can see the difference here between right and left sides some thought had to go into the dimensions of each side to ensure that when fully completed and built up they provide a flat surface for the upper hull deck to fit correctly and ultimately the turret and its ring.
Sub.
Attachments

Sub
Corporal

Posts: 410
Joined: Wed Jul 22, 2009 10:45 am
Location: UK

Postby ronnie42 » Wed Nov 11, 2020 10:05 pm

Nice build , very clean joints. I usually mess up the styrene glue by using the wrong paintbrush , last bottle of EMA plastic weld turned brown as the brush was not cleaned,

ronnie42
Staff Sergeant

Posts: 836
Joined: Sun Feb 04, 2018 12:00 pm

Postby Sub » Wed Nov 11, 2020 11:47 pm

Hi,
Thank you Mr Ronnie for your interest.
I have only just purchased my first ever bottle of EMA glue, primarily for glueing different types of plastic, as my stock of the other glue i used has expired and i use abs among other types of plastic in my builds so needed something that would weld them all together.

My usual glue for the majority of my Styrene builds is Contacta Professional as you apply it with a needle attached and as you say you can achieve some good clean glue lines with little excess.
Thx for looking.
Regards.
Sub.

Sub
Corporal

Posts: 410
Joined: Wed Jul 22, 2009 10:45 am
Location: UK

Postby Sub » Thu Nov 12, 2020 5:48 pm

Hi.
Front Cross brace bulkhead added and start of the hull front make up including headlamp recesses.
Sub.
Attachments

Sub
Corporal

Posts: 410
Joined: Wed Jul 22, 2009 10:45 am
Location: UK

Postby midlife306 » Thu Nov 12, 2020 8:53 pm

I’m loving it Sub, keep up the good work


Sent from my iPhone using Tapatalk
User avatar
midlife306
Warrant Officer 1st Class

Posts: 2124
Joined: Sun Aug 27, 2017 10:34 am

Postby Exhibitedbrute » Thu Nov 12, 2020 9:06 pm

I did hear of these though it may have been a British used/proposed vehicle but like your self I don’t recall seeing anything other than trials

Exhibitedbrute
Staff Sergeant

Posts: 890
Joined: Tue Dec 17, 2019 1:27 am

Postby Sub » Fri Nov 13, 2020 3:44 pm

Hi Chaps,
Thx for the interest and encouragement.
Bit more done on the headlight frontal area to be able to make the headlight "buckets".
Sub
Attachments

Sub
Corporal

Posts: 410
Joined: Wed Jul 22, 2009 10:45 am
Location: UK

Postby Sub » Fri Nov 13, 2020 11:31 pm

Hi.
Bit more done, headlamp recesses done, just need a bit more trimming for the angle of the upper front hull when i fit it.
Sub.
Attachments

Sub
Corporal

Posts: 410
Joined: Wed Jul 22, 2009 10:45 am
Location: UK

Postby HERMAN BIX » Sat Nov 14, 2020 12:54 pm

My God Mr Sub, you have a lot on here !
I'd say that most of the global supply of styrene sheet is now diverted to your house 8O
User avatar
HERMAN BIX
Lieutenant-Colonel

Posts: 7050
Joined: Sun Jan 12, 2014 1:15 am
Location: Gold Coast,Australia

Postby Sub » Sun Nov 15, 2020 10:58 pm

Hi Mr Bix,
Thx for your interest, and comments. :haha:
You are quite right, there is a lot going on, most of it support for the upper hull deck which is full of angles and triangular shapes......more than Pythagoras's note book :crazy: :haha:
A few more pics, this time of the rear end, support for the rear upper part of the hull where it meets the top deck, plus some cross brace upper supports.
Sub.
Attachments

Sub
Corporal

Posts: 410
Joined: Wed Jul 22, 2009 10:45 am
Location: UK

Postby Sub » Sun Nov 15, 2020 11:44 pm

Hi.
Check fit of the gearbox's, as can be seen im using a spare set of low profile gearboxes, there is loads of space for them , my plan on using the low profile gearboxes is so i can put a removable deck section in above them to fit a rather large speaker box which will sit directly below where the rear engine cooling grills are located on the real thing.
Sub.
Attachments

Sub
Corporal

Posts: 410
Joined: Wed Jul 22, 2009 10:45 am
Location: UK

Postby Sub » Tue Nov 17, 2020 5:30 pm

Hi.
Build up of the rear pannel and rear of the hull roof.
Sub.
Attachments

Sub
Corporal

Posts: 410
Joined: Wed Jul 22, 2009 10:45 am
Location: UK

Postby Sub » Tue Nov 17, 2020 9:25 pm

More.
Attachments

Sub
Corporal

Posts: 410
Joined: Wed Jul 22, 2009 10:45 am
Location: UK

Postby Sub » Tue Nov 17, 2020 9:28 pm

More.
Should look ok when cleaned up.
Sub.
Attachments

Sub
Corporal

Posts: 410
Joined: Wed Jul 22, 2009 10:45 am
Location: UK

Postby ronnie42 » Tue Nov 17, 2020 9:48 pm

Very neat joints , much better than mine,

ronnie42
Staff Sergeant

Posts: 836
Joined: Sun Feb 04, 2018 12:00 pm
