Heng Long M1A2 Abrams cannon not responding

If you have a tank query and you can't find the answer anywhere else, post here. (TIP - Check for answers in FAQ, use the 'search' facility or even check this board before posting here).

Postby burniefloyd » Fri Oct 23, 2020 2:55 am

Hello all,
I just bought my first tank today. It is a used HL M1A2 not sure if it would be considered the pro but it does have a lot of metal upgrades. Metal tracks, metal caterpillar, metal wheel (front only), zinc gears and a smoke and sound unit.
Everything seems to be working as it should except the airsoft cannon. I can't seem to get it to fire, no noise, motion or anything..
I opened the canopy to look for the missing on/off wife but found this model doesn't have one. All wires were in place and seated properly, I didn't see anything broken or missing. I also opened the remote and again everything seemed intact.
I did get it to fire once by accident, I wasn't expecting it to work so I wasn't paying close attention but there was a smallish pop and the tank rocked in place. When I hold the right shoulder button down and move the left stick up nothing happens. The turret doesn't move up so that indicates the shoulder button is registering and when I release them I get the engine stutter I hear when the turret stops rotating.
At this point I don't know enough about tanks to figure out what to do next and I couldn't find much about this type of issue online. As a matter of fact I saw very little about the HL M1A2 anywhere. Could anyone point me in a direction for troubleshooting this?

One additional piece of info, when I had the canopy open I was testing the machine gun and it was working fine. I notice CH3 MC Gun had open slots so I wondered what would happen if I moved it over. Nothing changed when I moved it, as a matter of fact the machine gun worked perfectly fine while it wasn't plugged in at all. That definitely confused me...

Thanks in advance,
Jason

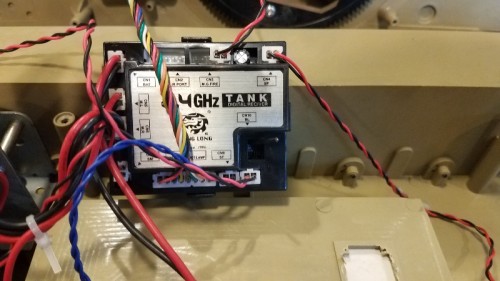

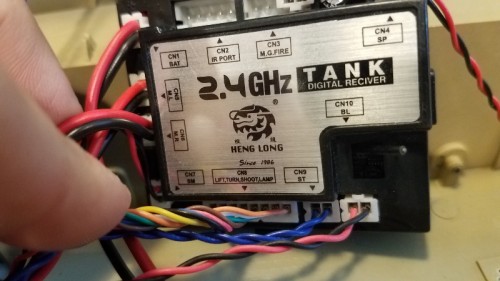

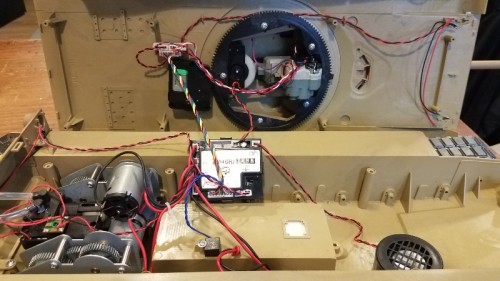

Internals


Last edited by burniefloyd on Tue Nov 03, 2020 1:24 am, edited 1 time in total.

burniefloyd
Recruit

Posts: 15
Joined: Fri Oct 23, 2020 12:23 am

Postby Jofaur86 » Fri Oct 23, 2020 11:04 am

Hello :D
Already and personally,check that the transmitter matches the board ( HL brand ? ) the bandage ( TX /RX pairing is correct.done ? );then check all the connections on the board,then install a quality battery :angel:
Then possible problems due to prolonged storage 8O motor blocked by dry grease...
https://www.youtube.com/watch?v=FAxUBYBnans

The button blue and wire,for the bindage..

Jofaur86
Corporal

Posts: 446
Joined: Wed Dec 26, 2018 12:28 am

Postby Jofaur86 » Fri Oct 23, 2020 11:25 am

What type of transmitter do you have ? Several type existing ? Pictures :thumbup:

Jofaur86
Corporal

Posts: 446
Joined: Wed Dec 26, 2018 12:28 am

Postby burniefloyd » Fri Oct 23, 2020 9:19 pm

Jofaur86 wrote:What type of transmitter do you have ? Several type existing ? Pictures :thumbup:


Thank you for the reply. I will check the video now to see if the grease is the issue.

I believe this is the stock controller even though the last owner wrote the wrong model on it.

I also charged what I assume was the original nimh. Again no response but I may have heard a faint whiring during 1 attempt.

Could the wrong battery cause these types of issues? I also thought it was odd the instructions and box both refer to the battery being 7.4v which is a lipo voltage vs 7.2v which is nimh. I assume it was a translation error?

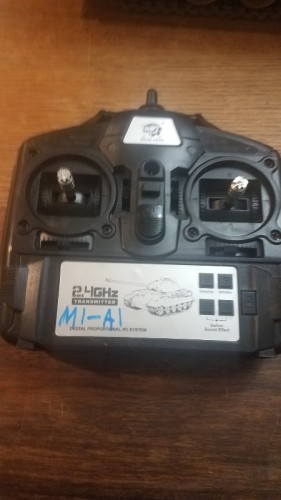

Controller

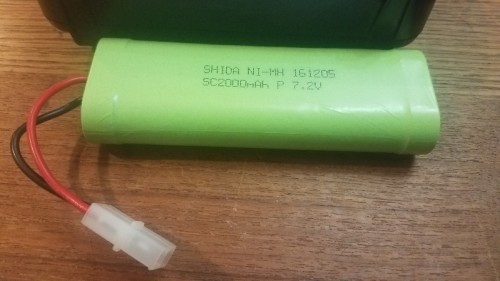

Battery

Box

burniefloyd
Recruit

Posts: 15
Joined: Fri Oct 23, 2020 12:23 am

Postby Son of a gun-ner » Sat Oct 24, 2020 7:02 pm

Hi there.

New and newish Heng Long tanks come with a 7.4 Li-Ion battery, the older ones come with a 7.2 Ni-MH, and even older ones come with 7.2 Ni-Cd batteries.
Either type of the old 7.2's will still work in a new one, but if they're old and tired, they may not hold enough charge now, to be honest, those old Heng Long batteries are of the poorest quality, and are nowhere near as high as their stated 1700 to 2000 mah ratings.

I'm guessing you should have had the black battery pack/casing with the 7.4 volt Li-Ion inside with that tank.
User avatar
Son of a gun-ner
TOTM Admin

Posts: 4534
Joined: Sun May 07, 2017 8:49 pm
Location: Surrey UK

Postby 43rdRecceReg » Sat Oct 24, 2020 9:46 pm

I don't suppose there's an on/off switch on the chassis floor? Yes, models from around 2016- on dispensed with the safety on/off switch. Prior to that, the switch was often it was located on the Commander or Loader's cupola. Or, it could be positioned beneath the tank along with a volume control, and main power switch.

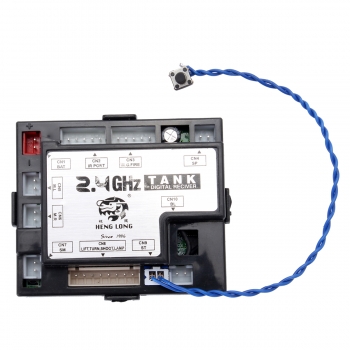

If there's no switch, and all the cables are connected to the correct terminals, then the microswitch on the base of the airsoft gun could be faulty (contacts not opening and closing properly).

A tip: if the connectors were in the correct slots to begin with, trying another (vacant) position is not going to help- indeed, it could cause damage.

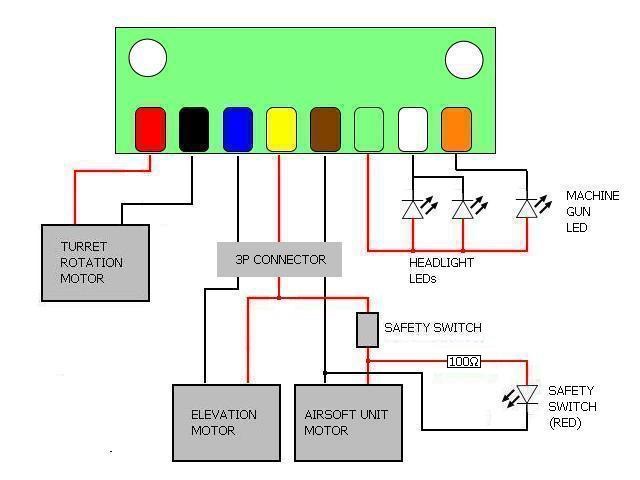

Do use the wiring diagrams available here, in the Archive (downloads section, and elsewhere).

The airsoft unit does use a fair bit of energy, and so a fully charged battery should be used for any potential fault finding. It's also worth looking at the wiring and connectors to check for dry (bad) soldered joints, and damaged cables.
Last edited by 43rdRecceReg on Sat Oct 24, 2020 10:10 pm, edited 1 time in total.
User avatar
43rdRecceReg
Captain

Posts: 5179
Joined: Fri Jul 31, 2015 11:38 am
Location: North West Highlands, Scotland

Postby Son of a gun-ner » Sat Oct 24, 2020 10:09 pm

Looking at the controller type, they did away with the safety switch under the turret hatch when they introduced that style.
User avatar
Son of a gun-ner
TOTM Admin

Posts: 4534
Joined: Sun May 07, 2017 8:49 pm
Location: Surrey UK

Postby Jofaur86 » Sat Oct 24, 2020 10:45 pm

Hello 8)
I see that the cables of the turret come back to a connector where the 8;wire,cord between this connector and the boards is attached the original schématic,but only with the 8 pins ,on airsoft systems,it there is usually a small switch ( in black on the photo ) if there in check that not on OFF ? If existing....By rerearding your post,you indicate that no movement ,no noise,etc ? For shooting be careful with an airsoft the gun has not recoil ???

Jofaur86
Corporal

Posts: 446
Joined: Wed Dec 26, 2018 12:28 am

Postby burniefloyd » Sun Oct 25, 2020 1:36 am

43rdRecceReg wrote:I don't suppose there's an on/off switch on the chassis floor? Yes, models from around 2016- on dispensed with the safety on/off switch. Prior to that, the switch was often it was located on the Commander or Loader's cupola. Or, it could be positioned beneath the tank along with a volume control, and main power switch.

If there's no switch, and all the cables are connected to the correct terminals, then the microswitch on the base of the airsoft gun could be faulty (contacts not opening and closing properly).

A tip: if the connectors were in the correct slots to begin with, trying another (vacant) position is not going to help- indeed, it could cause damage.
Do use the wiring diagrams available here, in the Archive (downloads section, and elsewhere).

The airsoft unit does use a fair bit of energy, and so a fully charged battery should be used for any potential fault finding. It's also worth looking at the wiring and connectors to check for dry (bad) soldered joints, and damaged cables.


All of the cables seem to be connected properly, I am trying to figure out how to remove the gun with damaging anything in order to clean and regrease it. I can solder but I REALLY hate it and those tiny wires... yuk :sick:

Knowing the 7.4V lipo was the wrong battery and prior to seeing Mick's response it should be Li-on I charged up the included nimh and gave it a shot. A few minutes into testing (several tries) I did hear a new noise. Hard to describe it but I believe it was the airsoft trying to wind back. I didn't hear a click or anything I would expect to indicate it fired but it was trying. This last for about 10 seconds until i released the buttons and I was unable to reproduce it.

Perhaps the battery got too low to fire the cannon at that point? I shall have to order a Li-on battery and charger as my current charger does lipo and li-fe but no Li-on.

burniefloyd
Recruit

Posts: 15
Joined: Fri Oct 23, 2020 12:23 am

Postby burniefloyd » Sun Oct 25, 2020 1:38 am

Son of a gun-ner wrote:Looking at the controller type, they did away with the safety switch under the turret hatch when they introduced that style.


You are correct, there is no safety switch.

burniefloyd
Recruit

Posts: 15
Joined: Fri Oct 23, 2020 12:23 am

Postby burniefloyd » Sun Oct 25, 2020 1:50 am

Jofaur86 wrote:Hello 8)
I see that the cables of the turret come back to a connector where the 8;wire,cord between this connector and the boards is attached the original schématic,but only with the 8 pins ,on airsoft systems,it there is usually a small switch ( in black on the photo ) if there in check that not on OFF ? If existing....By rerearding your post,you indicate that no movement ,no noise,etc ? For shooting be careful with an airsoft the gun has not recoil ???


I do not have that switch.

The first time I thought it fired I was not fully paying attention but I thought the tank recoiled. I could and probably was mistaken. For all attempts except that time and the one I described above not has happened when I press the button combination.

burniefloyd
Recruit

Posts: 15
Joined: Fri Oct 23, 2020 12:23 am

Postby Son of a gun-ner » Sun Oct 25, 2020 1:52 am

burniefloyd wrote:my current charger does lipo and li-fe but no Li-on.

Sounds like a similar charger to mine.
The Li-Fe setting isn't the ideal setting for Li-Ion, but I've used it for the Heng Long Li-Ion without any problems.

I think the Li-Fe batteries are only 3.3 volts a cell, and that's why that setting isn't ideal for the Li-Ion batteries.
User avatar
Son of a gun-ner
TOTM Admin

Posts: 4534
Joined: Sun May 07, 2017 8:49 pm
Location: Surrey UK

Postby burniefloyd » Sun Oct 25, 2020 2:04 am

Jofaur86 wrote:Hello 8)
I see that the cables of the turret come back to a connector where the 8;wire,cord between this connector and the boards is attached the original schématic,but only with the 8 pins ,on airsoft systems,it there is usually a small switch ( in black on the photo ) if there in check that not on OFF ? If existing....By rerearding your post,you indicate that no movement ,no noise,etc ? For shooting be careful with an airsoft the gun has not recoil ???


I do not have that switch.

The first time I thought it fired I was not fully paying attention but I thought the tank recoiled. I could and probably was mistaken. For all attempts except that time and the one I described above not has happened when I press the button combination.



On a separate and unrelated note, Mick, you were absolutely correct! While I was fiddling around with the cannon I decided I wanted to take it for it's maiden voyage. I put it down on the front walk, crossed the 2 foot patch of mulch onto my front lawn and gat it some throttle! after the first 3 feet it took a hard left and made me fight it to go straight. I couldn't turn right to drive back and check the trim, nope not the issue, I knew what had happened at this point but I was hoping that a few dry leaves was the reason this behemoth went wonky. Once I opened her up I saw what Mick warned me about, The left drive gears turned to butter. Flat as can be...

Oh well, now I also need to find steel gears but I am not sure to trust Aliexpress as the reviews are all over the place and the question if they are or aren't steel is up for debate. They also state in the description that the same gearbox will fit all of the Heng Long models. Is this correct?

burniefloyd
Recruit

Posts: 15
Joined: Fri Oct 23, 2020 12:23 am

Postby burniefloyd » Sun Oct 25, 2020 2:07 am

Son of a gun-ner wrote:
burniefloyd wrote:my current charger does lipo and li-fe but no Li-on.

Sounds like a similar charger to mine.
The Li-Fe setting isn't the ideal setting for Li-Ion, but I've used it for the Heng Long Li-Ion without any problems.

I think the Li-Fe batteries are only 3.3 volts a cell, and that's why that setting isn't ideal for the Li-Ion batteries.


It would stand to reason then that If I am suffering from a low voltage issue then I wouldn't want to undercharge the battery to 6.6 instead of 7.4?

burniefloyd
Recruit

Posts: 15
Joined: Fri Oct 23, 2020 12:23 am

Postby Son of a gun-ner » Sun Oct 25, 2020 2:43 am

burniefloyd wrote:It would stand to reason then that If I am suffering from a low voltage issue then I wouldn't want to undercharge the battery to 6.6 instead of 7.4?

This is true, but at the moment you have an old 7.2 Ni-MH which has possibly died. I have a few that can't take or hold a charge.
When you try to fire the main gun. Does your tank turn off, as in go back to the flashing front lights, which is the tank ready for starting mode?
User avatar
Son of a gun-ner
TOTM Admin

Posts: 4534
Joined: Sun May 07, 2017 8:49 pm
Location: Surrey UK

Postby burniefloyd » Sun Oct 25, 2020 3:17 am

Son of a gun-ner wrote:
burniefloyd wrote:It would stand to reason then that If I am suffering from a low voltage issue then I wouldn't want to undercharge the battery to 6.6 instead of 7.4?

This is true, but at the moment you have an old 7.2 Ni-MH which has possibly died. I have a few that can't take or hold a charge.
When you try to fire the main gun. Does your tank turn off, as in go back to the flashing front lights, which is the tank ready for starting mode?


Firing the main gun (what I have been calling the machine gun) works normally and I am able to alternate between gun sounds and nothing turns off.

burniefloyd
Recruit

Posts: 15
Joined: Fri Oct 23, 2020 12:23 am

Postby Son of a gun-ner » Sun Oct 25, 2020 3:47 am

I meant the big gun, the one that fires the BB pellets.
That's classed as the "main gun."
User avatar
Son of a gun-ner
TOTM Admin

Posts: 4534
Joined: Sun May 07, 2017 8:49 pm
Location: Surrey UK

Postby burniefloyd » Sun Oct 25, 2020 12:56 pm

Son of a gun-ner wrote:I meant the big gun, the one that fires the BB pellets.
That's classed as the "main gun."


:{ Oh that main gun... No, the tank does not shut off when I try to fire it. It just sits there running like nothing is happening. The barrel doesn't raise so I know it registers the shoulder button.

burniefloyd
Recruit

Posts: 15
Joined: Fri Oct 23, 2020 12:23 am

Postby Jofaur86 » Sun Oct 25, 2020 3:06 pm

Hello :D
Personally I would open the turret to dismantle the airsoft system ,and see what happens ,first of all,be careful,on airsoft there is no gun recoil , élévation is done by an engine located behind the airsoft.
This would already make it possible to see if everything is working well, motor blocked,wires cut,etc

Jofaur86
Corporal

Posts: 446
Joined: Wed Dec 26, 2018 12:28 am

Postby Son of a gun-ner » Sun Oct 25, 2020 4:52 pm

Jofaur86 wrote:Hello :D
Personally I would open the turret to dismantle the airsoft system ,and see what happens ,first of all,be careful,on airsoft there is no gun recoil , élévation is done by an engine located behind the airsoft.
This would already make it possible to see if everything is working well, motor blocked,wires cut,etc

Yes, there could very well be a gun jamb.

The reason I asked about the tank turning off and going back on standby. Usually when there's not enough power in the battery, it causes the tank to switch off when you try to fire the gun, or make the tank do a turn etc. Usually things that require a large current drain.
User avatar
Son of a gun-ner
TOTM Admin

Posts: 4534
Joined: Sun May 07, 2017 8:49 pm
Location: Surrey UK
