1/16 Treadplate - Stug III

If you have a tank query and you can't find the answer anywhere else, post here. (TIP - Check for answers in FAQ, use the 'search' facility or even check this board before posting here).

Postby Mic » Mon Apr 15, 2019 1:50 pm

Hi guys, hopefully an easy one - is it possible to buy brass diamond treadplate in 1/16 scale for my Stug? I see Aber do a load, but they don't seem to be the right scale. The diamonds should be about 15 or 16 wide looking at photo's of a real Stug

Thanks :)
Last edited by Mic on Mon Apr 15, 2019 9:20 pm, edited 1 time in total.
User avatar
Mic
Private

Posts: 52
Joined: Wed Feb 13, 2019 8:30 pm
Location: Panzer Werkstatt

Postby jarndice » Mon Apr 15, 2019 2:11 pm

ABER Product Number 16099 WW 11 German Pattern Treadplate.
The 16 in the product number is the scale.

jarndice
Captain

Posts: 5061
Joined: Mon Sep 03, 2012 11:27 am
Location: the mountains of hertfordshire

Postby PainlessWolf » Mon Apr 15, 2019 2:37 pm

Good morning,
It is available. Lucky for us StuG guys. No other way to easily fix where we have ground away molded on tools.
regards,
Painless
Attachments
Aber brass treadplate from Artistic Hobbies here in the States.JPG
Aber brass treadplate from Artistic Hobbies here in the States.JPG (14.93 KiB) Viewed 456 times
User avatar
PainlessWolf
Major

Posts: 6305
Joined: Sun Feb 26, 2012 10:09 pm
Location: Front Range of Colorado

Postby jarndice » Mon Apr 15, 2019 2:46 pm

If you just want to do a vanity job rather than actually cover up damage Archers Decals make 1/16 Treadplate decals.

jarndice
Captain

Posts: 5061
Joined: Mon Sep 03, 2012 11:27 am
Location: the mountains of hertfordshire

Postby General Jumbo01 » Mon Apr 15, 2019 3:03 pm

I've used that plate for making a tanker top walkway, very versatile. You can also look at sites than support 14th scale trucks. There are dozens of brass patterned sheets out there that might help too.

Sent from my ASUS_T00G using Tapatalk
User avatar
General Jumbo01
Corporal

Posts: 474
Joined: Sat Jul 14, 2018 8:06 pm
Location: I'm a Londoner that moved to Essex. Says it all really...:(

Postby Mic » Mon Apr 15, 2019 6:24 pm

Thank you for the fast response guys! I should have mentioned and apologies I did not (Rushing...) that it's for a Stug III. That Aber 16099 isn't diamond tread it seems, I'm guessing the Panzer IV was different.

Pz IV Aber tread:


Here's a shot of a Stug III (Though these look like bumps instead of Diamonds)


Here's a Stug III from Israel

User avatar
Mic
Private

Posts: 52
Joined: Wed Feb 13, 2019 8:30 pm
Location: Panzer Werkstatt

Postby Mic » Mon Apr 15, 2019 9:21 pm

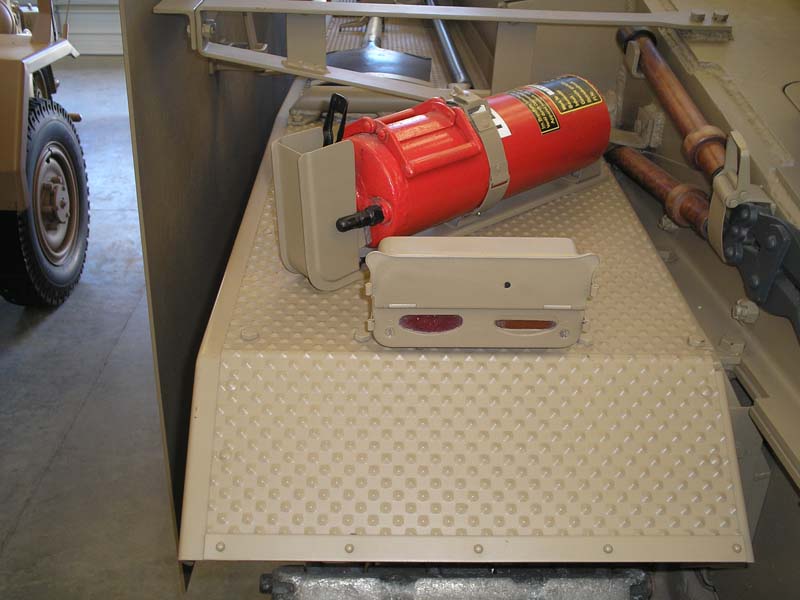

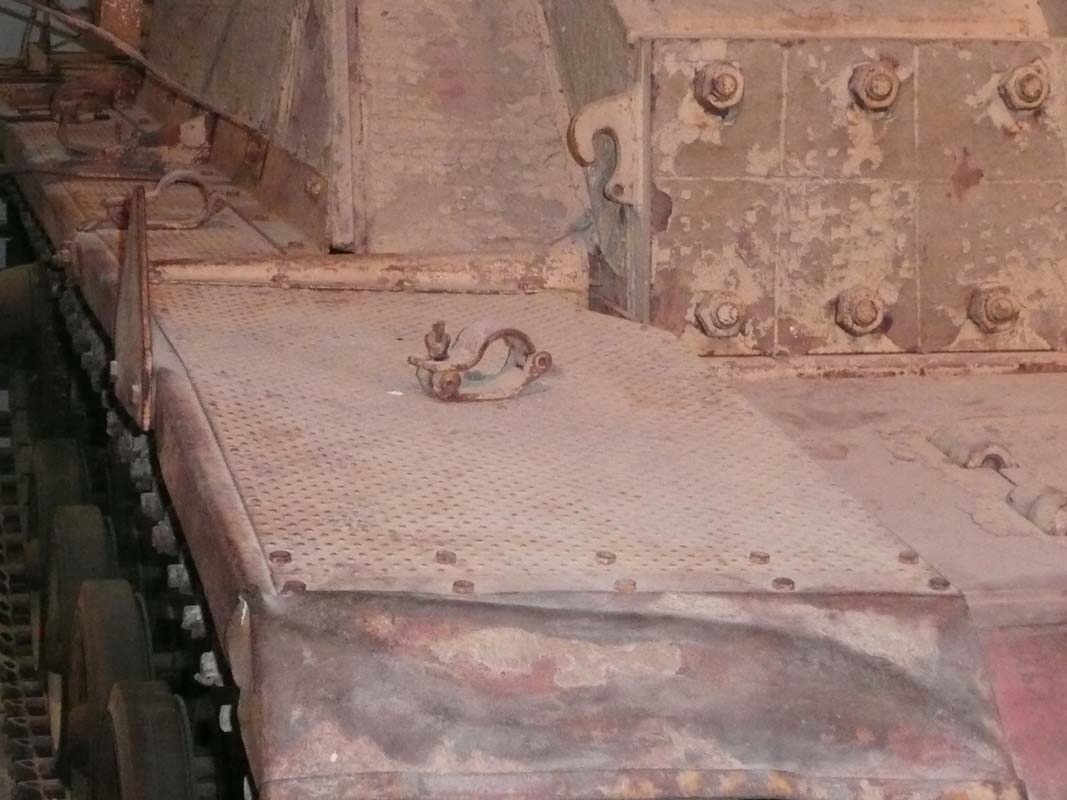

Too further confuse matters, it seems there may be different types of tread plate on a Stug (See two pics attached). The question is, why and when...
Attachments
tread 22 (2).jpg
tread 22 (2).jpg (52.41 KiB) Viewed 400 times
User avatar
Mic
Private

Posts: 52
Joined: Wed Feb 13, 2019 8:30 pm
Location: Panzer Werkstatt

Postby Son of a gun-ner » Mon Apr 15, 2019 11:07 pm

That last picture looks a tad new, not like old metal with fresh paint, more like new replacement metal with fresh paint. One would need to see the rest of that piece of armour to see if there were any original plating to compare. That is one of the problems with a restored vehicle, they don't always get it dead right.
User avatar
Son of a gun-ner
TOTM Admin

Posts: 2182
Joined: Sun May 07, 2017 8:49 pm
Location: Surrey UK

Postby General Jumbo01 » Mon Apr 15, 2019 11:11 pm

It could be the factory had to use what it could get hold of. It was hard times for everybody. Just think of Land Rover post Brexit!!

Sent from my ASUS_T00G using Tapatalk
User avatar
General Jumbo01
Corporal

Posts: 474
Joined: Sat Jul 14, 2018 8:06 pm
Location: I'm a Londoner that moved to Essex. Says it all really...:(

Postby jarndice » Mon Apr 15, 2019 11:50 pm

And that is why ABER does not do the Diamond Pattern Treadplate, It does not conform to the Treadplate pattern originally installed on German Armour of 1939/1945.

jarndice
Captain

Posts: 5061
Joined: Mon Sep 03, 2012 11:27 am
Location: the mountains of hertfordshire

Postby Son of a gun-ner » Mon Apr 15, 2019 11:54 pm

jarndice wrote:And that is why ABER does not do the Diamond Pattern Treadplate, It does not conform to the Treadplate pattern originally installed on German Armour of 1939/1945.

:think:
Attachments
User avatar
Son of a gun-ner
TOTM Admin

Posts: 2182
Joined: Sun May 07, 2017 8:49 pm
Location: Surrey UK

Postby Son of a gun-ner » Tue Apr 16, 2019 12:12 am

I must have just looked at at least 100 black and white old wartime pictures of just Stug 3's, and that was the only picture where the tread plate pattern could be clearly seen. The vast majority had plain smooth plates, not one of them had any pattern on either the front or rear fenders, and there were a lot with Zimmerit on them.
User avatar
Son of a gun-ner
TOTM Admin

Posts: 2182
Joined: Sun May 07, 2017 8:49 pm
Location: Surrey UK

Postby Aussie » Tue Apr 16, 2019 7:47 am

Plastic throw away BBQ plates , the bottom of them is perfect.

Aussie
Corporal

Posts: 380
Joined: Sat Aug 13, 2016 11:49 pm
Location: Darwin , N.T. , Australia.

Postby Eastern Front » Tue Apr 16, 2019 8:33 pm

Here ya go, 1 is the Stug, the other Panzer IV

Cheers!
Attachments
User avatar
Eastern Front
Warrant Officer 1st Class

Posts: 1503
Joined: Sat Mar 12, 2011 12:39 am
Location: Sumter SC

Postby Son of a gun-ner » Tue Apr 16, 2019 10:58 pm

Eastern Front wrote:Here ya go, 1 is the Stug, the other Panzer IV

Cheers!

Trust you to throw a third pattern into the mix lol
User avatar
Son of a gun-ner
TOTM Admin

Posts: 2182
Joined: Sun May 07, 2017 8:49 pm
Location: Surrey UK

Postby PainlessWolf » Wed Apr 17, 2019 1:34 am

Good afternoon,
Trust the battlefield shots of wrecked panzers before you do many museum restorations. It is a fact that some un-wrecked machines made their way into the hands of collections but they were very few.
regards,
Painless
User avatar
PainlessWolf
Major

Posts: 6305
Joined: Sun Feb 26, 2012 10:09 pm
Location: Front Range of Colorado

Postby Mic » Wed Apr 17, 2019 1:40 pm

Thank you for the reply everyone, so it seems I'm not the only one confused! Those restored vehicles definetely don't have the same pattern.

It seems unless someone can correct me, that the correct pattern is this from Aber PP03 - It's very nearly the correct scale.


I actually have a sheet of that already, so here's it laid on my HL Stug body:




User avatar
Mic
Private

Posts: 52
Joined: Wed Feb 13, 2019 8:30 pm
Location: Panzer Werkstatt

Postby Son of a gun-ner » Wed Apr 17, 2019 2:03 pm

Nice to see Heng Long got something right ;)
That Aber sheet may be a little on the small size for pattern, but could do.

Yeah, we've learnt that museums do sometimes use what they can get hold of from time to time, and don't always get it historically correct. And unfortunately, some modelling suppliers don't realise.
User avatar
Son of a gun-ner
TOTM Admin

Posts: 2182
Joined: Sun May 07, 2017 8:49 pm
Location: Surrey UK

Postby Mic » Wed Apr 17, 2019 2:26 pm

Son of a gun-ner wrote:Nice to see Heng Long got something right ;)
That Aber sheet may be a little on the small size for pattern, but could do.

Yeah, we've learnt that museums do sometimes use what they can get hold of from time to time, and don't always get it historically correct. And unfortunately, some modelling suppliers don't realise.


It may actually be slightly too big! :O If you count the dots on a real stug, it's a couple over, compared to that brass sheet! Anyone got access to a real stug to compare?
User avatar
Mic
Private

Posts: 52
Joined: Wed Feb 13, 2019 8:30 pm
Location: Panzer Werkstatt

Postby General Jumbo01 » Wed Apr 17, 2019 2:31 pm

My mate has one in his garden shed but he replaced the checkerboard for a custom laminate from B&Q. He said he'd be happy to post a photo of the laminate if that helps ;)

Sent from my ASUS_T00G using Tapatalk
User avatar
General Jumbo01
Corporal

Posts: 474
Joined: Sat Jul 14, 2018 8:06 pm
Location: I'm a Londoner that moved to Essex. Says it all really...:(
