Wooden bridges

Postby capt midnight » Sun Jun 23, 2019 4:53 pm

I just finished this up for a buddy and thought I'd post some pictures. It's the first of two bridges that he ordered from 116 models. He came across them on Facebook. All the parts were precut and ready to assemble. Very little trimming was required to get everything to fit just so.

This one is the smaller one, I'll be getting to the much larger one soon with pictures to come.

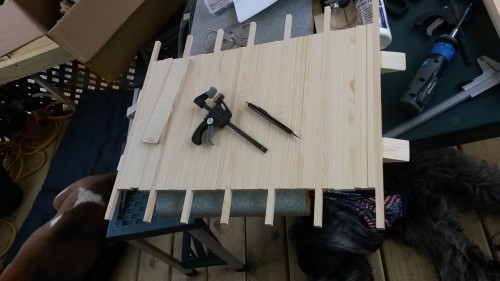

Here it is with the deck boards laid out to check spacing...


I forgot to get a shot of the underside, but the base is made up of a couple of heavy runners with angled ends for the approaches, and pieces of plywood for the approaches and the deck area. The decking boards are glued to these pieces.

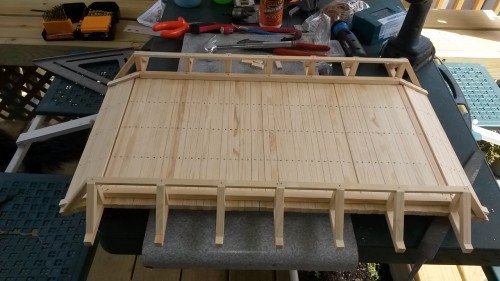

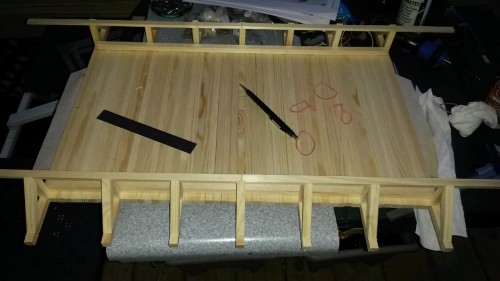

Here the main deck is glued on and I've started on the guide guard rails...

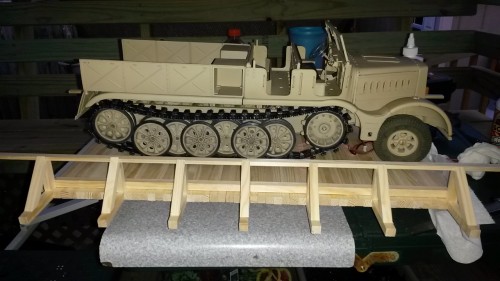

To give you an idea of the size, here's an Asiatam Famo on it for scale. More on the Famo to come later...

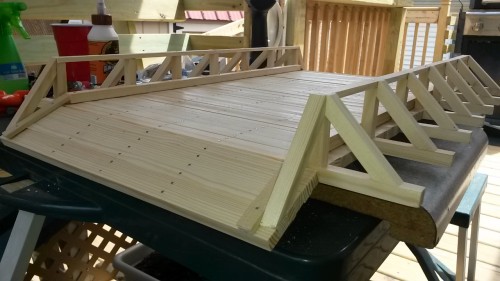

Here are a couple of shots of it pretty much finished up with the building. All the deck nails are in place. These are used as decoration rather than a structural element...

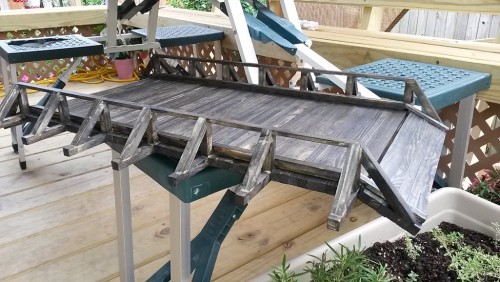

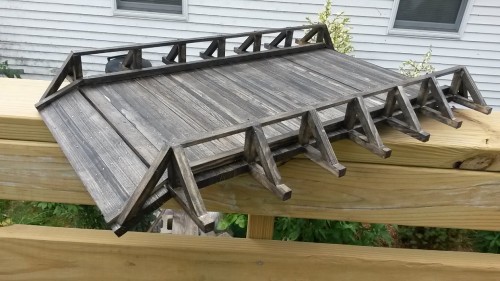

And a couple after the stain and some of the weathering was applied...




Thanks!

Bill
User avatar
capt midnight
Corporal

Posts: 497
Joined: Wed Oct 28, 2015 5:22 am
Location: Southern Indiana

Postby midlife306 » Sun Jun 23, 2019 7:51 pm

Nice work Bill, I have some scale woodwork to do myself, thanks for the inspiration
Any chance you could post a link to the bridge kits please?
Cheers
Wayne


Sent from my iPhone using Tapatalk
User avatar
midlife306
Warrant Officer 1st Class

Posts: 2130
Joined: Sun Aug 27, 2017 10:34 am

Postby capt midnight » Sun Jun 23, 2019 8:08 pm

Here ya go, Wayne...

https://www.facebook.com/search/top/?q= ... SEARCH_BOX

I just contacted him through Facebook Messenger. Really helpful with the ordering, funds conversion, and shipping process. He also sent me pictorial building instructions for both bridges. Really a top notch guy and a pleasure to do business with!

Bill
User avatar
capt midnight
Corporal

Posts: 497
Joined: Wed Oct 28, 2015 5:22 am
Location: Southern Indiana

Postby midlife306 » Sun Jun 23, 2019 8:35 pm

Cheers Bill
Looks like linky no worky?

Sent from my iPhone using Tapatalk
User avatar
midlife306
Warrant Officer 1st Class

Posts: 2130
Joined: Sun Aug 27, 2017 10:34 am

Postby silversurfer1947 » Sun Jun 23, 2019 9:27 pm

It works for me
User avatar
silversurfer1947
Lieutenant

Posts: 3276
Joined: Tue Oct 27, 2015 10:54 pm
Location: Bristol, UK

Postby midlife306 » Sun Jun 23, 2019 9:36 pm

It might be because I don’t have a facebollocks account lol


Sent from my iPhone using Tapatalk
User avatar
midlife306
Warrant Officer 1st Class

Posts: 2130
Joined: Sun Aug 27, 2017 10:34 am

Postby capt midnight » Sun Jun 23, 2019 11:24 pm

I'll bet that's why it doesn't work for you, Wayne. The only way I ever contacted him was through Facebook.

Bill
User avatar
capt midnight
Corporal

Posts: 497
Joined: Wed Oct 28, 2015 5:22 am
Location: Southern Indiana

Postby Snipah » Mon Jun 24, 2019 5:15 am

Hey guys just saw this. Peter is a top Bloke I have purchased his products too.... here is his page link. You could cut and paste https://www.facebook.com/116models

Cheers

Snipah
Recruit

Posts: 10
Joined: Wed Jul 11, 2018 11:22 pm
