3D printable Jagdpanzer 38t Hetzer in scale 1/6

Post all your larger scale RC Tanks here, from 1/12 all the way up to 1/4! all here! You may also post your larger scale figures here.

Postby 50koruny » Tue Nov 24, 2020 4:11 pm

Hi,
have decided to move on and trying out a "bigger" scale.
Redesigned my 1/16 Hetzer for 1/6 scale.
Most of the hardware is here

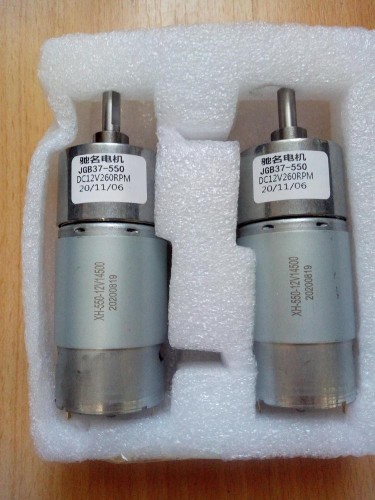

JGB37-550 - 12V and 260rpm.
It seems to be very suitable.High torque.
It will be attached directly to the drive sprocket.
No belts, chains etc...

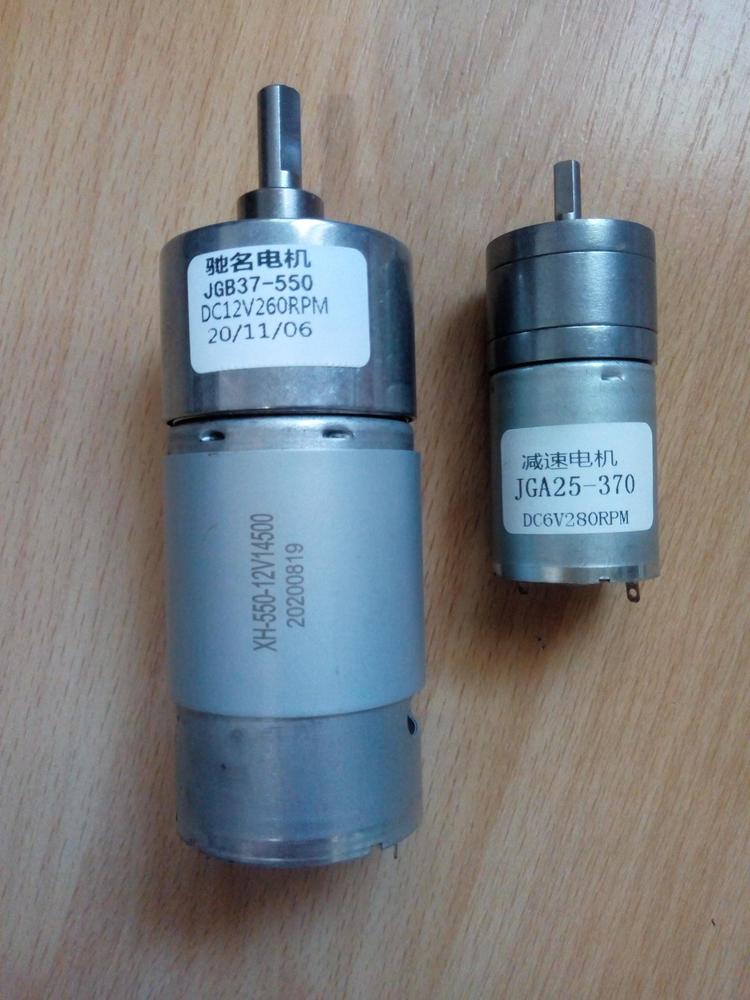

Comparsion with the JGA25-370 for the 1/16 Hetzer.

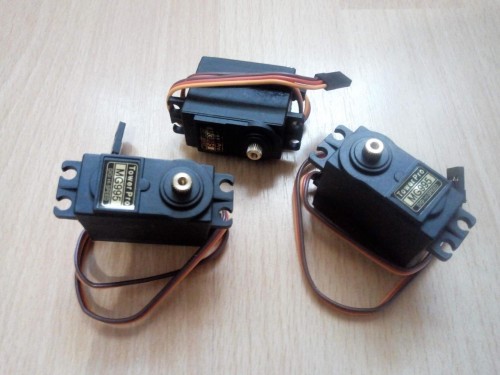

MG995 servo for the gun.Machinegun will be equipped with the same 360° servo like 1/16 version (FS90R)



Have printed some parts too.Photos will come soon.
Whole vehicle will be printed and assembled in some 2 weeks, i hope.

Assembly guide is almost finished, basicc STL files are ready.Just need to print this test vehicle.
Model will be ready like STL files for print or like a full kit (soon).
3D printer with at least 350x350x350mm buildplate is needed for print.
User avatar
50koruny
Lance Corporal

Posts: 138
Joined: Mon Sep 04, 2017 6:49 pm
Location: Slovakia

Postby Steenv » Thu Nov 26, 2020 8:52 am

50koruny wrote:Hi,
have decided to move on and trying out a "bigger" scale.
Redesigned my 1/16 Hetzer for 1/6 scale.
Most of the hardware is here
JGB37-550 - 12V and 260rpm.
It seems to be very suitable.High torque.
It will be attached directly to the drive sprocket.
No belts, chains etc...



Comparsion with the JGA25-370 for the 1/16 Hetzer.



MG995 servo for the gun.Machinegun will be equipped with the same 360° servo like 1/16 version (FS90R)



Have printed some parts too.Photos will come soon.
Whole vehicle will be printed and assembled in some 2 weeks, i hope.

Assembly guide is almost finished, basicc STL files are ready.Just need to print this test vehicle.
Model will be ready like STL files for print or like a full kit (soon).
3D printer with at least 350x350x350mm buildplate is needed for print.
This is great news. Will there be a upgrade price for us that bougt the 1/16 version
Cheers
Steen


Sendt fra min SM-N975F med Tapatalk
User avatar
Steenv
Sergeant

Posts: 530
Joined: Thu Oct 02, 2008 6:44 pm
Location: Denmark

Postby 50koruny » Thu Nov 26, 2020 12:13 pm

Hi.
Of course.
Owners of the 1/16 version will get a upgrade pridce.
User avatar
50koruny
Lance Corporal

Posts: 138
Joined: Mon Sep 04, 2017 6:49 pm
Location: Slovakia

Postby Steenv » Thu Nov 26, 2020 12:22 pm

50koruny wrote:Hi.
Of course.
Owners of the 1/16 version will get a upgrade pridce.
Fantastic

Sendt fra min SM-N975F med Tapatalk
User avatar
Steenv
Sergeant

Posts: 530
Joined: Thu Oct 02, 2008 6:44 pm
Location: Denmark

Postby Hoover » Mon Nov 30, 2020 11:57 am

I just need a bigger printer now lol
:D
The detail in the instructions are spot on :clap:
User avatar
Hoover
Recruit

Posts: 14
Joined: Sat Jul 18, 2015 3:01 pm

Postby 50koruny » Mon Nov 30, 2020 12:09 pm

Thank you.Trying to do my best.
Here is a working version of the Assembly guide for the 1/6 scale.
All changes between 1/16 and 1/6 can be seen there.

https://drive.google.com/file/d/1VdSx7k ... sp=sharing

I dont know why its so big - 250mb, working on that.
Lots of bugs there (have a new version of the Assembly, but its not exported to PDF.working on this every day)

Some of the biggest news are parts 01-13A to 01-13F and new system of the machinegun installation (04-43 to 04-47).
User avatar
50koruny
Lance Corporal

Posts: 138
Joined: Mon Sep 04, 2017 6:49 pm
Location: Slovakia

Postby 50koruny » Wed Dec 02, 2020 11:42 pm

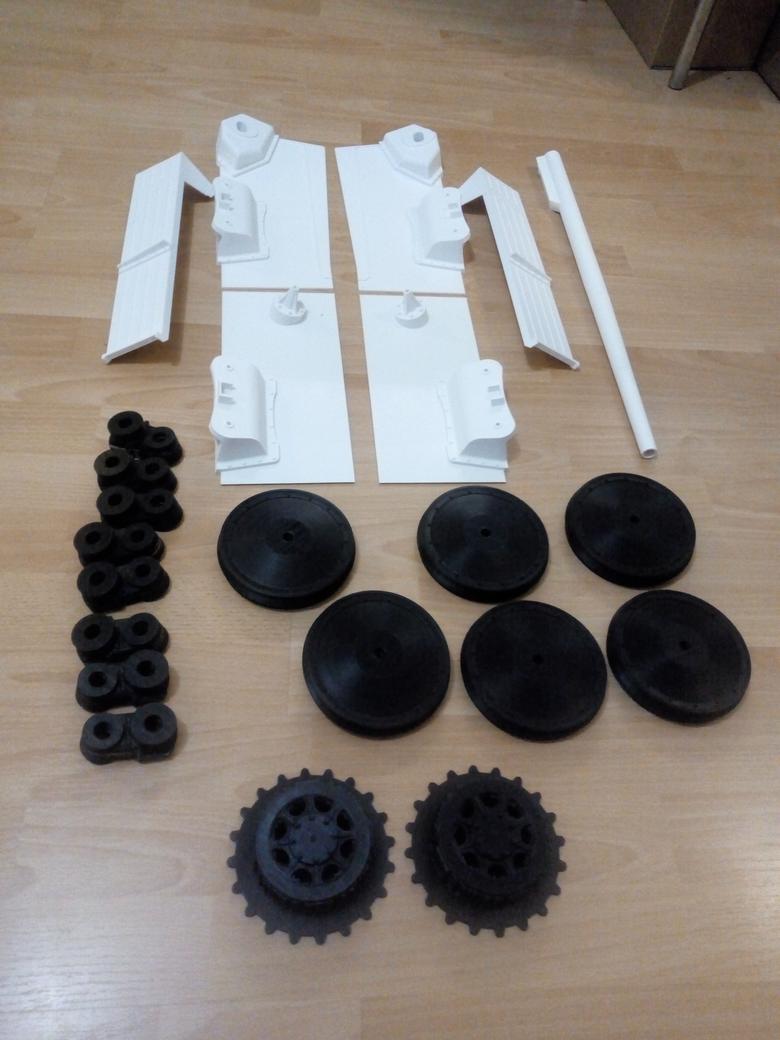

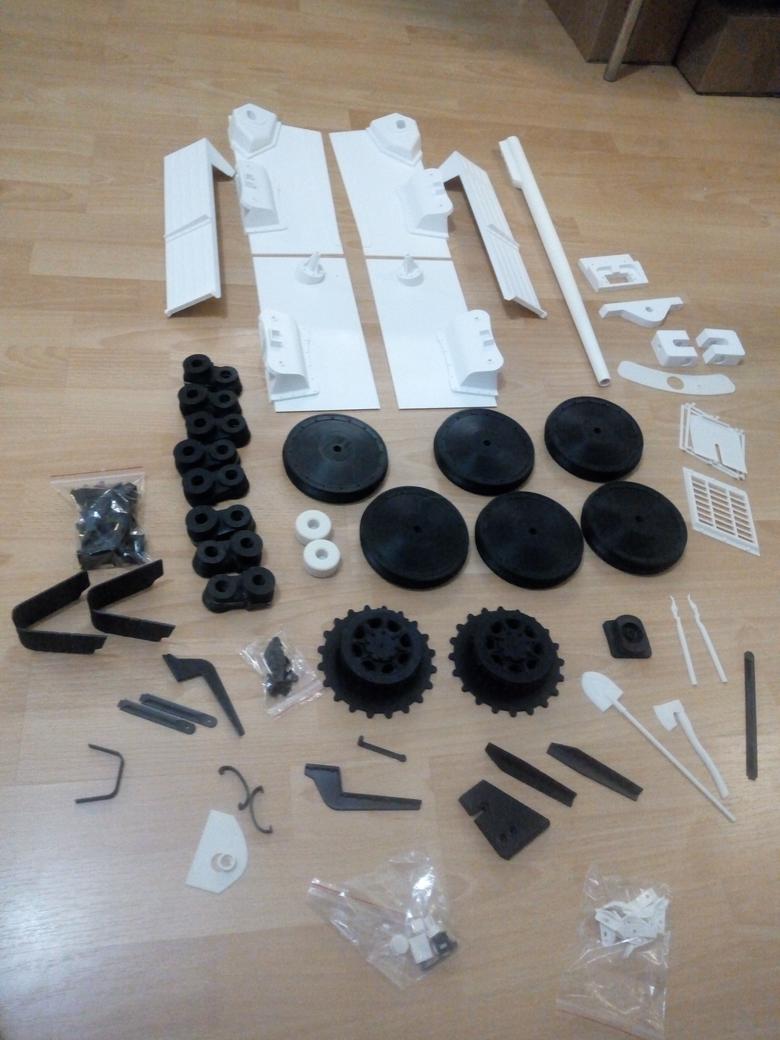

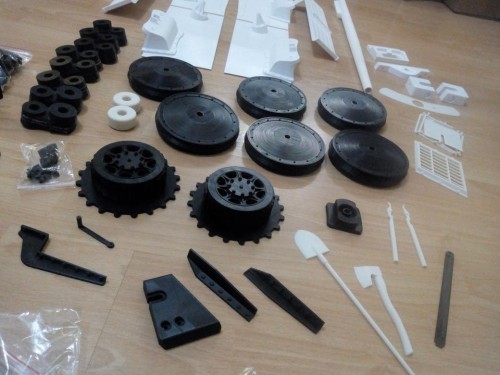

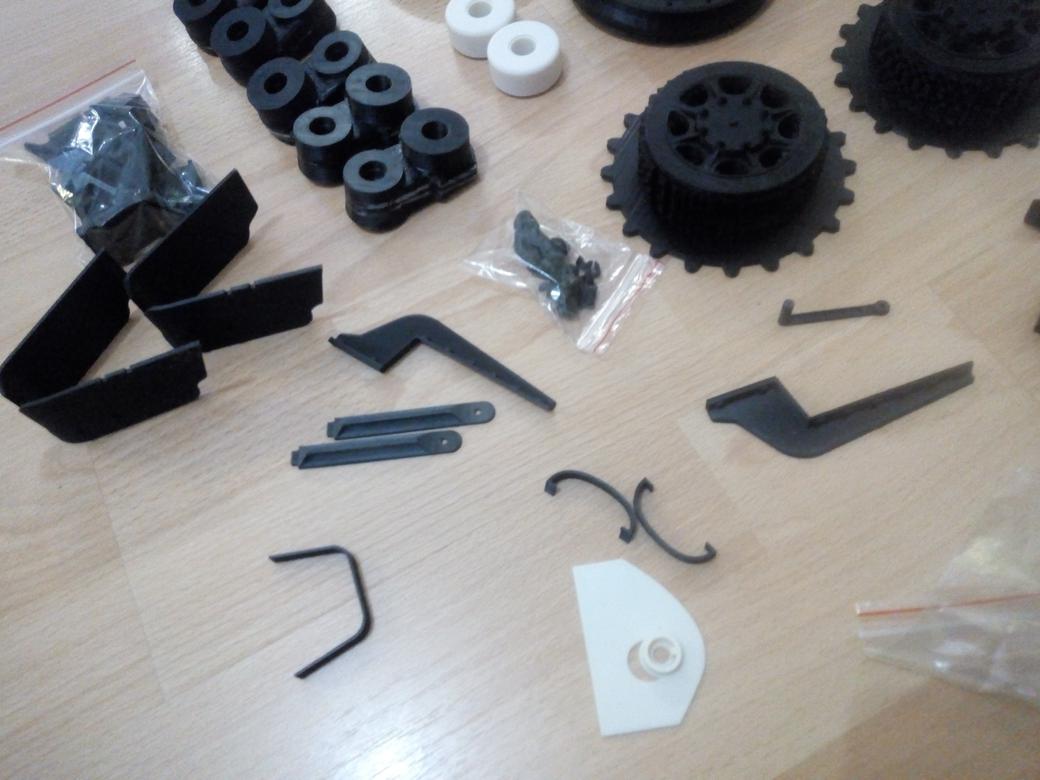

Its going fast.Have some new pictures.

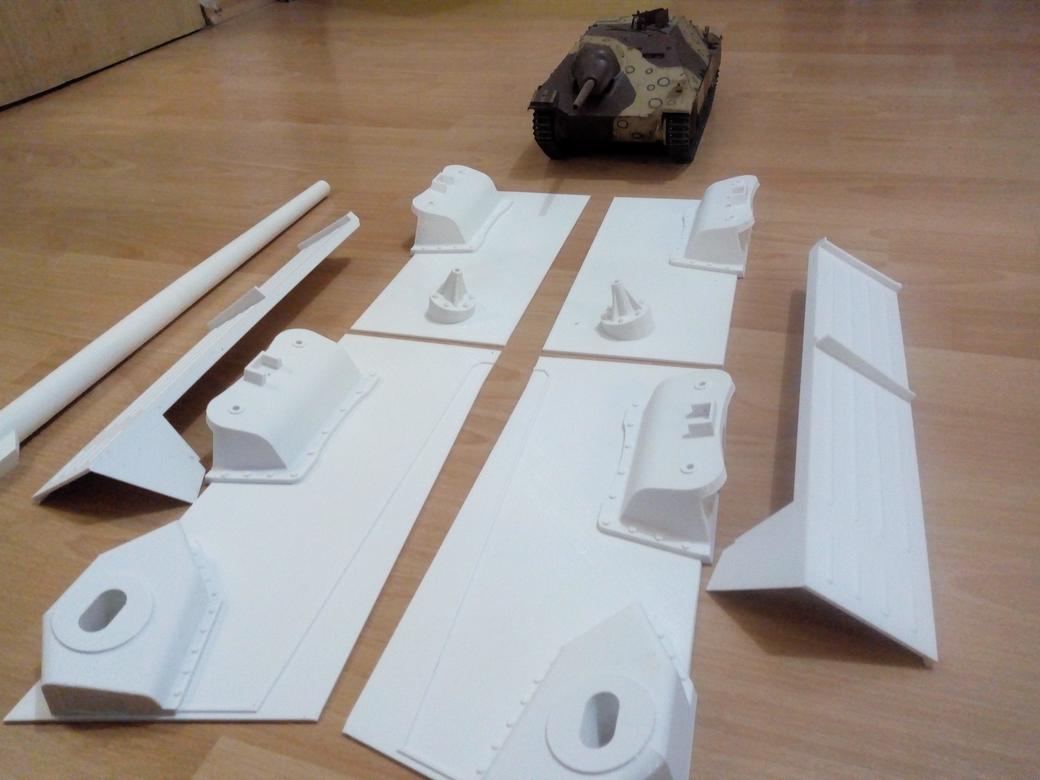

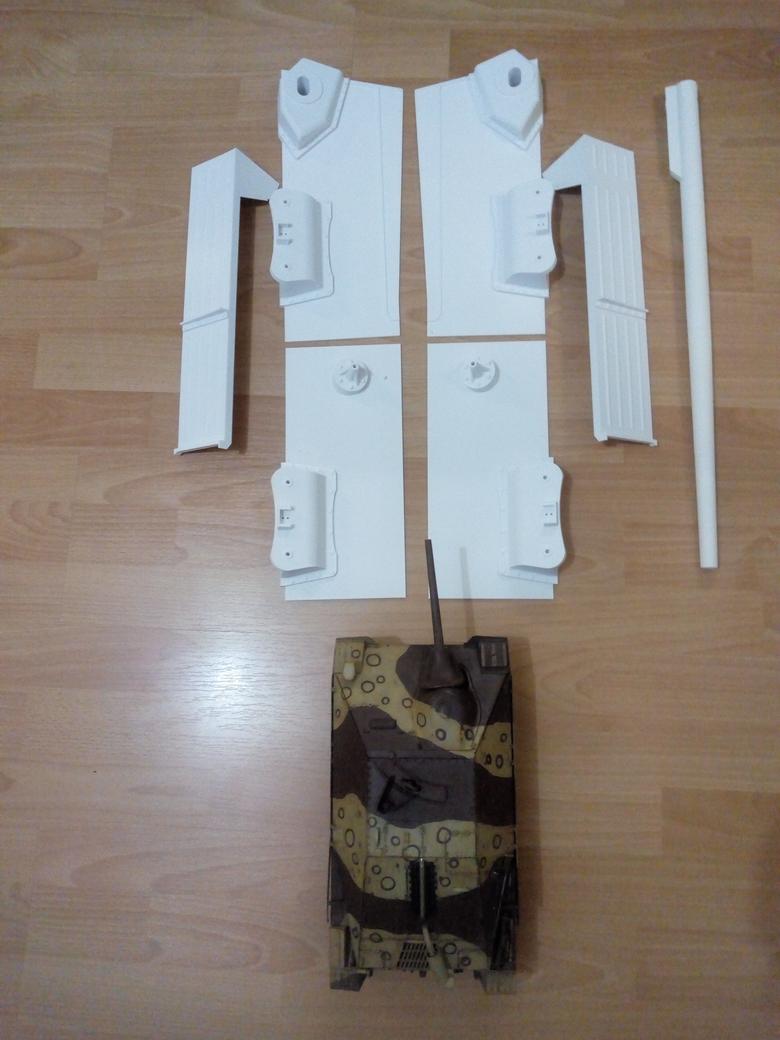

Comparsion with the 1/16
