Upgrading old Heng Long Tiger 1

This board contains easy-to-do fixes on your new tanks from stock. This will hopefully help beginners to get the accuracy they want from their models.

Postby walter » Mon Dec 09, 2019 10:47 am

I bought an Heng Long Tiger 1 all plastic some years ago. I thought the tank looked good and performed reasonable well for its cheep price.
Till one day I took it apart I must say I was not impressed. Once the screws where removed every part seemed to go its own crooked way.
I put it together again and put it on a shelf. There it sat for about three years.
Then one day I came across some very reasonable priced Tiger 1 metal upgrade parts. And that how the upgrade started.
I bought metal tracks, road wheels,suspension arms, hatches, commanders copula and other small parts.
The front of the lower hull needed the most of the stiffening and bracing.
The idler arm needed rework and track tension added.

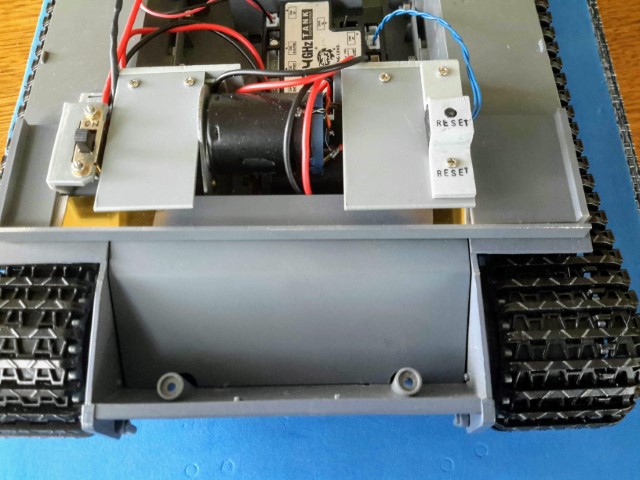

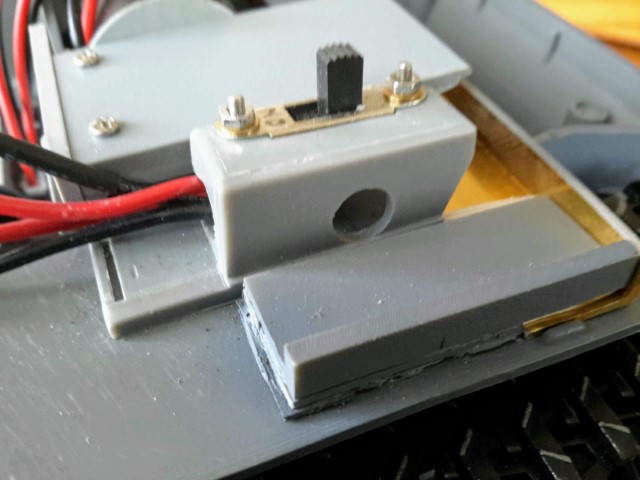

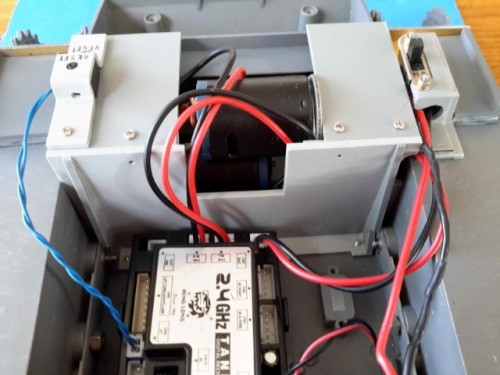

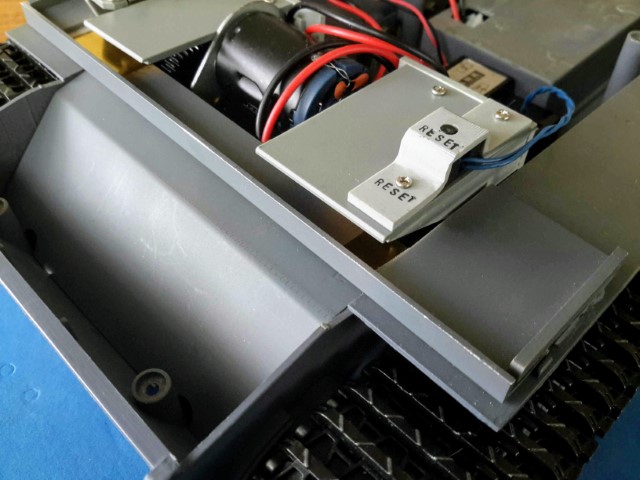

I did not like the ON-OF switch and the reset switch at the bottom of the tank. So shifting the switches just underneath the hatches will give
me good access from above.
Everything went well except the suspension arms. All the wheel axle threads where threaded at an angle. Hard to say if deliberate or sloppy jigs I did rework them all.
Here are some photos.

walter
Sergeant

Posts: 529
Joined: Fri Mar 10, 2017 12:53 pm
Location: Geelong Australia

Postby walter » Mon Dec 09, 2019 10:51 am

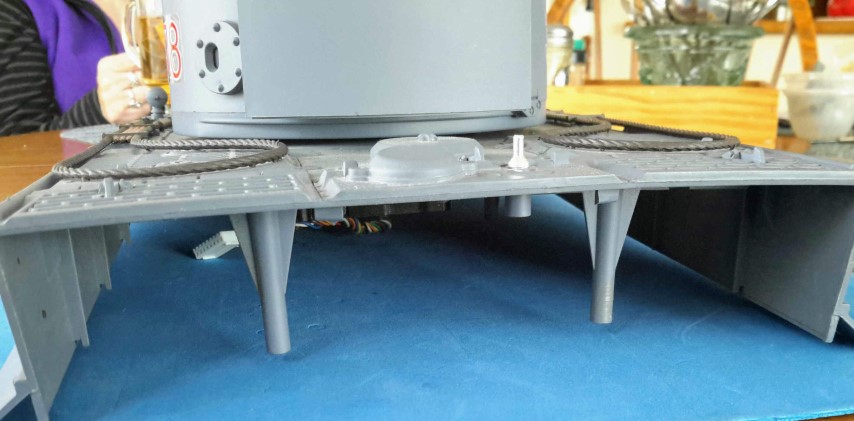

Upper hull. Clearly visible how distorted.
Attachments
IMG_20190908_100115 (2) (Small).jpg
IMG_20190908_100115 (2) (Small).jpg (74.69 KiB) Viewed 883 times

walter
Sergeant

Posts: 529
Joined: Fri Mar 10, 2017 12:53 pm
Location: Geelong Australia

Postby walter » Mon Dec 09, 2019 10:54 am

Lower hull modification.
Attachments
IMG_20190908_101348 (2) (Small).jpg
IMG_20190908_101348 (2) (Small).jpg (74.86 KiB) Viewed 881 times

walter
Sergeant

Posts: 529
Joined: Fri Mar 10, 2017 12:53 pm
Location: Geelong Australia

Postby walter » Mon Dec 09, 2019 10:55 am

lower hull.
Attachments
IMG_20190908_101414 (2) (Small).jpg
IMG_20190908_101414 (2) (Small).jpg (63.2 KiB) Viewed 880 times

walter
Sergeant

Posts: 529
Joined: Fri Mar 10, 2017 12:53 pm
Location: Geelong Australia

Postby walter » Mon Dec 09, 2019 10:56 am

Lower hull front modification.
Attachments
IMG_20190908_101430 (2) (Small).jpg
IMG_20190908_101430 (2) (Small).jpg (67.86 KiB) Viewed 879 times

walter
Sergeant

Posts: 529
Joined: Fri Mar 10, 2017 12:53 pm
Location: Geelong Australia

Postby walter » Mon Dec 09, 2019 11:06 am

Lower hull back.
Attachments
IMG_20190914_094552 (2) (Small).jpg

walter
Sergeant

Posts: 529
Joined: Fri Mar 10, 2017 12:53 pm
Location: Geelong Australia

Postby walter » Mon Dec 09, 2019 11:08 am

Lower hull.
Attachments
IMG_20190908_101602 (2) (Small).jpg
IMG_20190908_101602 (2) (Small).jpg (53.41 KiB) Viewed 876 times

walter
Sergeant

Posts: 529
Joined: Fri Mar 10, 2017 12:53 pm
Location: Geelong Australia

Postby walter » Mon Dec 09, 2019 11:11 am

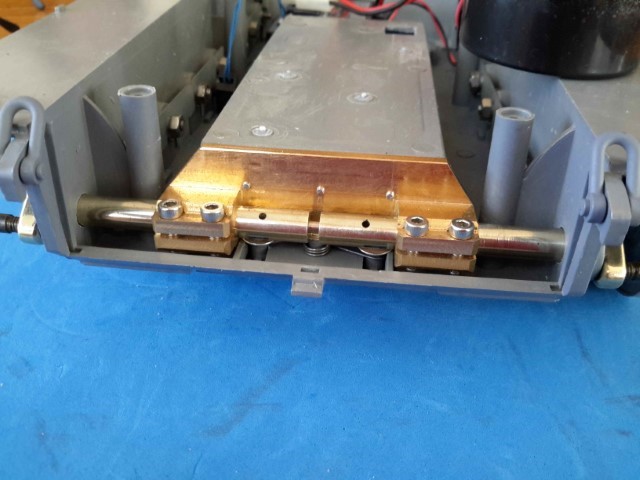

Back end before track tension installation.
Attachments
IMG_20190914_083837 (2) (Small).jpg
IMG_20190914_083837 (2) (Small).jpg (70.45 KiB) Viewed 875 times

walter
Sergeant

Posts: 529
Joined: Fri Mar 10, 2017 12:53 pm
Location: Geelong Australia

Postby walter » Mon Dec 09, 2019 11:12 am

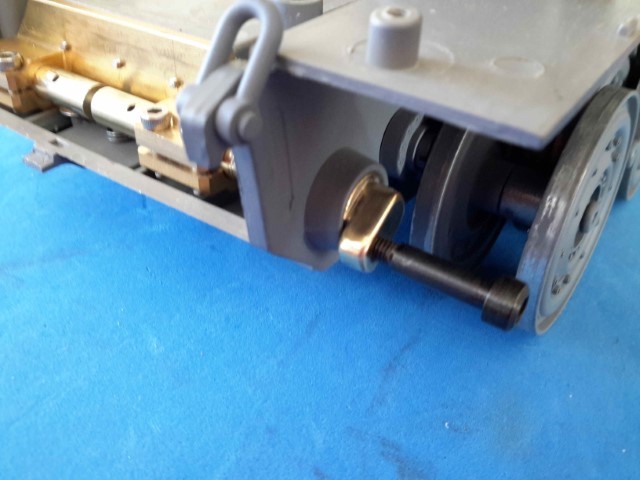

Track tension.
Attachments
IMG_20190914_092512 (2) (Small) (Small).jpg
IMG_20190914_092512 (2) (Small) (Small).jpg (94.71 KiB) Viewed 873 times

walter
Sergeant

Posts: 529
Joined: Fri Mar 10, 2017 12:53 pm
Location: Geelong Australia

Postby walter » Mon Dec 09, 2019 11:14 am

Track tension with idler arm.
Attachments
IMG_20190914_092529 (2) (Small) (Small).jpg
IMG_20190914_092529 (2) (Small) (Small).jpg (88.74 KiB) Viewed 872 times

walter
Sergeant

Posts: 529
Joined: Fri Mar 10, 2017 12:53 pm
Location: Geelong Australia

Postby walter » Mon Dec 09, 2019 11:15 am

The other side.
Attachments
IMG_20190914_092620 (2) (Small).jpg
IMG_20190914_092620 (2) (Small).jpg (88.59 KiB) Viewed 880 times

walter
Sergeant

Posts: 529
Joined: Fri Mar 10, 2017 12:53 pm
Location: Geelong Australia

Postby walter » Mon Dec 09, 2019 11:17 am

Suspension arm.
Attachments
IMG_20190914_084210_1 (2) (Small).jpg
IMG_20190914_084210_1 (2) (Small).jpg (88.78 KiB) Viewed 878 times

walter
Sergeant

Posts: 529
Joined: Fri Mar 10, 2017 12:53 pm
Location: Geelong Australia

Postby walter » Mon Dec 09, 2019 11:19 am

View.
Attachments
IMG_20190914_084314 (2) (Small).jpg
IMG_20190914_084314 (2) (Small).jpg (81.24 KiB) Viewed 877 times

walter
Sergeant

Posts: 529
Joined: Fri Mar 10, 2017 12:53 pm
Location: Geelong Australia

Postby walter » Mon Dec 09, 2019 11:21 am

Rework is visible.
Attachments
IMG_20190914_084340 (2) (Small).jpg
IMG_20190914_084340 (2) (Small).jpg (76.13 KiB) Viewed 876 times

walter
Sergeant

Posts: 529
Joined: Fri Mar 10, 2017 12:53 pm
Location: Geelong Australia

Postby walter » Mon Dec 09, 2019 11:22 am

Metal copula installed.
Attachments
IMG_20190908_095856 (2) (Small).jpg
IMG_20190908_095856 (2) (Small).jpg (56.47 KiB) Viewed 875 times

walter
Sergeant

Posts: 529
Joined: Fri Mar 10, 2017 12:53 pm
Location: Geelong Australia

Postby walter » Mon Dec 09, 2019 11:23 am

Another view.
Attachments
IMG_20190908_100128 (2) (Small).jpg
IMG_20190908_100128 (2) (Small).jpg (58.76 KiB) Viewed 874 times

walter
Sergeant

Posts: 529
Joined: Fri Mar 10, 2017 12:53 pm
Location: Geelong Australia

Postby walter » Mon Dec 09, 2019 11:24 am

Metal hatches installed.
Attachments
IMG_20190908_095928 (2) (Small).jpg
IMG_20190908_095928 (2) (Small).jpg (58.74 KiB) Viewed 873 times

walter
Sergeant

Posts: 529
Joined: Fri Mar 10, 2017 12:53 pm
Location: Geelong Australia

Postby walter » Mon Dec 09, 2019 11:26 am

Metal road wheels,idler wheel and tracks.
Attachments
IMG_20191129_091141 (2) (Small).jpg

walter
Sergeant

Posts: 529
Joined: Fri Mar 10, 2017 12:53 pm
Location: Geelong Australia

Postby walter » Mon Dec 09, 2019 11:27 am

Driving wheel.
Attachments
IMG_20191129_091148 (2) (Small).jpg

walter
Sergeant

Posts: 529
Joined: Fri Mar 10, 2017 12:53 pm
Location: Geelong Australia

Postby walter » Mon Dec 09, 2019 11:28 am

Finished.
Attachments
IMG_20191129_085727 (2) (Small).jpg
