T-72 TK-6.0/6.1

Feel free to discuss anything and everything to do with tanking here!

Postby Woz » Wed Jul 03, 2019 7:37 pm

Just picked up my T-72 and thought I'd post about the New Heng Long.

Like the latest HL's this comes with all the parts on spruces and as there's been plenty of pics online I won't bore you with more. So I'll tell you whats new.

First of it comes with a small 7.4v (1800mAh) Li-ion battery and a 4.2v (800mA) usb charger (the instructions say it'll take 4 hours to charge).

As you can see from the pic the battery box is only big enough for the small battery and you're going to have to cut it up to fit a normal sized 7.2v battery in there. I ain't a fan of these new batteries so I'll be digging the dremel out.



It can fire BB's and be used for IR battles.

The biggest change is the electronics. It comes with its own instruction manual

Here's the wiring diagrams for now so you can see what it's got-



One thing I did notice is a 6v power out for wifi cameras which makes me wonder what HL have got planned for the future.
User avatar
Woz
Warrant Officer 2nd Class

Posts: 1276
Joined: Thu Oct 23, 2008 12:06 am
Location: UK

Postby 43rdRecceReg » Wed Jul 03, 2019 11:58 pm

Thanks, Woz. The Circuit diags. will be very useful. :thumbup: I imagine the 6v camera connection could be for an FPV unit.
User avatar
43rdRecceReg
Captain

Posts: 4035
Joined: Fri Jul 31, 2015 11:38 am
Location: North West Highlands, Scotland

Postby Woz » Sun Jul 07, 2019 3:08 pm

Took it for a spin and the new electronics are a huge improvement even over the 5.3 model I have.

Things like the lights can be turned on/off from the controller. It has two speed modes (High/Low) which limits the top speeds. Even in High speed mode the tank has good control at low speed. It also has Cannon stabilization and double current system (?) for future models

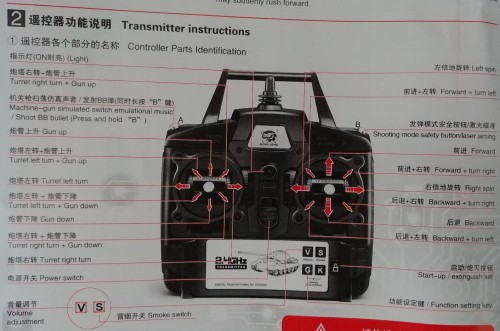

Anyway here's the controller instructions.


User avatar
Woz
Warrant Officer 2nd Class

Posts: 1276
Joined: Thu Oct 23, 2008 12:06 am
Location: UK

Postby Jimster » Sun Jul 07, 2019 4:14 pm

All the advances in tank electronics is fantastic. Seems like something better is coming out all the time.

Jimster
Corporal

Posts: 477
Joined: Mon Dec 10, 2018 2:51 am
Location: Illinois

Postby General Jumbo01 » Sun Jul 07, 2019 8:56 pm

It's certainly good to see more functionality being controlled from the transmitter. There should only be one switch on the vehicle and that's the power switch, preferably not beneath the hull or under a hatch that can't be easily opened. We could do with some cross brand standards though.

Thanks for posting the diagrams - very useful.
User avatar
General Jumbo01
Staff Sergeant

Posts: 760
Joined: Sat Jul 14, 2018 8:06 pm
Location: I'm a Londoner that moved to Essex. Says it all really...:(

Postby Woz » Sun Jul 07, 2019 10:29 pm

I would have thought HL would release more info on the new boards and their capabilities.

The IR transmitter is in the manlet next to the main gun-


The IR sensor plugs in under the loaders hatch and the sensor has a magnet holding in place on top of the turret-


Another new thing is the recoil. Now the recoil takes the slack out of the tracks, so it doesn't move back but seems to just rock back on the spot.
User avatar
Woz
Warrant Officer 2nd Class

Posts: 1276
Joined: Thu Oct 23, 2008 12:06 am
Location: UK

Postby Alan123 » Tue Nov 05, 2019 7:33 pm

I have one too and was very impressed.

I need another one now for IR battles.

I tried battling with my Tamiya Leo but the Leo could hit the T72 from even behind a brick wall and the T72 could not hit the Leo at all. Probably 2 x HLs will work ok.

What other HL tanks have the v6 in them?
User avatar
Alan123
Recruit

Posts: 20
Joined: Tue Jan 12, 2010 9:13 am
Location: Germany

Postby Max-U52 » Tue Nov 05, 2019 8:28 pm

I just ordered a T90 with the 6.0 electronics, and I've seen them in the JagdPanther, the Sherman, the leopard, the Abrams, and the tiger. I think they've also got it in the Walker Bulldog now. I already did a video of the 6.0 in the JP, but I suppose I could do another one on the t-90 when it gets here. I can also set the two up and get a video of the battle action and how much range they've got and stuff like that. I know fssttanks a pretty comprehensive review at RCU, but I do not believe he included any video, and we all know the deal, if there's no video, it's not real! @)

If you go to eBay and search henglong 6.0, they will show you all the different tanks that have it in it.
User avatar
Max-U52
Lieutenant

Posts: 3184
Joined: Sat Sep 12, 2015 8:56 pm
Location: Detroit

Postby percy1510 » Fri Nov 08, 2019 9:45 am

I see that on the instructions for the 6.1 version of the board there is support for servo recoil. Does anyone know if the 6.1 board is available yet and where to get hold of one?

percy1510
Corporal

Posts: 301
Joined: Sat Oct 04, 2008 5:22 pm
Location: Stoke on Trent

Postby john1970 » Fri Nov 08, 2019 1:23 pm

MAKO TK6.0 will allow servo recoil on tk6.0 will also let you use taigen flash unit that tk6.0 doesn't

http://rctanksaustralia.com/store/index.php?main_page=product_info&cPath=3&products_id=67

john1970
Recruit

Posts: 41
Joined: Sun Jun 02, 2013 2:29 pm

Postby percy1510 » Fri Nov 08, 2019 5:48 pm

Ah thank you. Looks like you can order the new mako board for less than £30 so well worth a look.
I have an older mako 2018 board but the connections are all different so I might save it for another build and order the new tk6.0 mako

percy1510
Corporal

Posts: 301
Joined: Sat Oct 04, 2008 5:22 pm
Location: Stoke on Trent

Postby percy1510 » Sat Nov 09, 2019 12:24 pm

Has anyone ordered from Rc tank Australia. What’s delivery like?

percy1510
Corporal

Posts: 301
Joined: Sat Oct 04, 2008 5:22 pm
Location: Stoke on Trent

Postby Max-U52 » Sat Nov 09, 2019 5:55 pm

I've ordered lots of stuff from Kevin (RCTA) and it takes about two weeks to get to Detroit, should be less to the UK.
User avatar
Max-U52
Lieutenant

Posts: 3184
Joined: Sat Sep 12, 2015 8:56 pm
Location: Detroit
