1/6 M5 Stuart RC 21st Century Tank

[Rebel 1]

Hi Everyone,
I started this build a while back on RC Groups tank pages. If you want to see more here's a link to my build: http://www.rcgroups.com/forums/showthread.php?t=2628006

I will post a few photos from my build now and I"ll post more as soon as I have more progress to share. This tank will be for sale when its completed. I have a few more M5's to build if there is enough interest.

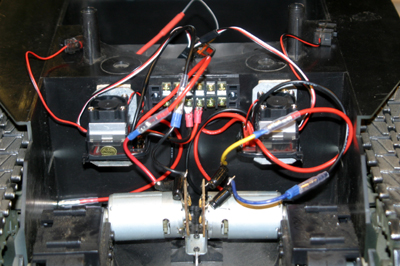

Out with the old ESC and controls and in with the new dual ESC setup.

IMG_8660 13 x 8.6 EXLR.jpg (133.94 KiB) Viewed 1741 times

1/6 M5 Stuart compared to my 1/16th Tamiya M4 Sherman.

IMG_8667 13 x 8.6 EXLR.jpg (130.83 KiB) Viewed 1741 times

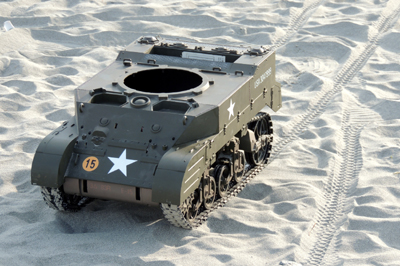

First test run in Newport, RI on Eastons Beach. I ran the tank that day with the upper hull just sitting in place.

DSCN9911 13 x 8.6 EXLR.jpg (164.09 KiB) Viewed 1741 times

DSCN9918 13 x 8.6 EXLR.jpg (169.48 KiB) Viewed 1741 times

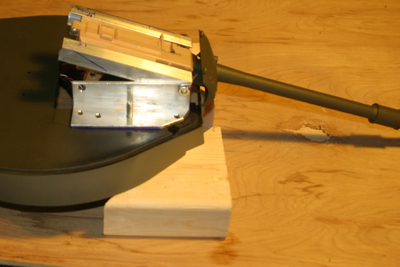

Mounting bracket for the airsoft gun that also has recoil, but it hasn't been installed at the time these photos were taken.

IMG_8636 13 x 8.6 EXLR.jpg (93.44 KiB) Viewed 1741 times

IMG_8646 13 x 8.6 LR less than 350 kb.jpg (88.8 KiB) Viewed 1741 times

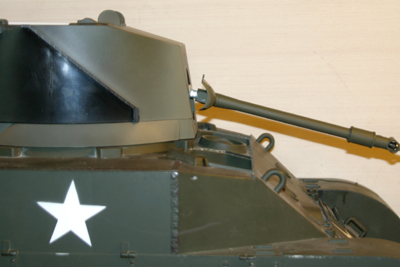

Now a couple photos with the upper turret half in place. The 1/16th M41 gun barrel is just to show the elevation. Since these photos were taken I have made an aluminum M5 gun barrel for the airsoft gun using aluminum tubing. I turned the taper on a Harbor Freight Hobby lathe I have.

IMG_8642 13 x 8.6 EXLR.jpg (83.72 KiB) Viewed 1741 times

IMG_8641 13 x 8.6 EXLR.jpg (86.17 KiB) Viewed 1741 times

Feel free to comment whether good or bad.

[Rebel 1]

Hi Everyone,
Here's a few video's I have posted in my build thread on RC Groups Tanks page. I hope you like what I've been able to do so far with my 1/6 21st Century M5. As always, feel free to comment either way!!!

Servo Mods:

phpBB [video]

360 Degree Turret:

phpBB [video]

Servo operated gun elevation:

phpBB [video]

With turret top off:

phpBB [video]

Servo Recoil unit testing:

phpBB [video]

OK, I fixed the video's. This site is similar to the ship model forum and I'm glad the photos can be simply uploaded from my computer which is much better than a blog site I used to be a member of.

Here's one more video showing my aluminum gun barrel with the recoil servo fully installed and working. I'm very happy the way everything has turned out so far.

phpBB [video]

[Rebel 1]

Hi Everyone,
Here's a couple video's of my M5 at the beach. I should have added them to my last post, but better late than never they say!!! This time I used the video link in the tool bar, I'm new so cut me a break!!!LOL

Eastons Beach Newport, RI.

phpBB [video]

phpBB [video]

This video was done on a small beach inside Fort Adams in Newport, RI the same day. This place is somewhat sheltered from the wind at Eastons beach.

phpBB [video]
