Page 8 of 10
Re: VK 16.02 Leopard
Posted: Fri Jul 01, 2022 7:41 am
by Edumardo
Hi friends,
Test run at home
. I used my Flysky fs-i6 and a cheap dual way ESC as electronics:
Re: VK 16.02 Leopard
Posted: Thu Jul 21, 2022 12:34 pm
by Edumardo
Hi friends,
The project is not stopped, it is on vacation for now
The project has reached the desired level of maturity and, as I mentioned before, it is time to share it:
https://github.com/edumardo/VK-16.02-Leopard
On this page you can download all available STL files: hull, upper, suspension and rear stuff. Go to
Releases on the right side, and click on
Source code (zip). Please read carefully the README file, this project is WIP and require additional non-printable parts.
Also take a look to the assembly documents, an example:
Re: VK 16.02 Leopard
Posted: Fri Jul 22, 2022 2:09 pm
by Edumardo
I also published the model on Printables:
https://www.printables.com/es/model/245 ... 02-leopard
This site is more user friendly.
Re: VK 16.02 Leopard
Posted: Fri Jul 22, 2022 3:07 pm
by Panzer Fenris
Beautiful model, and using the print bed to texture the armour plates is a stroke of genius!
Also, thanks a lot for making the files public. Very generous, and maybe I'll give this particular model a crack one day.
I remember having a lot of fun with this little critter back when I played World of Tanks.
Re: VK 16.02 Leopard
Posted: Fri Jul 22, 2022 11:44 pm
by c.rainford73
Thank you for posting these files. It's very well presented
Re: VK 16.02 Leopard
Posted: Tue Aug 02, 2022 7:49 am
by Edumardo
Panzer Fenris wrote:I remember having a lot of fun with this little critter back when I played World of Tanks.
Yes, small and heavy, perfect for scouting and ramming
After some troubles with thingiverse website, the model is also available there:
https://www.thingiverse.com/thing:5446778
Remember friends that the most updated files will always be on github, check the version before starting printing.
Re: VK 16.02 Leopard
Posted: Tue Nov 08, 2022 10:23 am
by Edumardo
Hi gyus,
I've been busy with other projects, but good news! I'm about to publish the turret files, including turning, elevation and recoil
I have spent hours and hours and hours redesigning and printing until I came up with a valid design. The recoil system is fully inspired in the
RiskyR M4A1 Sherman.
A few photos of the model and construction:

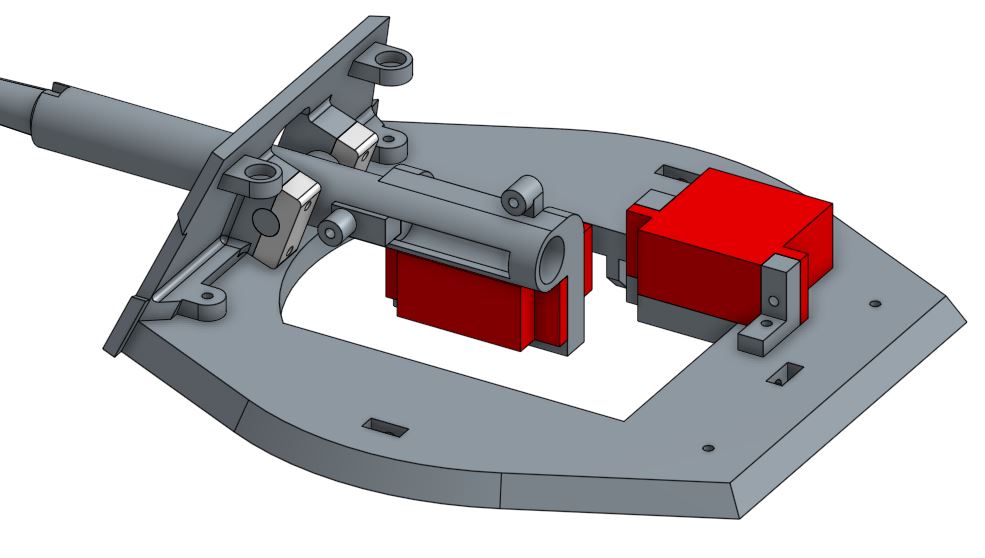

- turret 1.jpg (46.52 KiB) Viewed 1117 times

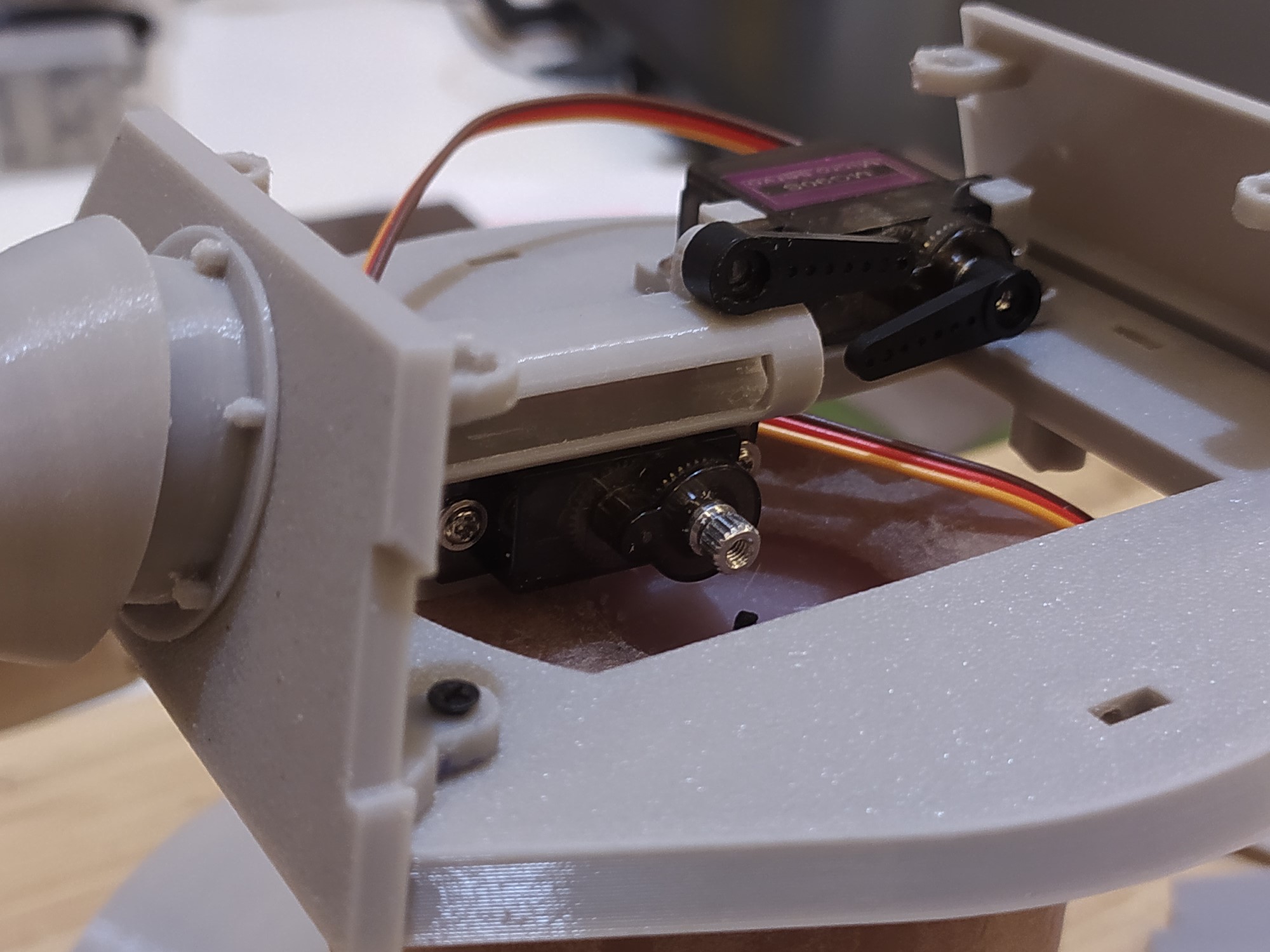

- IMG_20221107_234055.jpg (346.78 KiB) Viewed 1117 times

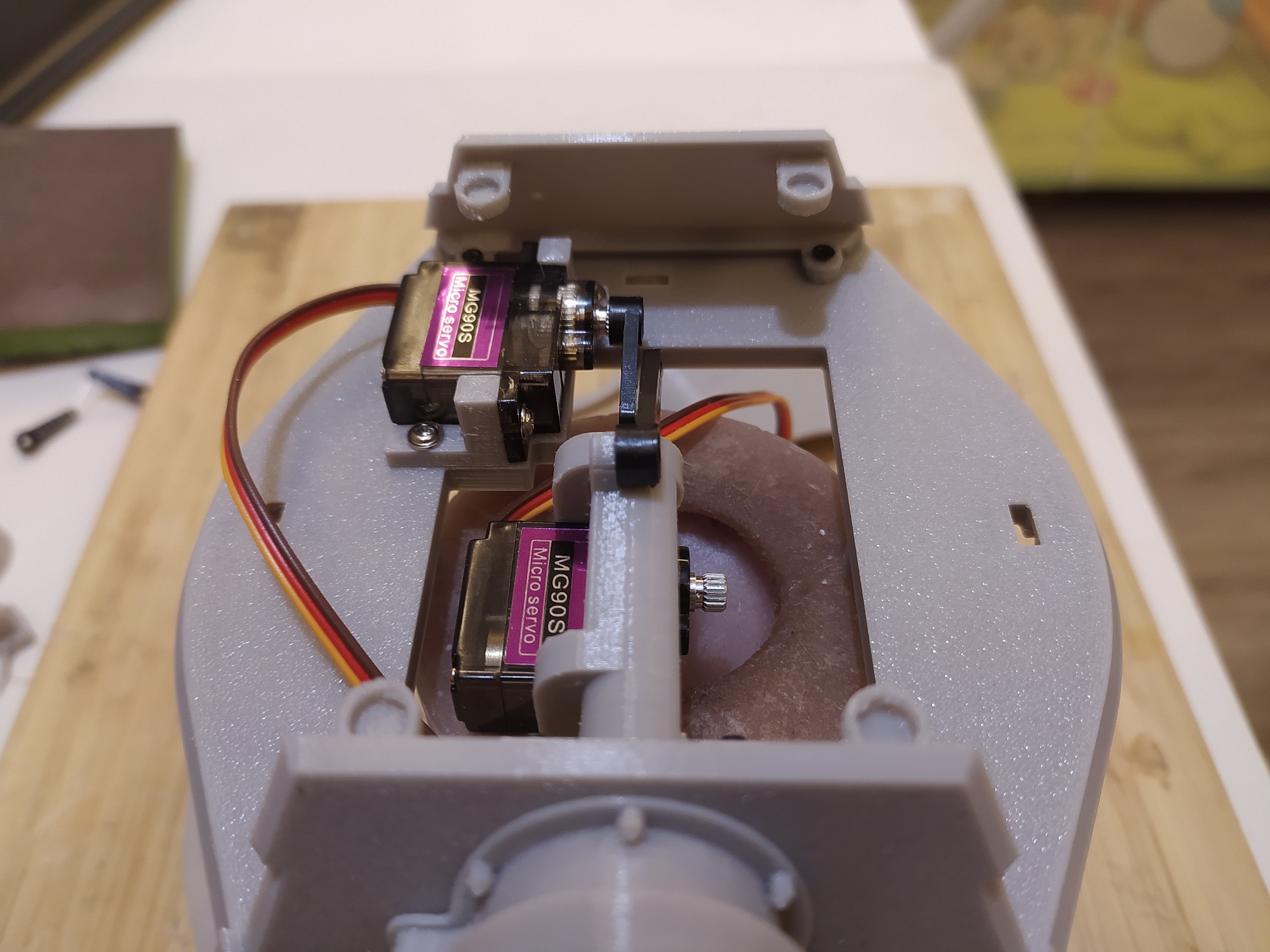

- IMG_20221107_234046.jpg (596.74 KiB) Viewed 1117 times

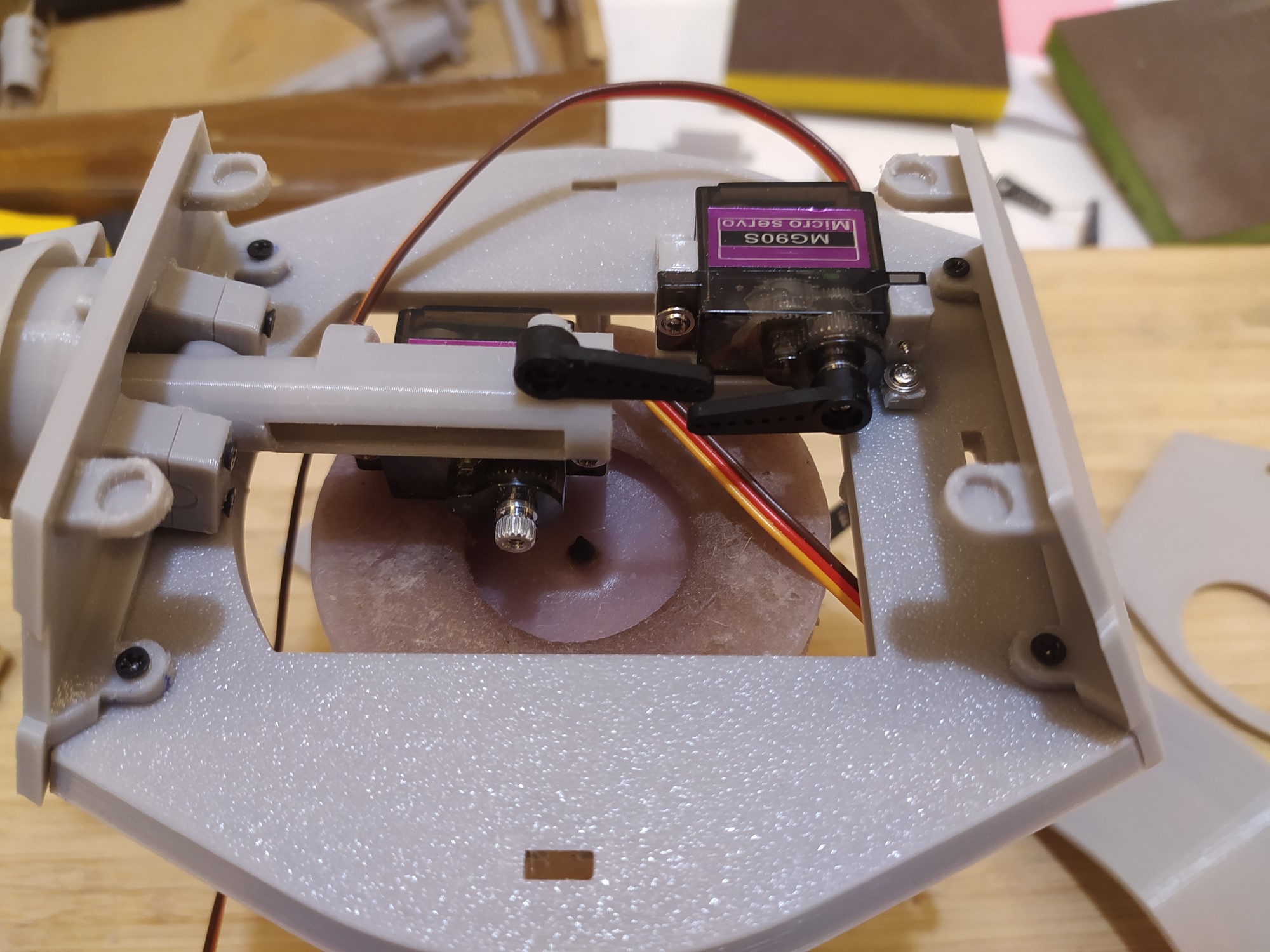

- IMG_20221107_234039.jpg (441.54 KiB) Viewed 1117 times

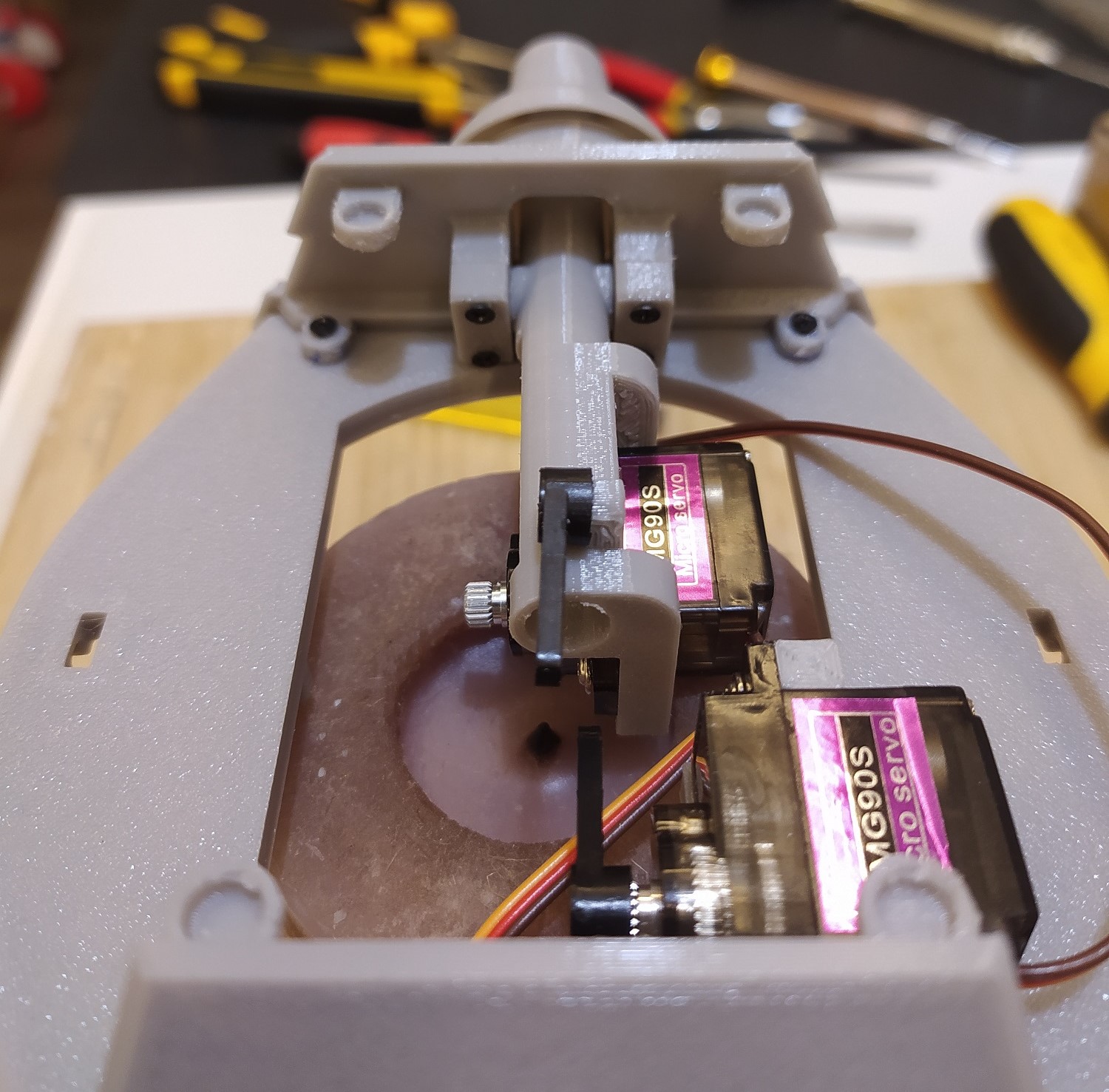

- IMG_20221107_234030.jpg (394.62 KiB) Viewed 1117 times

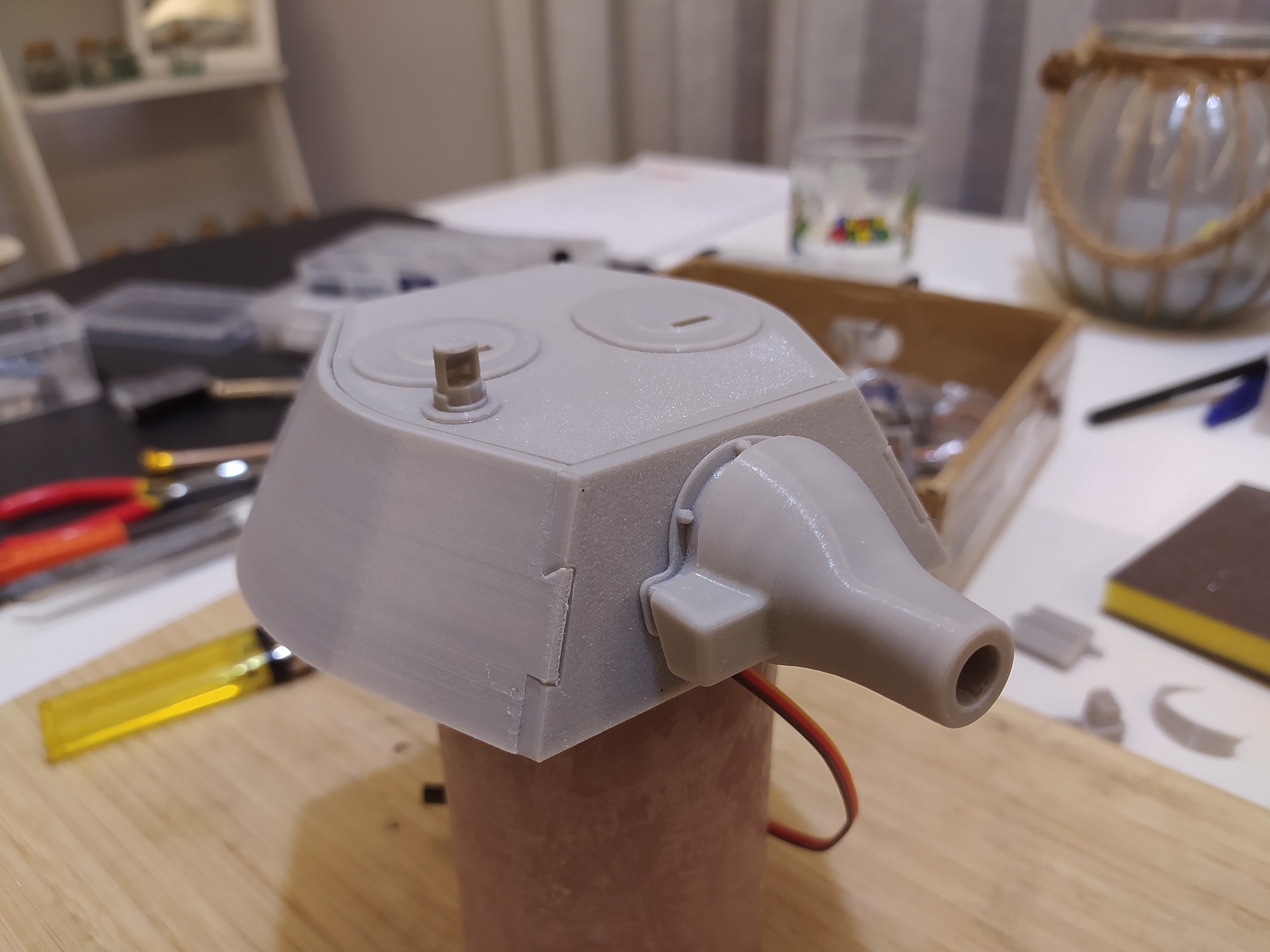

The entire turret and mantlet looks very smooth
- IMG_20221107_234336.jpg (529.47 KiB) Viewed 1117 times
Re: VK 16.02 Leopard
Posted: Tue Nov 08, 2022 6:04 pm
by RiskyR
The first thing I was thinking when I saw your pictures: "hey, that looks familiar!"
Looks very nice, I'm glad I was able to inspire someone to do this themselves! Keep up the good work
Re: VK 16.02 Leopard
Posted: Fri Nov 25, 2022 7:42 am
by Edumardo
Hi guys,
I have released the turret files on printables:
https://www.printables.com/es/model/245 ... 02-leopard
I also updated the assembly guide:

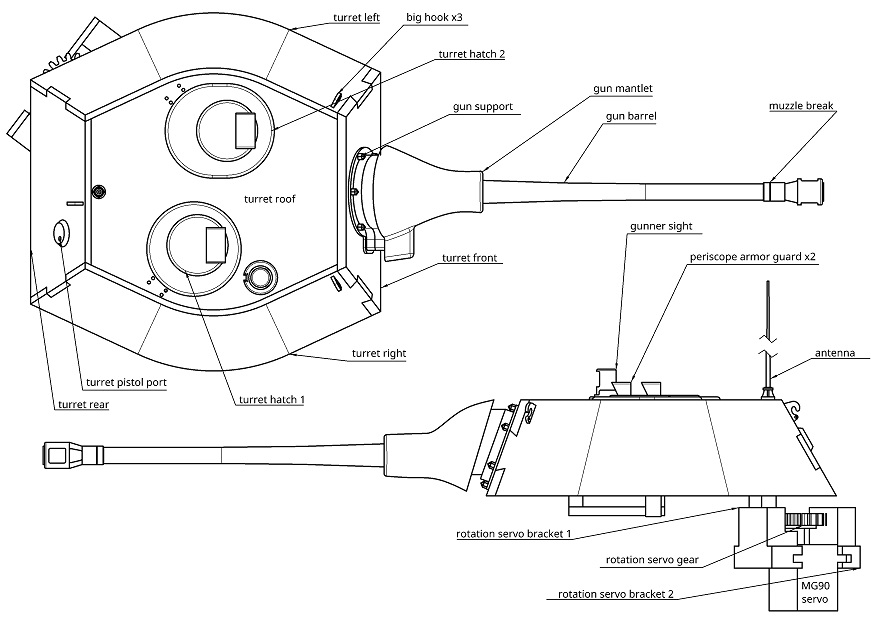

- turret assembly 1.jpg (108.97 KiB) Viewed 1025 times

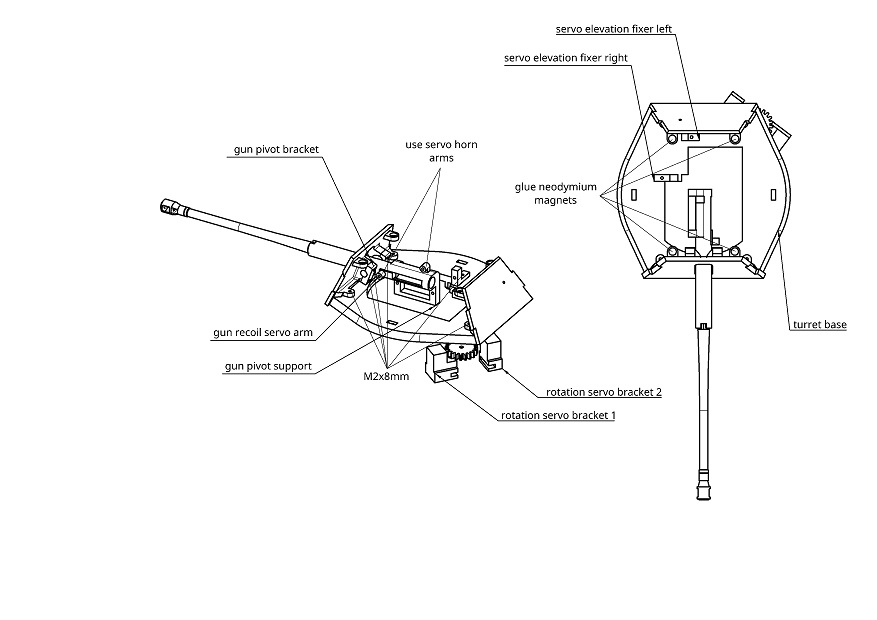

- turret assembly 2.jpg (65.22 KiB) Viewed 1025 times
Enjoy printing
Re: VK 16.02 Leopard
Posted: Fri Nov 25, 2022 8:08 am
by jee
great, will have a look later in the evening
