Fender-less Tiger I H/L
- jarndice
- Colonel
- Posts: 8042
- Joined: Mon Sep 03, 2012 11:27 am
- Location: the mountains of hertfordshire
Re: Two fender-less Tigers
Shapeways is one source for the Tiger 1 Late Loaders hatch.
I think I am about to upset someone
- Ecam
- Warrant Officer 1st Class
- Posts: 1562
- Joined: Sun Jul 13, 2014 6:30 pm
- Location: Lake of the Ozarks, USA
Fender-less Tiger I
Thanks Jarndice! First go at German armor, still have a ton to learn.
Last edited by Ecam on Fri May 24, 2024 7:17 pm, edited 1 time in total.
"Don't believe everything you see on the internet" - George S. Patton
Eric
Eric
- Ecam
- Warrant Officer 1st Class
- Posts: 1562
- Joined: Sun Jul 13, 2014 6:30 pm
- Location: Lake of the Ozarks, USA
Fender-less Tiger I

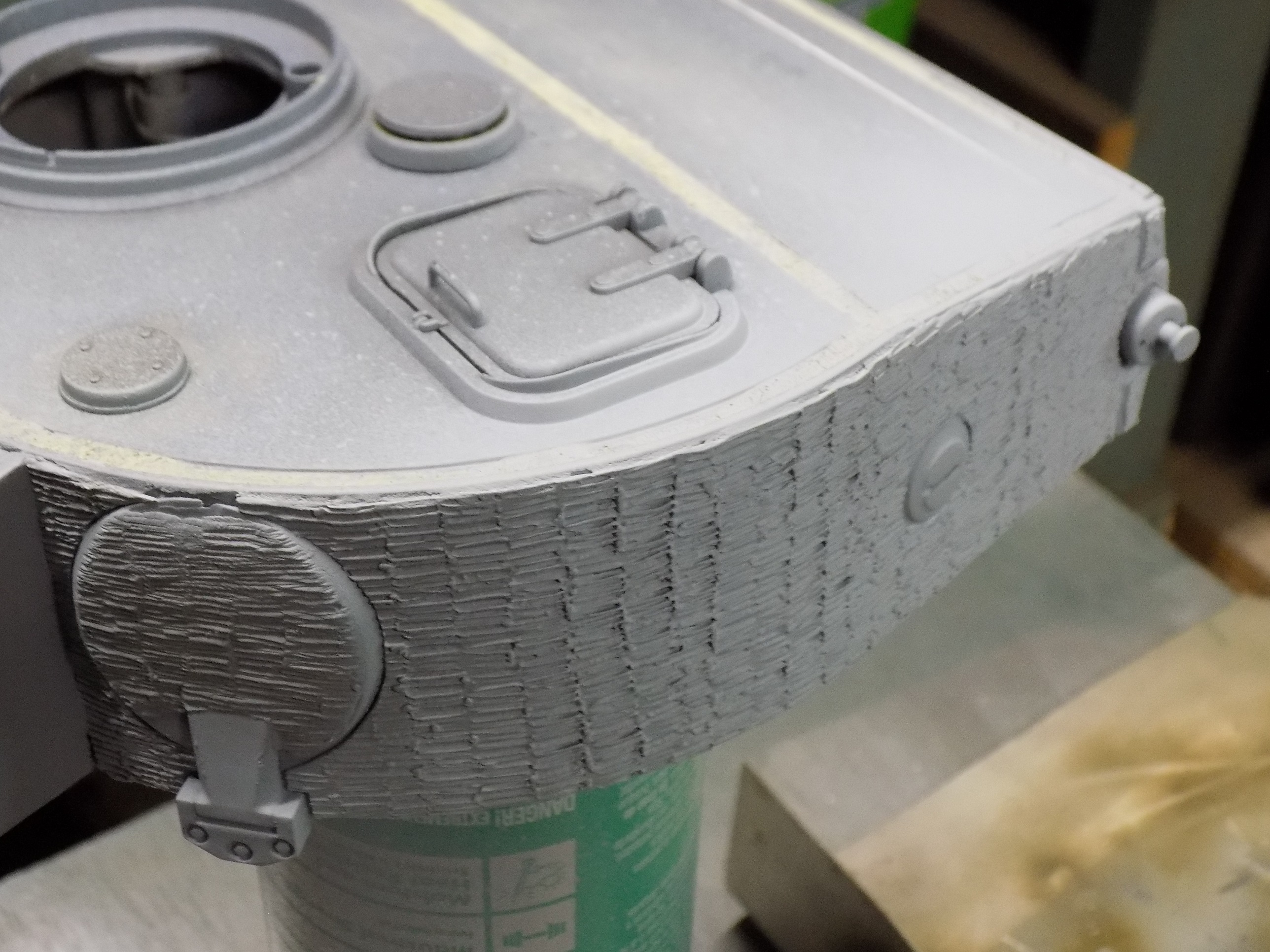

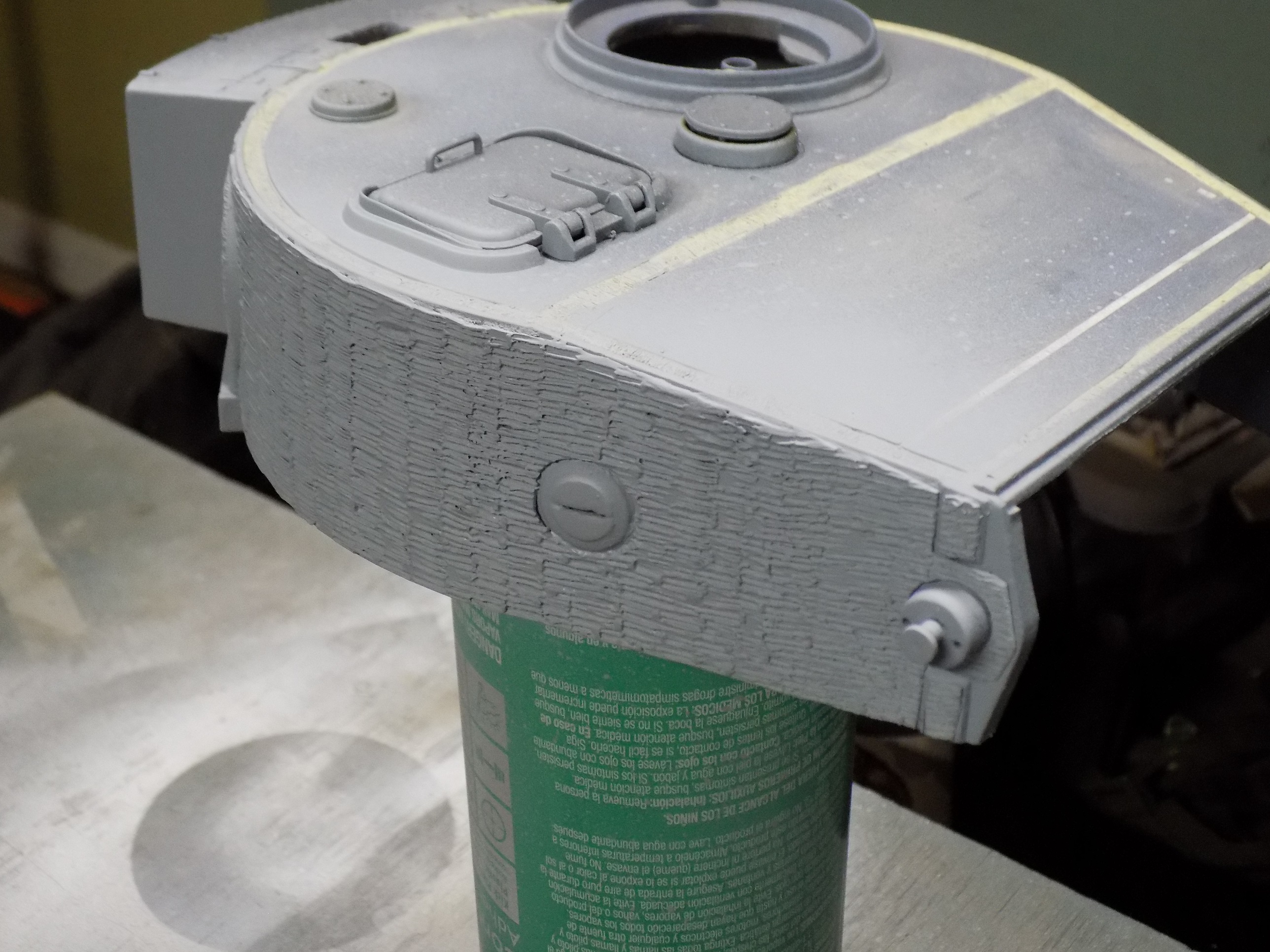

Looking for honest opinions. Passable for a first time zimmerit job? Don't worry, no one nearby to see me sob.
Last edited by Ecam on Fri May 24, 2024 7:17 pm, edited 1 time in total.
"Don't believe everything you see on the internet" - George S. Patton
Eric
Eric
Re: Two fender-less Tigers
Looks good that!
- HERMAN BIX
- Brigadier
- Posts: 10411
- Joined: Sun Jan 12, 2014 12:15 am
- Location: Gold Coast,Australia
Re: Two fender-less Tigers
Mighty good I reckon
HL JAGDPANTHER,HL TIGER 1,HL PzIII MUNITIONSCHLEPPER, HL KT OCTOPUS,HL PANTHER ZU-FUSS,HL STuG III,HL T34/85 BEDSPRING,
HL PZIV MALTA,MATORRO JAGDTIGER,HL F05 TIGER,TAMIYA KT,HL PANTHERDOZER,HL EARLY PANTHER G,TAIGEN/RAMINATOR T34/76,
HL AN-BRI-RAM SU-85
HL PZIV MALTA,MATORRO JAGDTIGER,HL F05 TIGER,TAMIYA KT,HL PANTHERDOZER,HL EARLY PANTHER G,TAIGEN/RAMINATOR T34/76,
HL AN-BRI-RAM SU-85
Re: Two fender-less Tigers
I only hope my zimmerit will come out as good as yours for my mid war build.
Nice work Eric
Nice work Eric
"Charlie don't surf"- Lt. Col. Bill Kilgore
- Ecam
- Warrant Officer 1st Class
- Posts: 1562
- Joined: Sun Jul 13, 2014 6:30 pm
- Location: Lake of the Ozarks, USA
Fender-less Tiger I

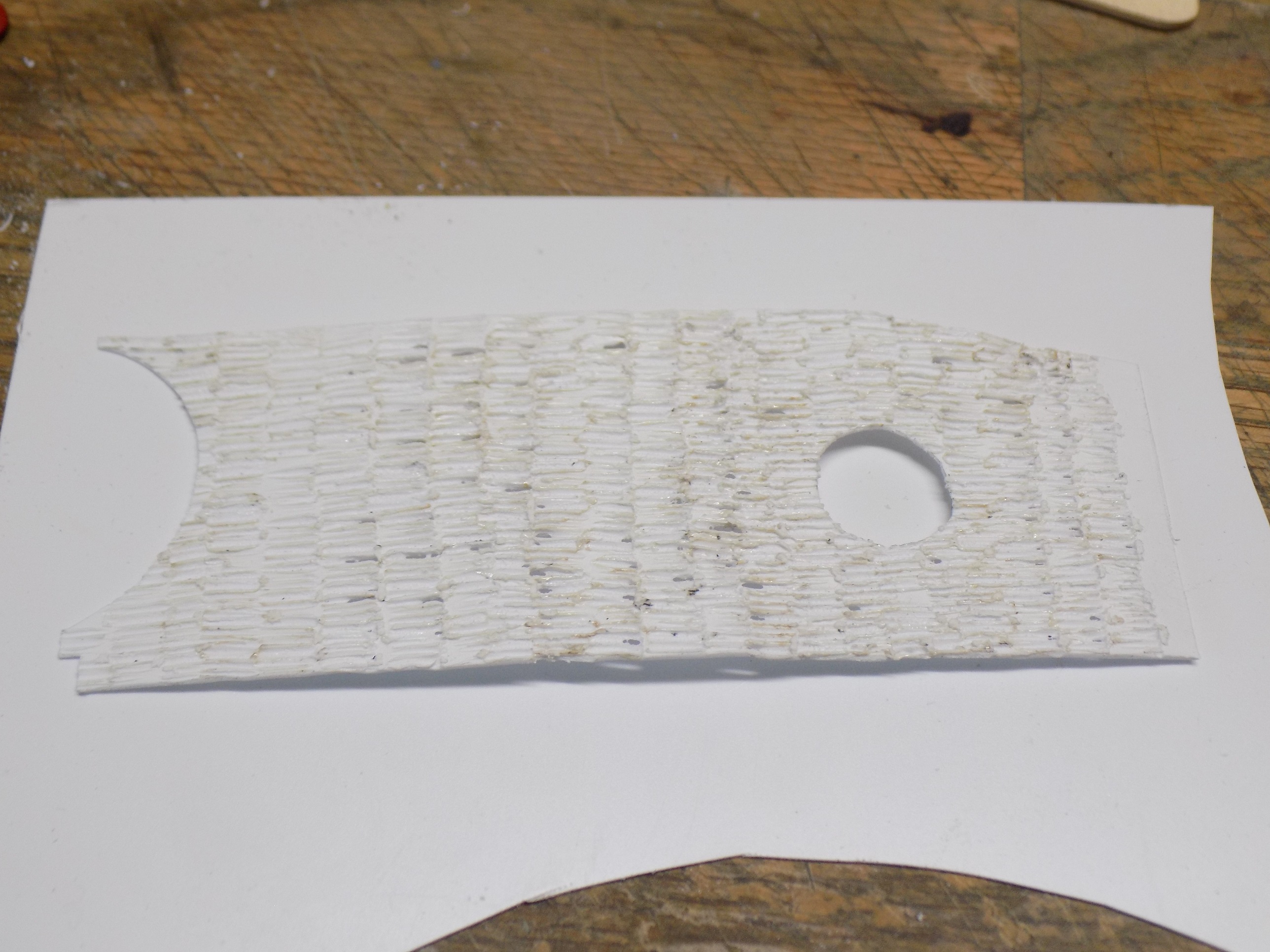

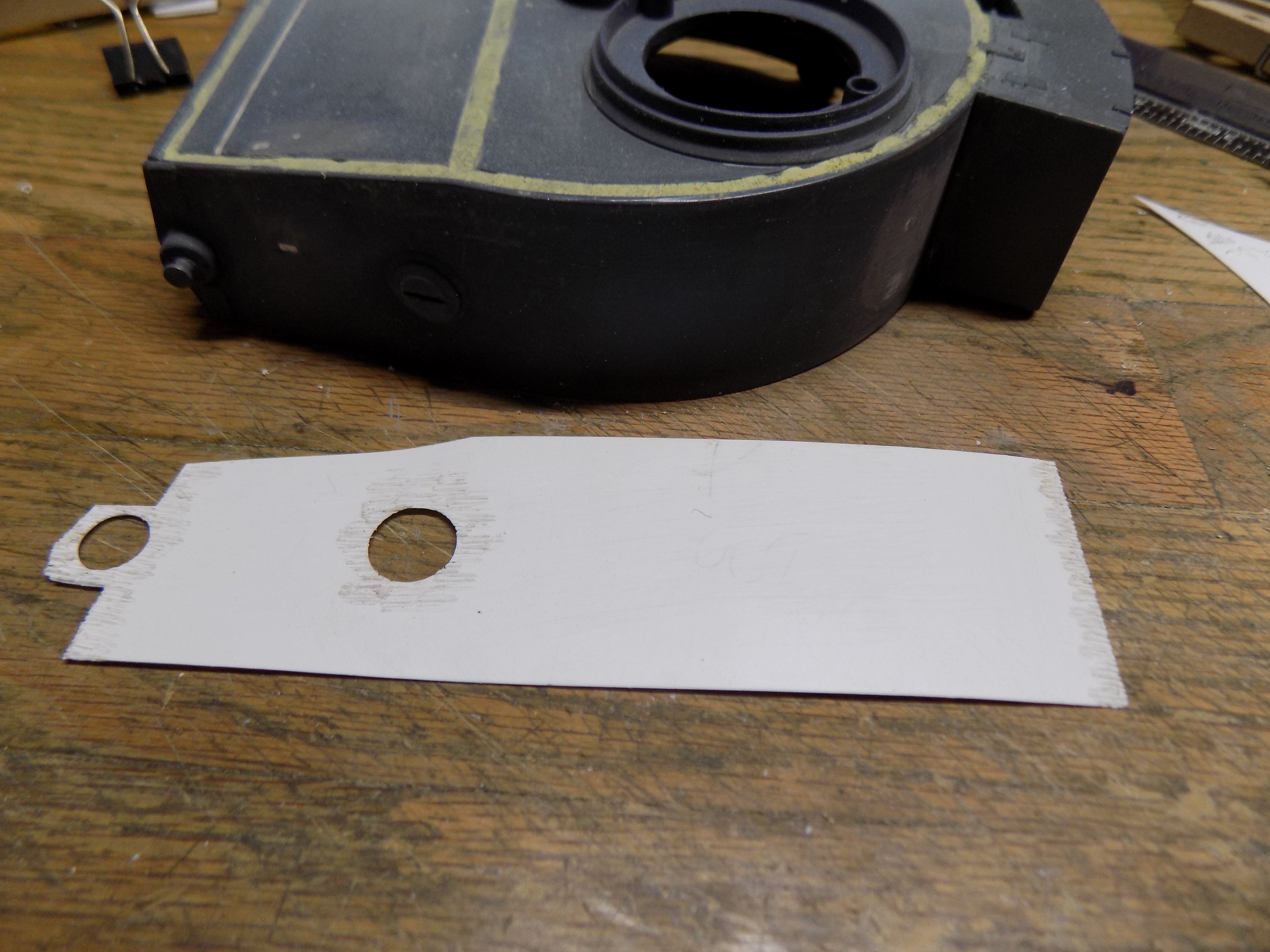

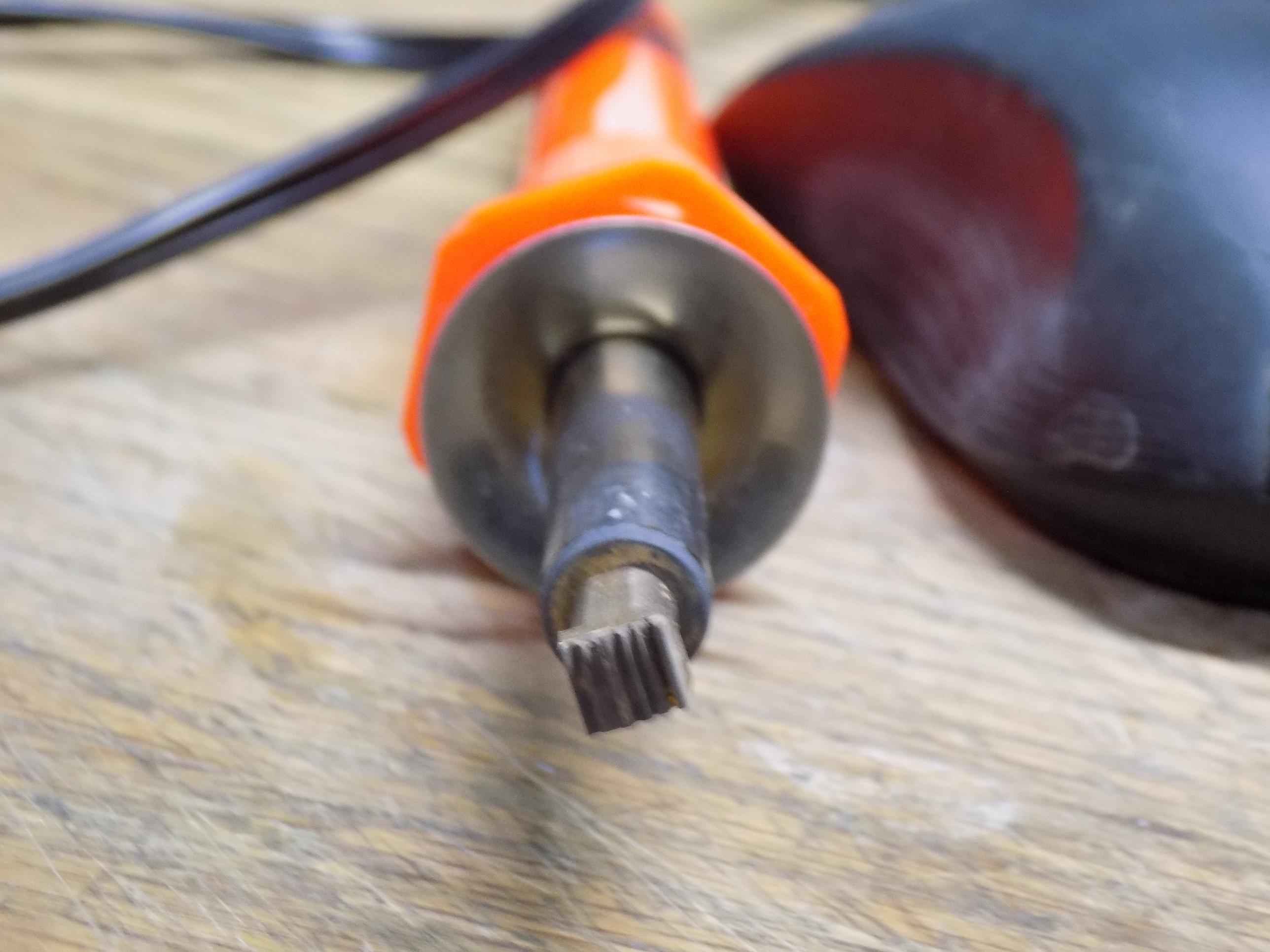

Well thanks gents (not crying). I will continue and show my Bix/Atak inspired technique. .020/.5mm card cut to fit, can be done on or off the tank but does warp some when zimmed off the tank. Used a round tip from a Weller branding(?) kit. Sanded off the pattern from one and squared it up. Razor saw and and small triangle shaped file to make my zim pattern. Sorry Bix the screw driver and heat source was too masochistic for my taste.

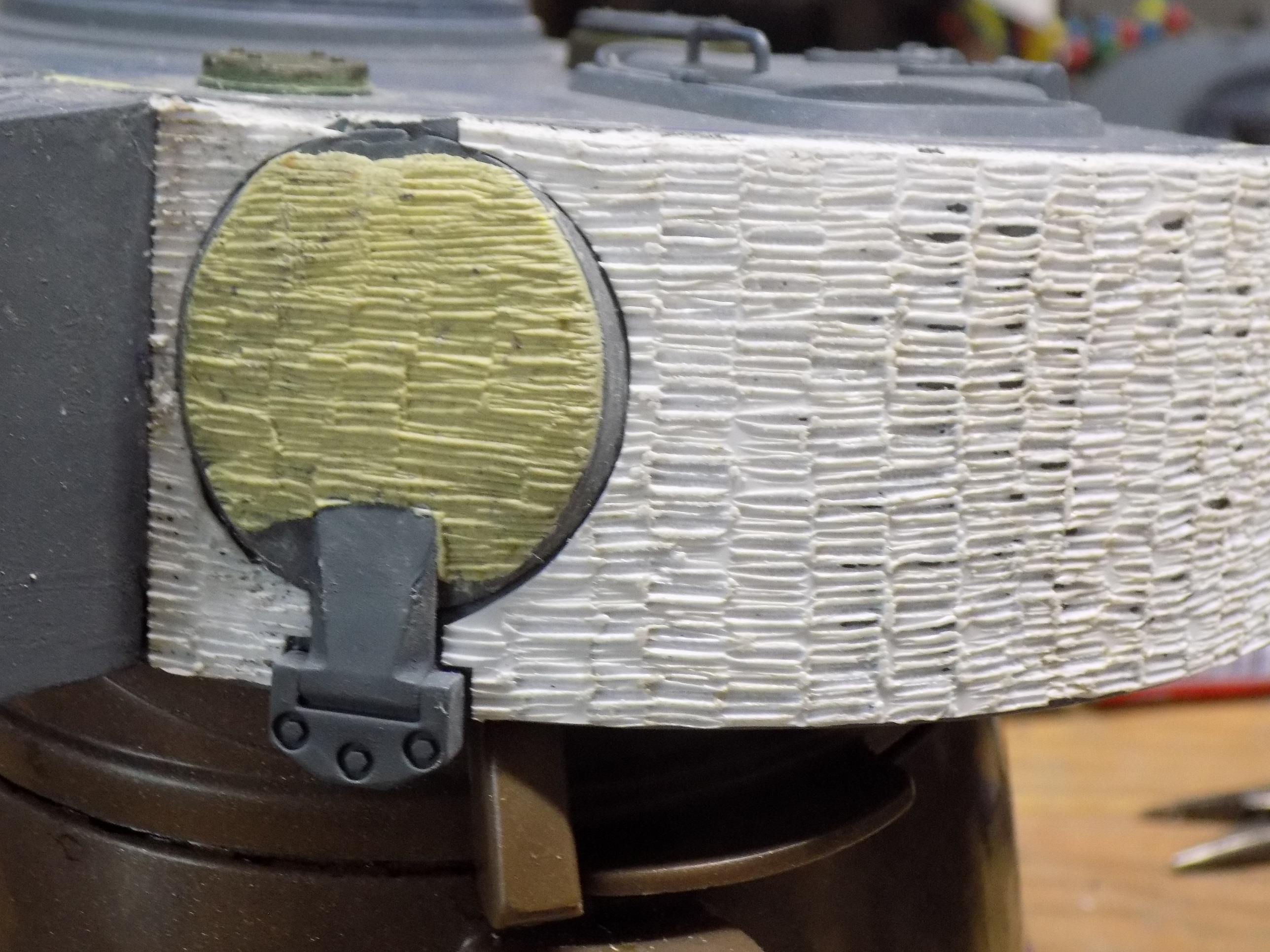

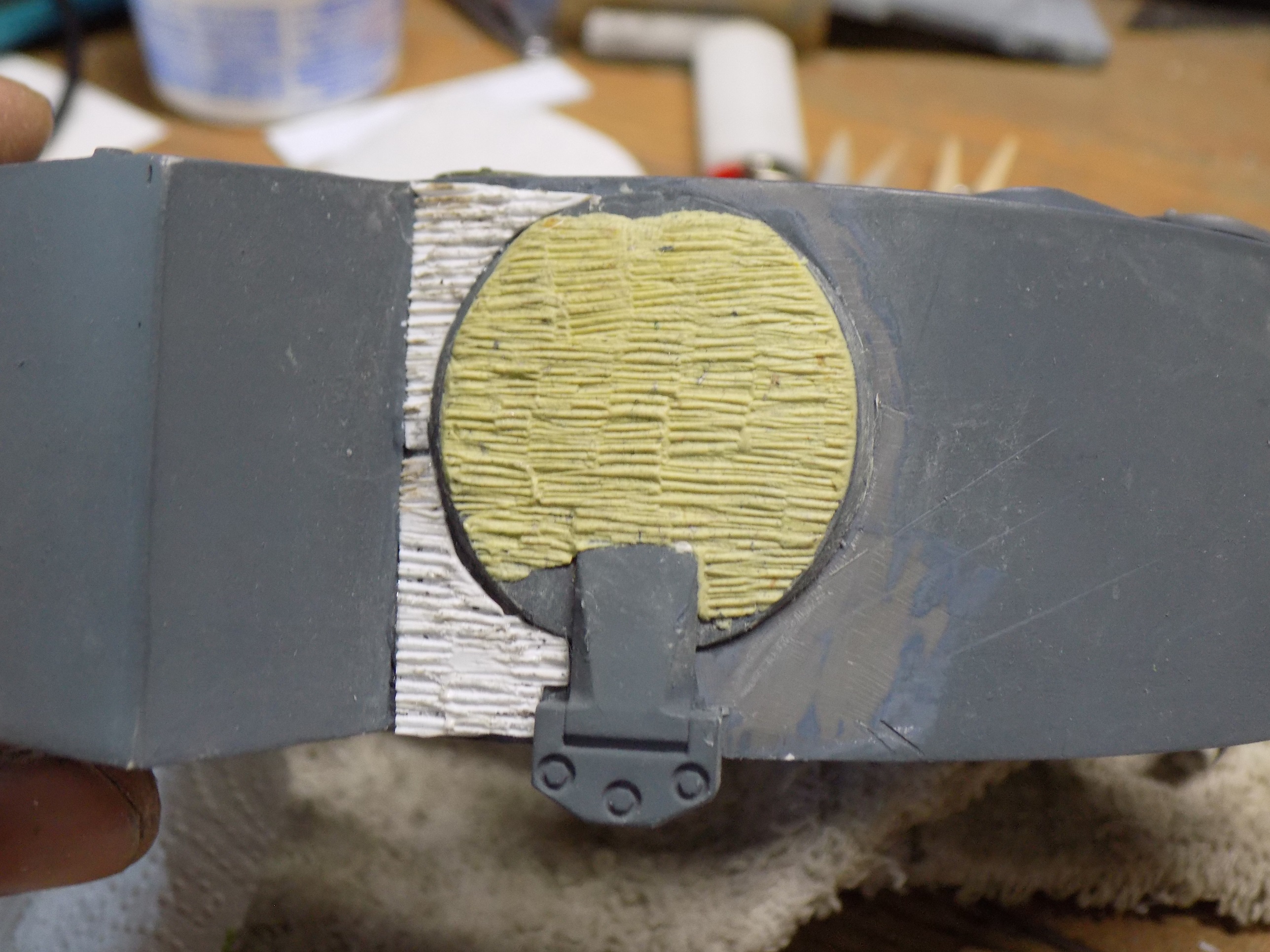

The hatch is miliput.

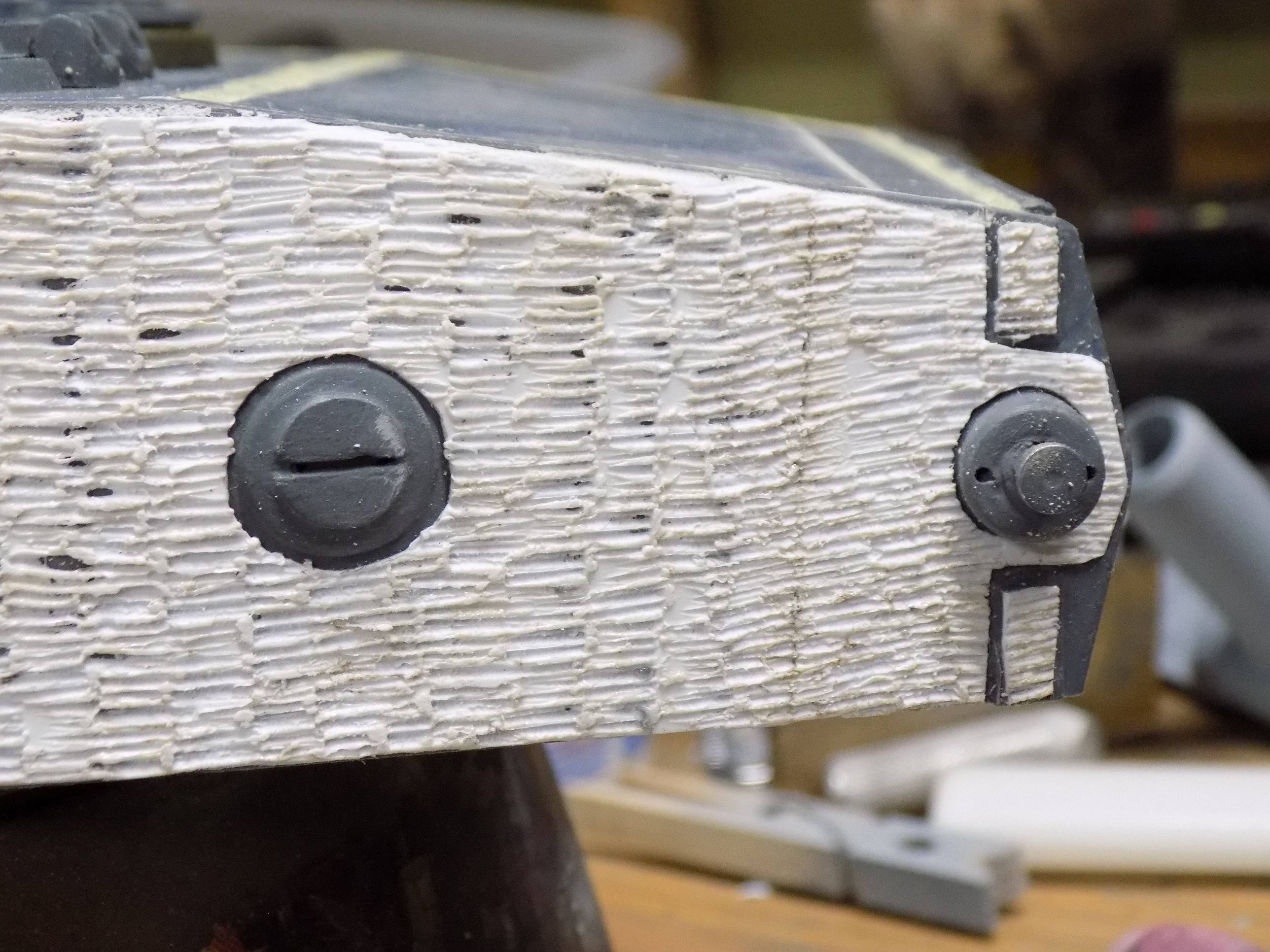

Careful when done off the tank, the heat has nowhere to go so it cuts deeper than when glued down. Pretty easy to fix when a mistake is made. And there is a splice between the view port and lifting lug. Melted the seam on the tank.
The hatch is miliput.
Careful when done off the tank, the heat has nowhere to go so it cuts deeper than when glued down. Pretty easy to fix when a mistake is made. And there is a splice between the view port and lifting lug. Melted the seam on the tank.
Last edited by Ecam on Fri May 24, 2024 7:18 pm, edited 1 time in total.
"Don't believe everything you see on the internet" - George S. Patton
Eric
Eric
Re: Two fender-less Tigers
That’s incredibly cool looking. Hats off to you.
- Ecam
- Warrant Officer 1st Class
- Posts: 1562
- Joined: Sun Jul 13, 2014 6:30 pm
- Location: Lake of the Ozarks, USA
Fender-less Tiger I

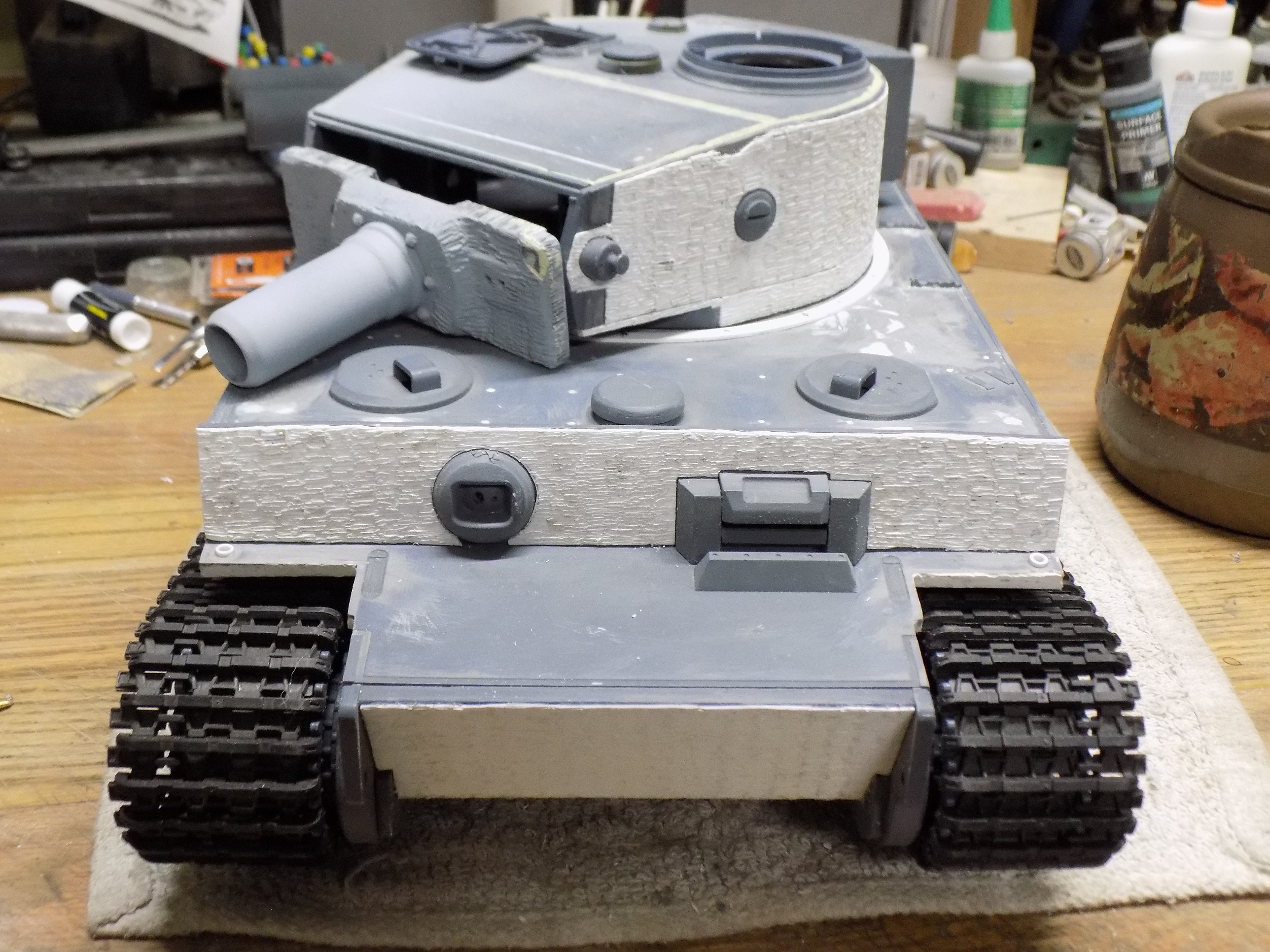

Ok that's enough for a Sunday evening. I'll work on the hull sides and rear panel tomorrow. Notice I only did the areas that would be difficult to emboss when glued on.
Last edited by Ecam on Fri May 24, 2024 7:18 pm, edited 1 time in total.
"Don't believe everything you see on the internet" - George S. Patton
Eric
Eric
- HERMAN BIX
- Brigadier
- Posts: 10411
- Joined: Sun Jan 12, 2014 12:15 am
- Location: Gold Coast,Australia
Re: Two fender-less Tigers
And I reckon Winches and cables that function are Masochistic!!!
Great job Mr Ecam, hardest part of the melting plastic method is to keep the heat up on the material so the plastic doesn't respond like Mozzarella cheese & string everywhere.
Great job Mr Ecam, hardest part of the melting plastic method is to keep the heat up on the material so the plastic doesn't respond like Mozzarella cheese & string everywhere.
