Looking forward to this one - a good base to start from at least.

Some QC issues which is not surprising given some cheap Chinese companies offerings.

[Model Builder 4]

Hi Louis,

If the tank board functions the same as the heng long version you may have to place a looped jumper plug into socket cn6 to activate the servo recoil, I had to do this on my heng long tk6.1s board to get it to work

Cheers,Lee.

[lmcq11]

Hi Louis,

If the tank board functions the same as the heng long version you may have to place a looped jumper plug into socket cn6 to activate the servo recoil, I had to do this on my heng long tk6.1s board to get it to work

Cheers,Lee.

EUREKA !!

Thank you very much Lee

Louis

[Model Builder 4]

Glad it worked for you Louis

Cheers,Lee.

[lmcq11]

Hi everyone,

The build is starting.

First task is to strip everything on the hull and turret except two hatches that are likely to remain as is.

1/16 RC USMC M-60A1 US tank with ERA - Build

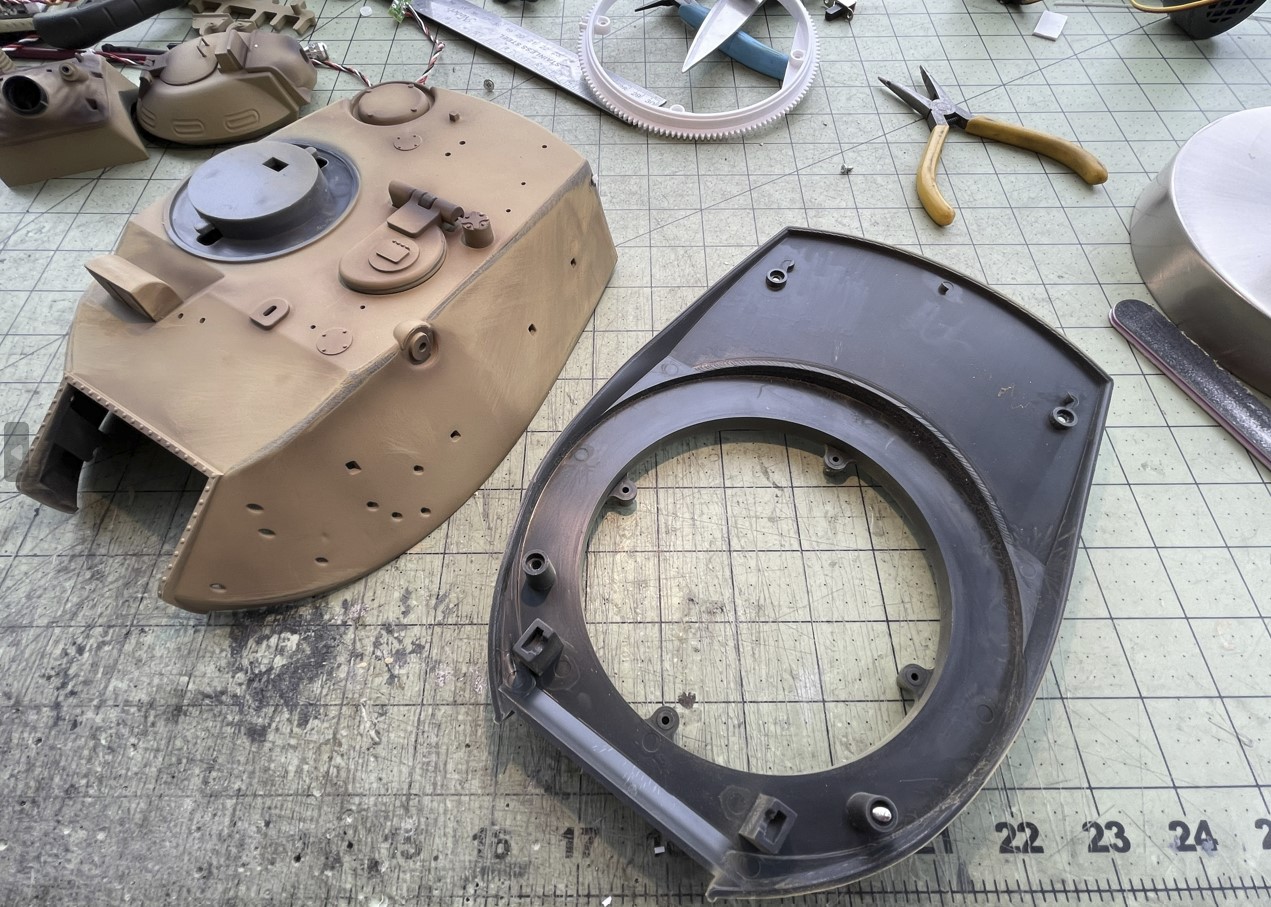

Screenshot 1.jpg (258.13 KiB) Viewed 1027 times

1/16 RC USMC M-60A1 US tank with ERA - Build

Screenshot 2 .jpg (342.17 KiB) Viewed 1027 times

Where to start... I usually would start with the main gun but since i had earlier today some issue to resolve with the recoil servo, i decided to do something more cosmetic, the rear turret basket.

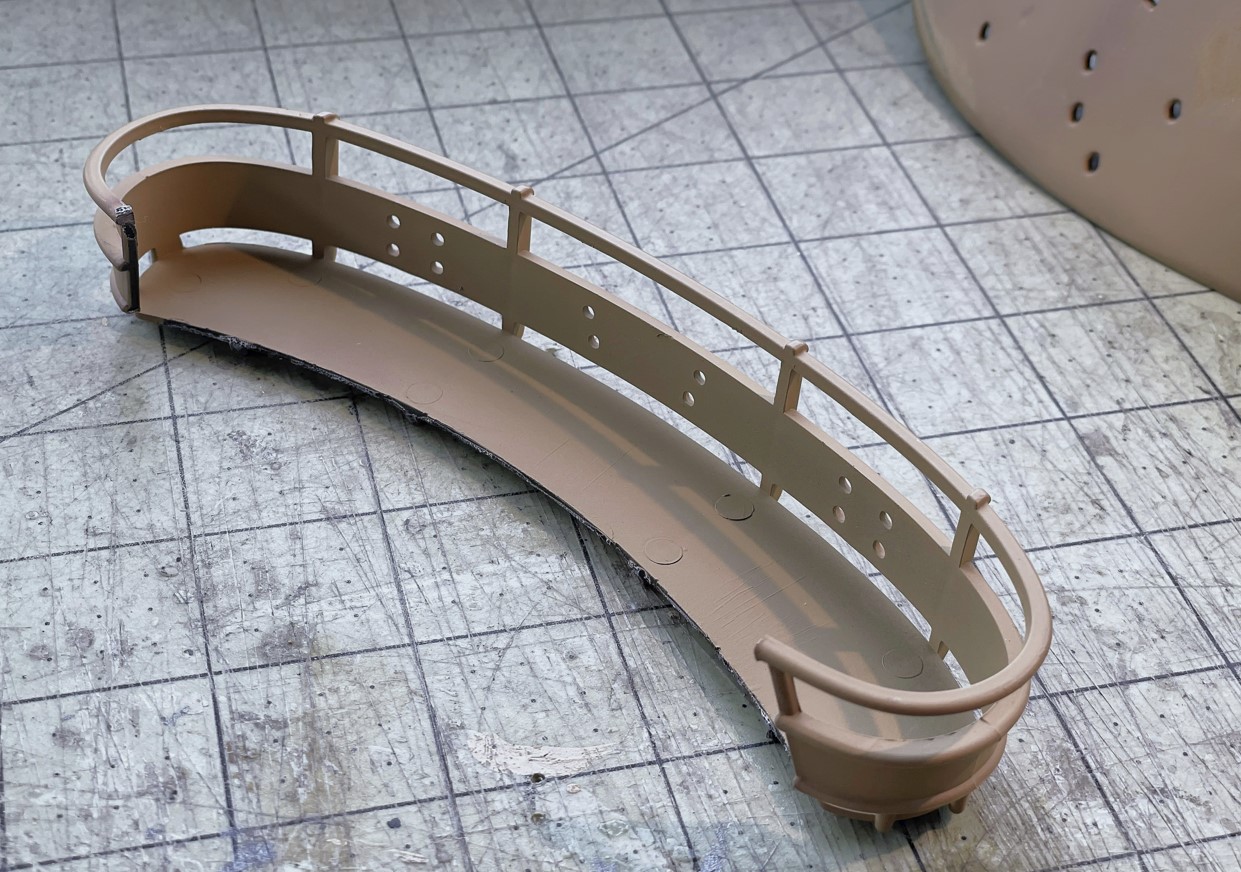

As shown in the pictures below, the rear basket is composed of vertical supports holding metal bars. There is a lozenge pattern metal mesh at the bottom and on the lower wall. There are also two jerrycans holders, which i assume would contain water jerrycans in a desert environment.

1/16 RC USMC M-60A1 US tank with ERA - Build

Screenshot 4.jpg (193.16 KiB) Viewed 1027 times

1/16 RC USMC M-60A1 US tank with ERA - Build

Screenshot 5.jpg (268.68 KiB) Viewed 1027 times

The kit part is accurate in size but the mesh has been simplified as flat plates and does not look too good. As this is a highly visible item, its worth spending a few hours to improve. The part is actually a diamond in the rough, it need some carving to bring out the part, and then add the mesh and the jerrycans.

1/16 RC USMC M-60A1 US tank with ERA - Build

Screenshot 3.jpg (298.59 KiB) Viewed 1027 times

The hard work is done by a Dremel cutting disk, cutting the plastic close enough along the horizontal bars, while being careful not to cut or damage any bars or supports.

1/16 RC USMC M-60A1 US tank with ERA - Build

Screenshot 6.jpg (320.4 KiB) Viewed 1027 times

Then the part is slowly and manually cleaned up using a sharp blade and a nail file. Be aware you might lose a couple of fingers in the process.

1/16 RC USMC M-60A1 US tank with ERA - Build

Screenshot 7.jpg (271.91 KiB) Viewed 1027 times

After about 2 hours, the part is fully cleaned up, the bars were made rounder as much as possible, and made ready for the metal mesh. The bars could be made thinner but would be weaker. Replacing them with metal bars is a more complicated option that the end result might not look better.

1/16 RC USMC M-60A1 US tank with ERA - Build

Screenshot 8.jpg (329.17 KiB) Viewed 1027 times

I purchased lozenge pattern metal mesh a few years ago on Ebay for the Sheridan build. Looks like its aluminum. It is simpler to make a template first before cutting the complicated bottom.

1/16 RC USMC M-60A1 US tank with ERA - Build

Screenshot 9.jpg (412.62 KiB) Viewed 1027 times

Bottom mesh is superglued in place and the simpler side wall is cut. Those mesh are not easy to glue and patience is required.

1/16 RC USMC M-60A1 US tank with ERA - Build

Screenshot 10.jpg (140.47 KiB) Viewed 1027 times

Continuing on following post.

[lmcq11]

The supports for the jerrycan holders are made in plasticard and put on as seen on reference picture.

1/16 RC USMC M-60A1 US tank with ERA - Build

Screenshot 11.jpg (264.37 KiB) Viewed 1025 times

The jerrycans coming with the model (on the right) are very basic and the holder is not accurate. It is advantageous to replace them with better ones, such are the ones from SOL Model in resin on the left.

1/16 RC USMC M-60A1 US tank with ERA - Build

Screenshot 12.jpg (186.66 KiB) Viewed 1025 times

SOL model jerrycan are not expensive at all as they comes in a pack with Water and Fuel cans. They are extremely well detailed. Be aware you should not be using WW2 Jerrycans on modern tanks.

1/16 RC USMC M-60A1 US tank with ERA - Build

Screenshot 13.jpg (210.52 KiB) Viewed 1025 times

The 3D printed jerrycan holders are from Shapeways. I had to cut them as the original part on the right is too high and does not match the size of the ones on the M60.

1/16 RC USMC M-60A1 US tank with ERA - Build

Screenshot 14.jpg (187.06 KiB) Viewed 1025 times

Jerrycan holders are installed and looking good.

1/16 RC USMC M-60A1 US tank with ERA - Build

Screenshot 15.jpg (227.99 KiB) Viewed 1025 times

The metal mesh is looking good and a lot more accurate. Its not perfect as i could have spent more time representing two vertical cuts in the wall mesh behind the left Jerrycan but it was complicated enough to work with this mesh. There are risks in going overboard in detailing and it might not have looked good. The turret basket was done in about 5 hours of work. Everything is done as per a patience/risk/benefit analysis.

1/16 RC USMC M-60A1 US tank with ERA - Build

Screenshot 16.jpg (161.71 KiB) Viewed 1025 times

SOL model jerrycans fit perfectly inside the Shapeways holders. They will be glued inside the holders and the straps added only after painting.

1/16 RC USMC M-60A1 US tank with ERA - Build

Screenshot 17.jpg (283.66 KiB) Viewed 1025 times

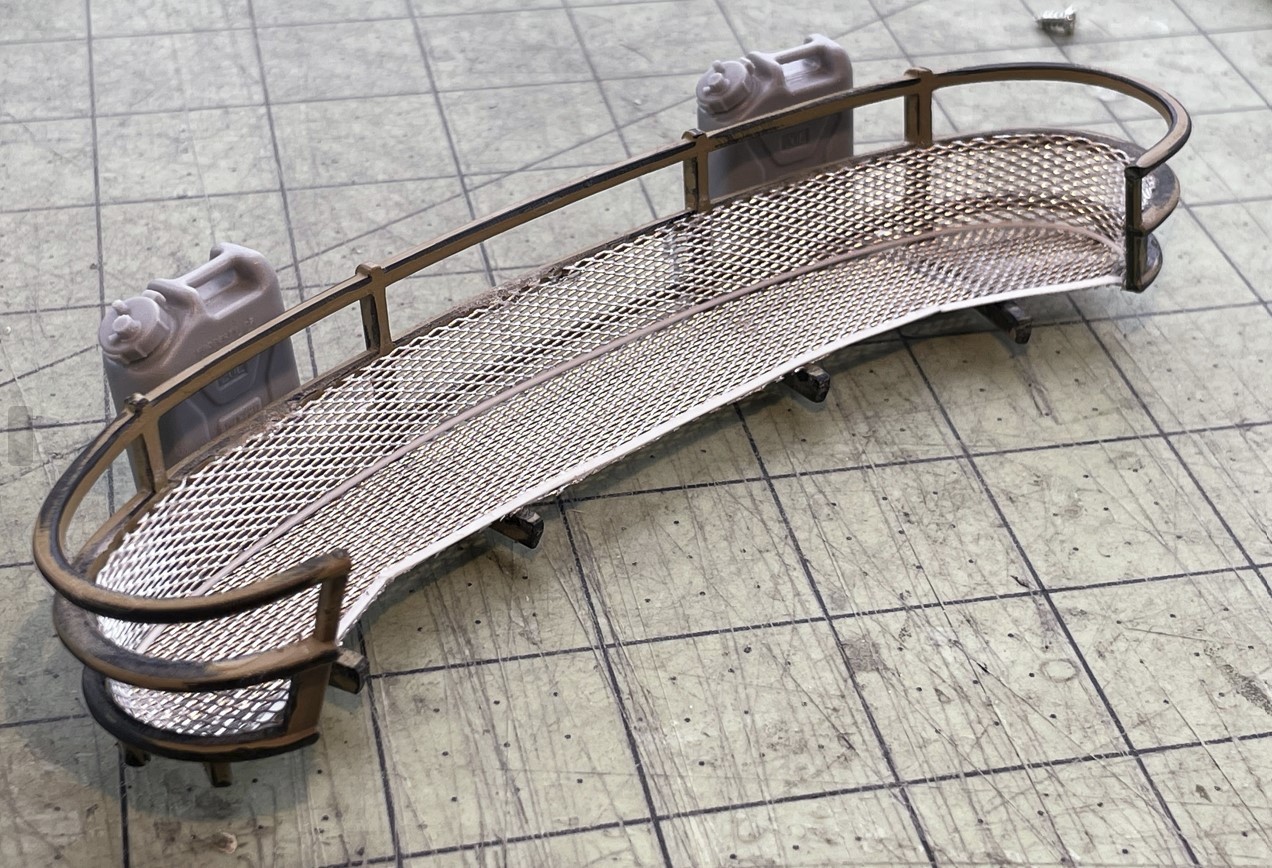

The finished turret basket. I put a 0.5mm rod at the bottom joint between the two mesh section to simulate the welding. The basket is put aside and will be installed on the turret towards the end of the build only.

1/16 RC USMC M-60A1 US tank with ERA - Build

Screenshot 18.jpg (372.79 KiB) Viewed 1025 times

Next step, the gun barrel and the custom recoil unit.

Regards, Louis
