Mato Metal Tiger
- doc watson
- Recruit
- Posts: 35
- Joined: Fri Aug 02, 2013 6:22 pm
Re: Mato Metal Tiger

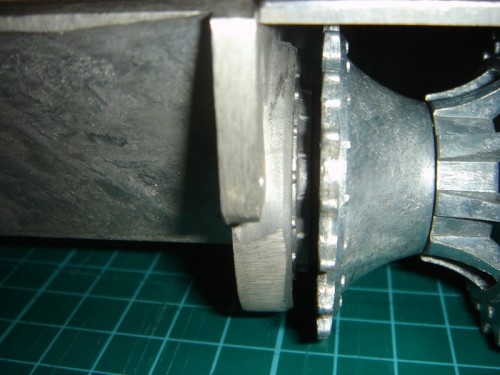

Hull suspension, incorrect I believe as the swing arms need to face in different directions and of course torsion arms were used. I have a lower metal asitam with torsion suspension set into a plastic hull so I have the parts to mod this but will get the thing running and review the suspension at a later date.
- doc watson
- Recruit
- Posts: 35
- Joined: Fri Aug 02, 2013 6:22 pm
Re: Mato Metal Tiger

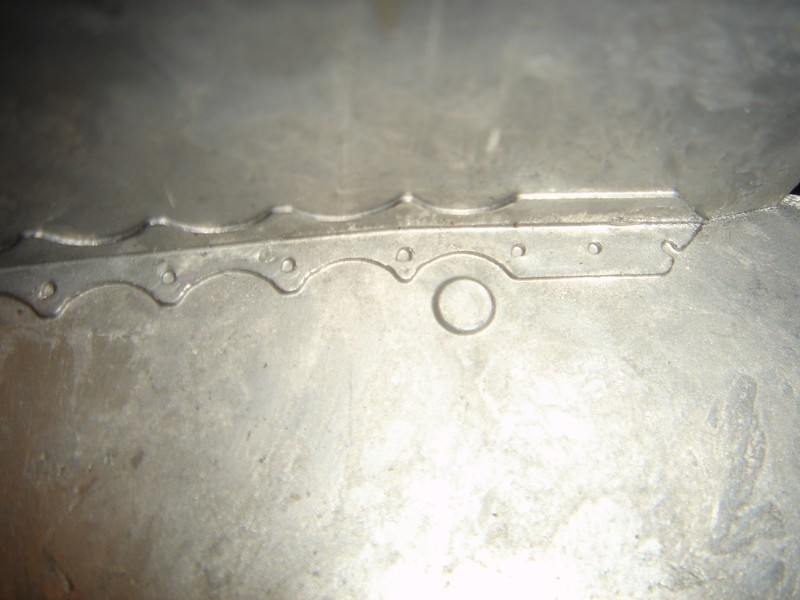

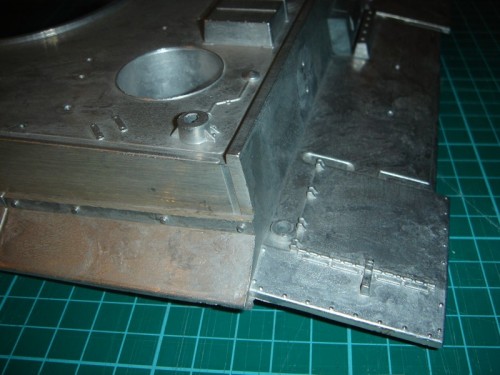

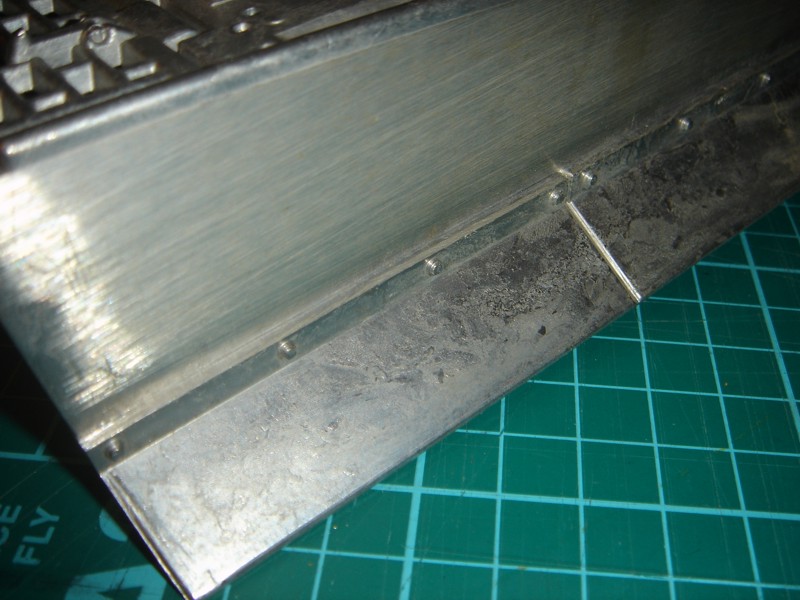

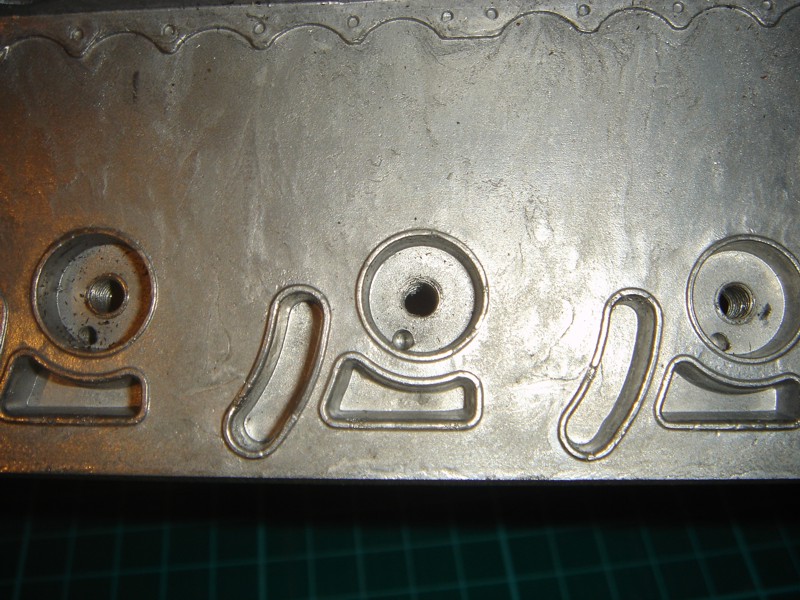

Lower hull/wheel cover plate detail....
- Attachments
-
- hull 3.jpg (78.54 KiB) Viewed 3541 times
- doc watson
- Recruit
- Posts: 35
- Joined: Fri Aug 02, 2013 6:22 pm
Re: Mato Metal Tiger

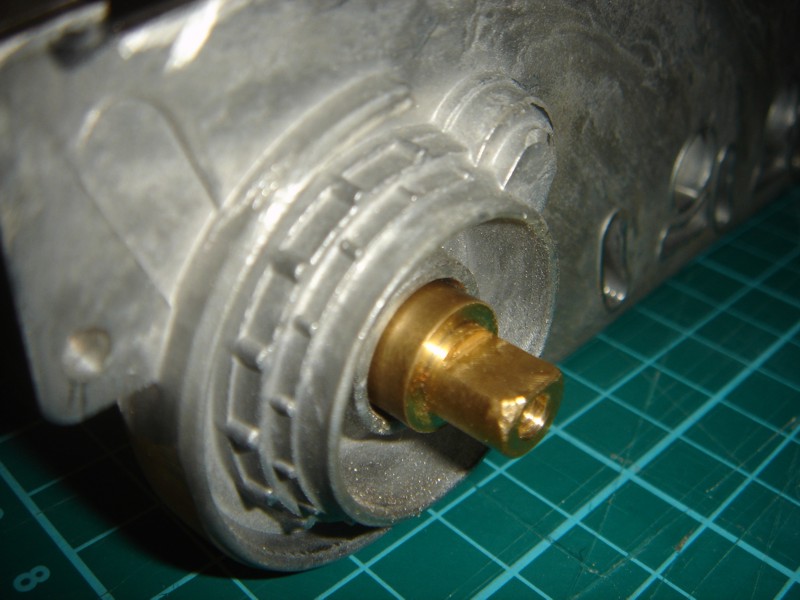

The hole for the drive shaft was to small for the brass sprocket connector... so I cant dry fit the motor
- doc watson
- Recruit
- Posts: 35
- Joined: Fri Aug 02, 2013 6:22 pm
Re: Mato Metal Tiger

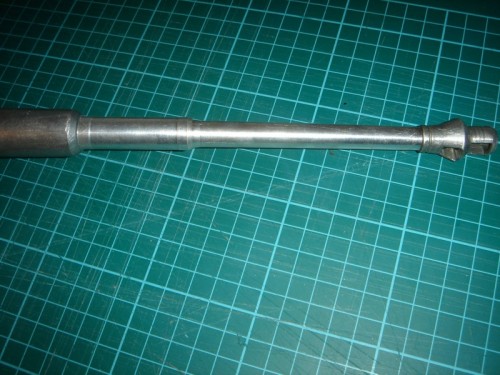

So I used my trusty tapered reamer..... I lucked out, the reamer went through the hole and increased the hole size just enough. There is space for a bearing in the hull to provide additional support to the drive sprockets but at the moment I think the motor/gearbox combination will be strong enough.
- doc watson
- Recruit
- Posts: 35
- Joined: Fri Aug 02, 2013 6:22 pm
Re: Mato Metal Tiger

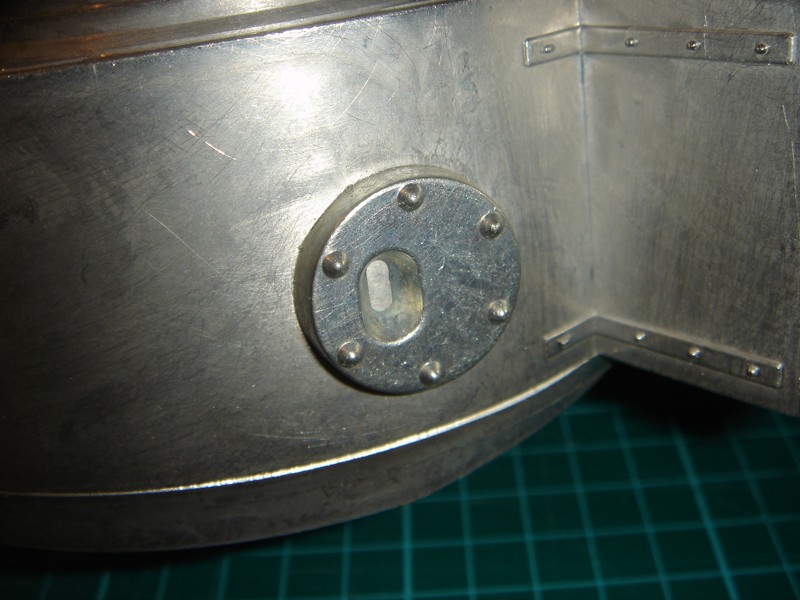

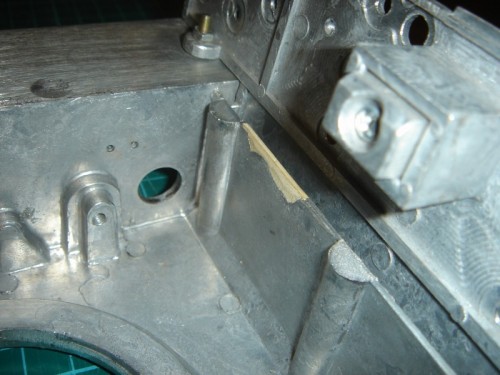

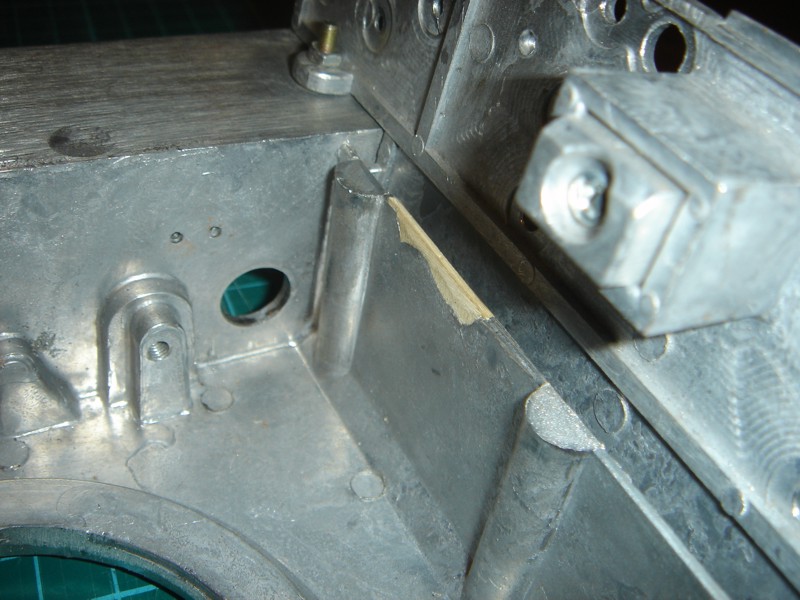

Here is a closeup of the reamed hole... the motor had the side L section aluminium mounting plates removed and was put into the hull and the brass bushes added.
- doc watson
- Recruit
- Posts: 35
- Joined: Fri Aug 02, 2013 6:22 pm
Re: Mato Metal Tiger

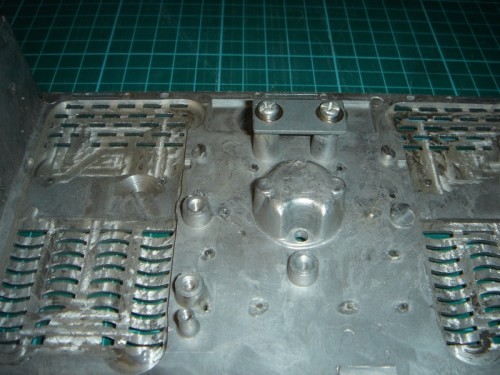

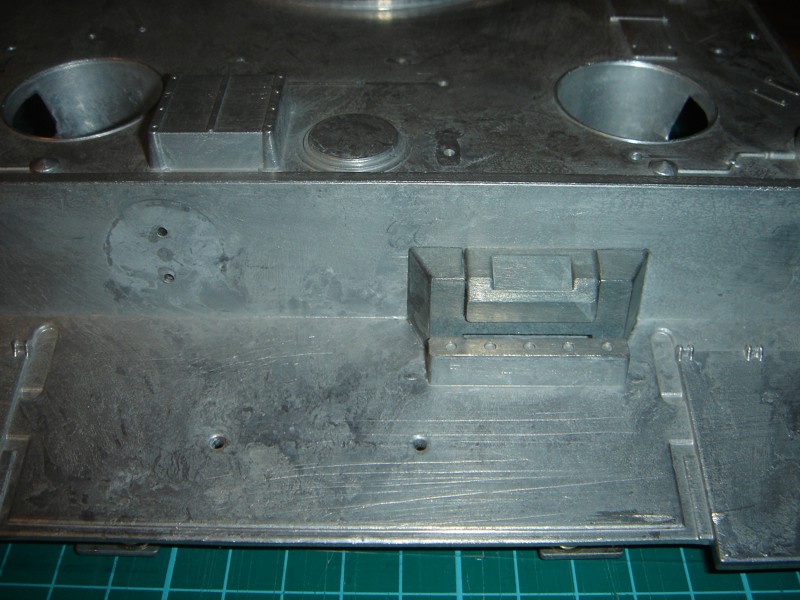

More shots of the dry fit
Re: Mato Metal Tiger
Where did you get the gearbox set up from and do you mind saying how much they cost?
Razor 1, Intercept Bogies Angels 2 5, Cleared Hot Engage, Fox 2 Fox 2
Semper In Faecibus Sumus Sole Profundum Variat
HL/Tamiya Sherman - Bulldog Turreted
Taigen Tiki Tiger 1
Torro KingTiger
E-25 Tank Destroyer
Semper In Faecibus Sumus Sole Profundum Variat
HL/Tamiya Sherman - Bulldog Turreted
Taigen Tiki Tiger 1
Torro KingTiger
E-25 Tank Destroyer
- doc watson
- Recruit
- Posts: 35
- Joined: Fri Aug 02, 2013 6:22 pm
Re: Mato Metal Tiger
The gearbox was from Roland at the following web site.
http://www.modellspiegel.com
The price was about £170 I think with postage. Excellent quality.
Edit... I just read the forum rules and do not or am not affiliated with Roland, I hope im not breaking any forum rules.
http://www.modellspiegel.com
The price was about £170 I think with postage. Excellent quality.
Edit... I just read the forum rules and do not or am not affiliated with Roland, I hope im not breaking any forum rules.
Last edited by doc watson on Fri Jun 26, 2015 11:00 pm, edited 1 time in total.
- doc watson
- Recruit
- Posts: 35
- Joined: Fri Aug 02, 2013 6:22 pm
Re: Mato Metal Tiger

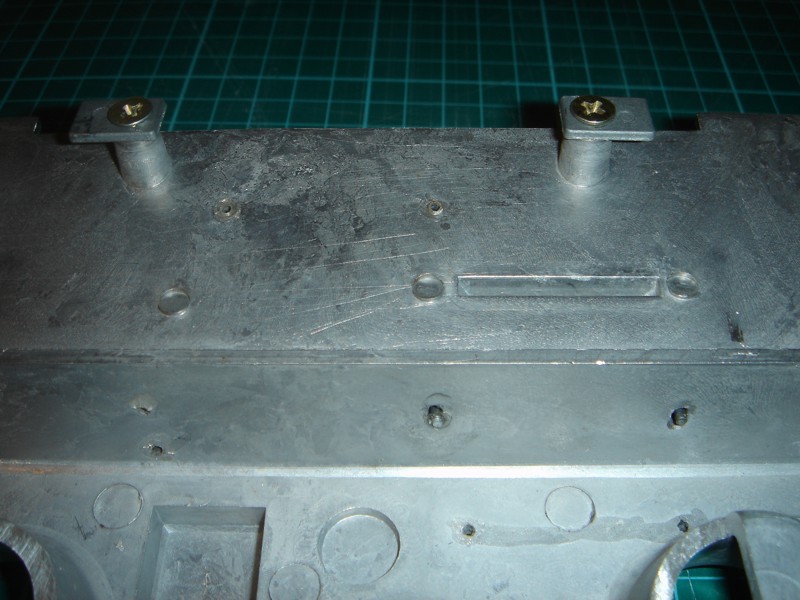

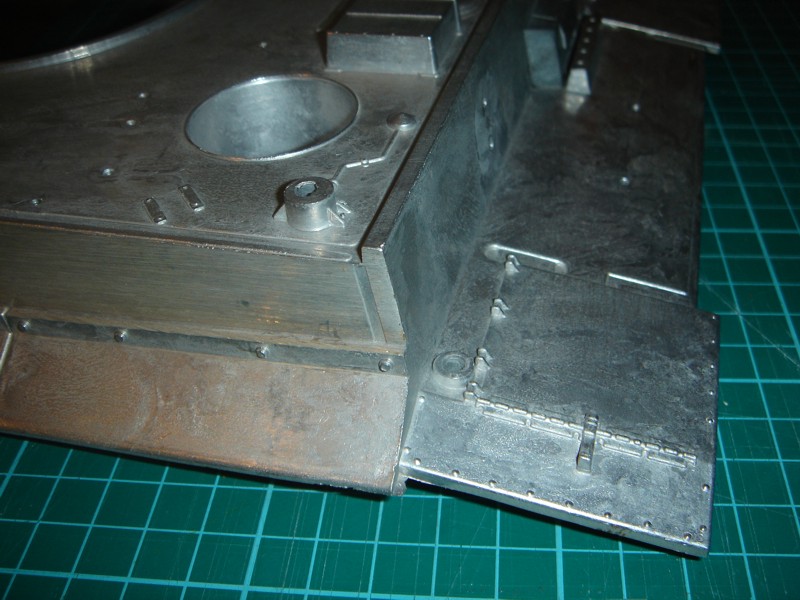

You said lots of pictures.... so.....
- doc watson
- Recruit
- Posts: 35
- Joined: Fri Aug 02, 2013 6:22 pm
Re: Mato Metal Tiger

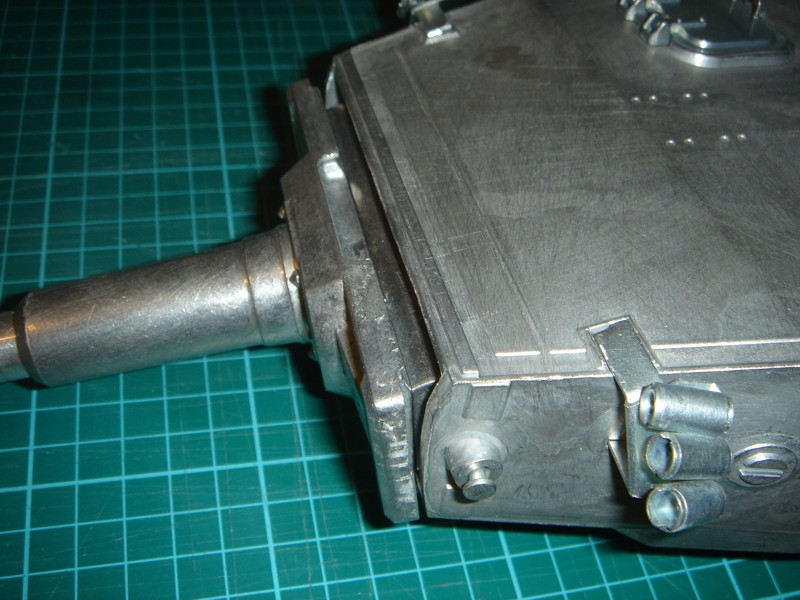

I cant stop its Tiger Tank Night!!!!!!!

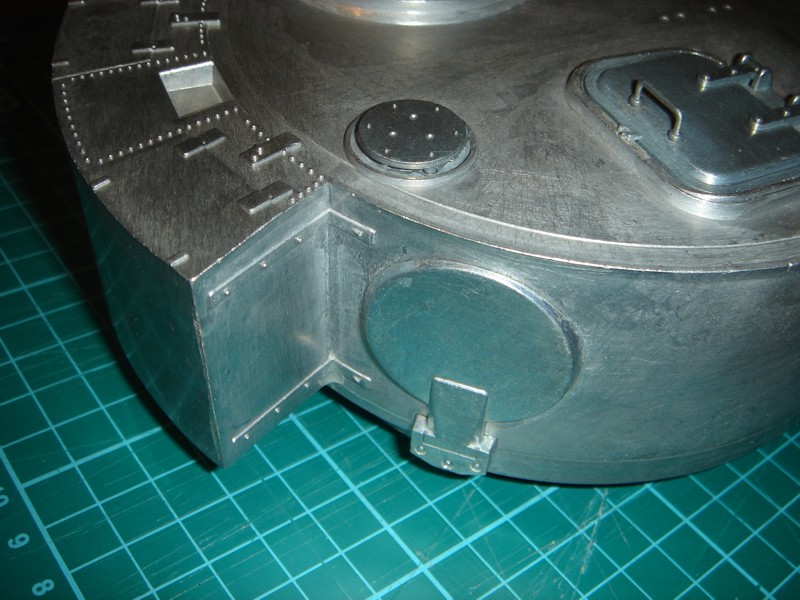

Turret...
Turret...
