Suspension sag
-
- Recruit
- Posts: 10
- Joined: Mon Aug 08, 2011 12:51 pm
Suspension sag

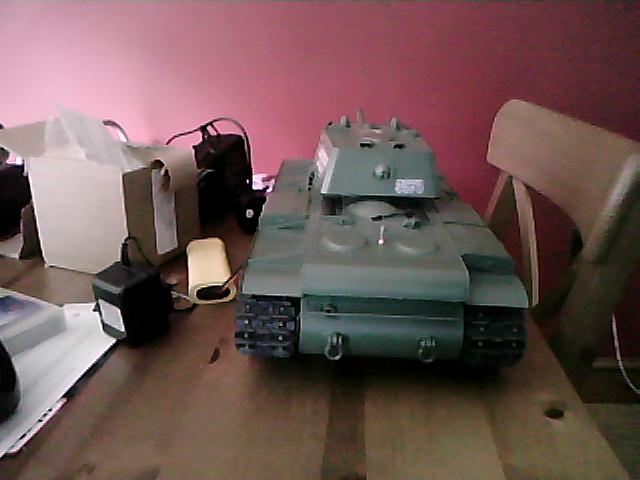

I've had three KV-1s over the last year or so and with each one the left side is lower than the right. Looking t it from behind, the track is lower and the tank is on an angle.I'll post a picture so you get a better idea. Just wondering if anyone knows a fix for this problem.
- Dietrich
- Staff Sergeant
- Posts: 973
- Joined: Thu Aug 13, 2009 10:29 am
- Location: England and Aquitaine,France
Re: Suspension sag
Hi Kiplin1995, :~
I had a problem with my Tiger 1 so I altered the springs. Unfortunately I did not document it ............BUT.....Here is a KV1 Thread that shows exactly what to do...
http://www.rctankwarfare.co.uk/forums/v ... kv1#p71684" onclick="window.open(this.href);return false;
Its the 12th post down on Page 2.
Bascically it involves figuring out which way the spring is 'Wound up' and then drilling another hole 90 degrees further round and then moving the stationary anchor part of the spring to this hole and then refitting the suspension arms, this adds more tension to the spring and so it pushes down harder and will raise the tank.
I hope that this helps
Alb.
I had a problem with my Tiger 1 so I altered the springs. Unfortunately I did not document it ............BUT.....Here is a KV1 Thread that shows exactly what to do...
http://www.rctankwarfare.co.uk/forums/v ... kv1#p71684" onclick="window.open(this.href);return false;
Its the 12th post down on Page 2.
Bascically it involves figuring out which way the spring is 'Wound up' and then drilling another hole 90 degrees further round and then moving the stationary anchor part of the spring to this hole and then refitting the suspension arms, this adds more tension to the spring and so it pushes down harder and will raise the tank.
I hope that this helps
Alb.
Never Forget......
The Propaganda of the Victors....... becomes the History of the Vanquished
The Propaganda of the Victors....... becomes the History of the Vanquished
- Dietrich
- Staff Sergeant
- Posts: 973
- Joined: Thu Aug 13, 2009 10:29 am
- Location: England and Aquitaine,France
Re: Suspension sag
Hi,
OOps I just checked the link and it takes you to exactly the right part of the thread..so good luck with the modification.
Alb.
OOps I just checked the link and it takes you to exactly the right part of the thread..so good luck with the modification.
Alb.
Never Forget......
The Propaganda of the Victors....... becomes the History of the Vanquished
The Propaganda of the Victors....... becomes the History of the Vanquished
- blimp
- Sergeant
- Posts: 681
- Joined: Sat Dec 11, 2010 12:29 am
- Location: Watford , NW Londonistan . U.K.
Re: Suspension sag
A quick note fellas - you don't need to drill any extra holes in the KV , they're there already
to the bouncy room ! Yay !
-
- Recruit
- Posts: 10
- Joined: Mon Aug 08, 2011 12:51 pm
Re: Suspension sag
Hey guys, thanks very much for the link, i'll take a look now!
Thanks again
Thanks again
