Building a Bevel gear Gear Box
Re: Building a Bevel gear Gear Box

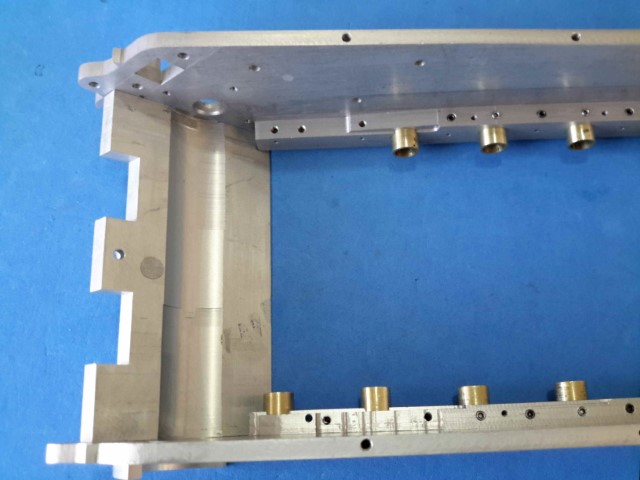

The empty lower hull
- Attachments
-
- IMG_20180814_100324 (Small).jpg (81.51 KiB) Viewed 4239 times
Re: Building a Bevel gear Gear Box

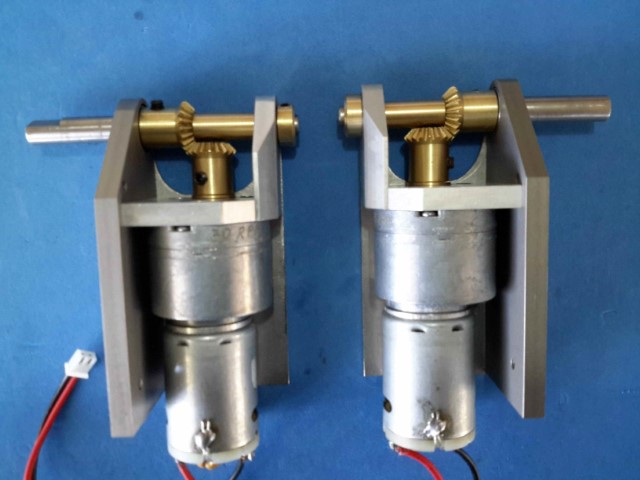

The finished gear boxes
- Attachments
-
- IMG_20180814_100229 (Small).jpg (84.86 KiB) Viewed 4238 times
Re: Building a Bevel gear Gear Box

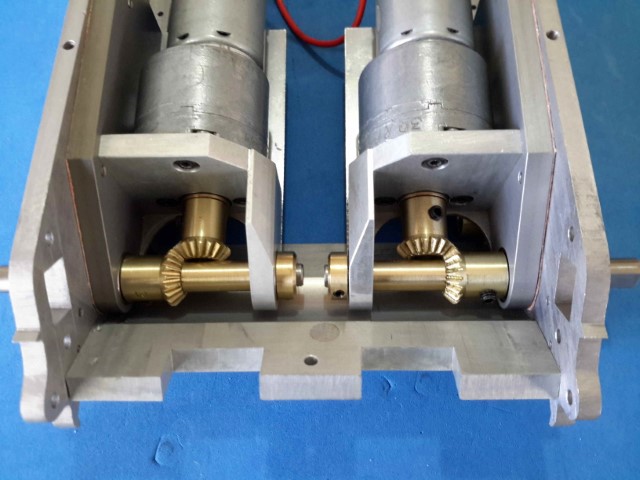

Gear boxes installed
- Attachments
-
- IMG_20180814_104043 (Small).jpg (99.29 KiB) Viewed 4237 times

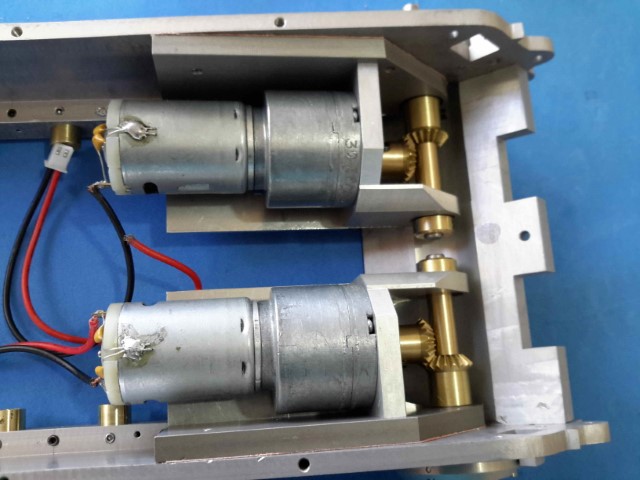

Re: Building a Bevel gear Gear Box
Another view
- Attachments
-
- IMG_20180814_104144 (Small).jpg (99.75 KiB) Viewed 4236 times
- Son of a gun-ner
- Lieutenant-Colonel
- Posts: 7083
- Joined: Sun May 07, 2017 8:49 pm
- Location: Surrey UK
Re: Building a Bevel gear Gear Box
Bravo Walter
Mick.
Mick.
Mick - The grit in the underpants of life!
And always happy to spare the bytes
TOTM needs YOU support YOUR TOTM competition, I'm doing my part, are YOU?
And always happy to spare the bytes
TOTM needs YOU support YOUR TOTM competition, I'm doing my part, are YOU?
- Kostyanchik
- Private
- Posts: 63
- Joined: Wed Dec 13, 2017 3:37 pm
- Location: Russia, Moscow
Re: Building a Bevel gear Gear Box
Excellent performance, Walter! Your results are amazing.
Based on personal experience and preference in speed of movement of a tank model, I think that the gear ratio 60:1 and Johnson 395 engine with 10 anchors (12 volts / 11200 revolutions per minute) will allow you to achieve optimum speed and maneuverability of the tank.
If you decide to use motors at a voltage of 7.2 V, it is better to use a gearbox with a gear ratio of 30: 1.
Based on personal experience and preference in speed of movement of a tank model, I think that the gear ratio 60:1 and Johnson 395 engine with 10 anchors (12 volts / 11200 revolutions per minute) will allow you to achieve optimum speed and maneuverability of the tank.
If you decide to use motors at a voltage of 7.2 V, it is better to use a gearbox with a gear ratio of 30: 1.
using translator
Re: Building a Bevel gear Gear Box
Hi Kostyanchik,
I have two Johnson 395 motors on order. When they arrive that will open a new perspective on experimentation.
You mite be right those new motors with a gear ratio 60:1 could perform a lot better then the motors I used.
I am not sure what the max voltage on my TK-22 is, but I have a feeling it could be around 7,2 v
With the motors I used and my independent power supply I use for testing 7.2V and 30:1 gear ratio are most definitely to slow.
Regards Walter
I have two Johnson 395 motors on order. When they arrive that will open a new perspective on experimentation.
You mite be right those new motors with a gear ratio 60:1 could perform a lot better then the motors I used.
I am not sure what the max voltage on my TK-22 is, but I have a feeling it could be around 7,2 v
With the motors I used and my independent power supply I use for testing 7.2V and 30:1 gear ratio are most definitely to slow.
Regards Walter
